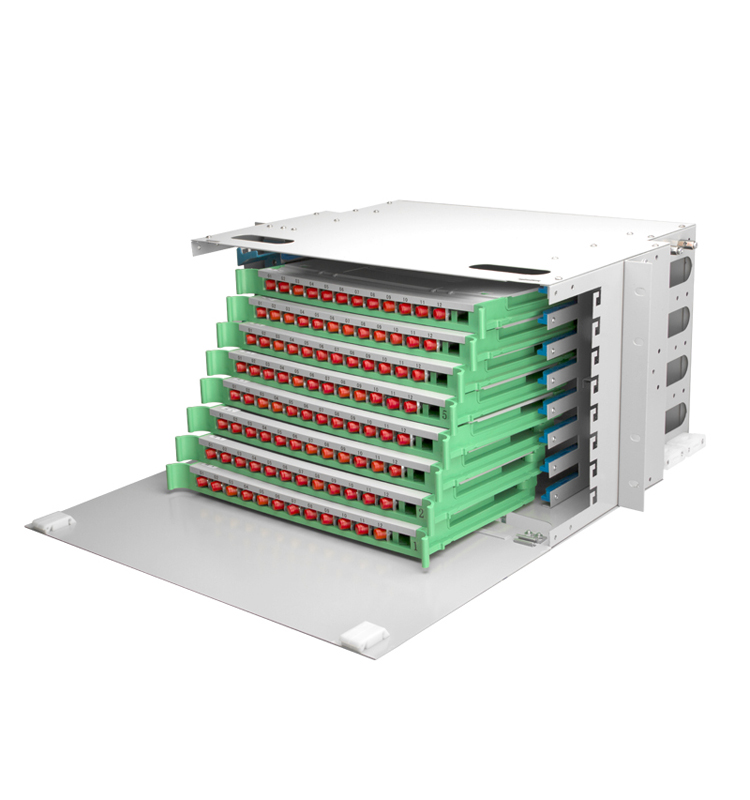

288Core ODF Rack Mount Fiber Optic Patch panel
288Core ODF Rack Mount Optical Distribution Frame Fiber Optic Patch panel
Product Description
The odf fiber panel is primarily used to connect and schedule optical fibers and optical cables. It is applicable to fiber intersections between an optical transmission network and optical transmission devices as well as between optical cables in an access networks.
- Place of Origin:CN;GUA
- Brand Name:Skylynn
- Model Number:288Core ODF
- Product name:ODF
- Adapter Type:LC,SC,FC,ST
- Warranty:3 Years
- Working Temperture:-40℃ to +60℃
- Weight:8kg~35kg
- Fiber Core:6~288 Core, customized
- ODF External Size:1U,2U,3U,4U etc.
- Material:Cold Rolled Steel
- Color:White, Black
- Splice Tray Capacity:24 Core
Applications
The product series are designed with different capacities to meet various network requirements of customers. Modular design and flexible configuration help ensure smooth network expansion and upgrade, while also simplifying operation and maintenance.
Features
- 19’ standard mounting, available for all kinds of rack and cabinet.
- Metal, static electric plastic sprayed. Neat appearance, reasonable structure.
- All are designed as modules; all operation could be done at the front side of the box.
- Flexible installation. Convenient for operation and maintenance.
- Easy for installation of inlay,convenient to expand capacity,obliquity of adapter is 30o
- Suitable for both ribbon and bunch fiber cables.
- Each splice trays can be clamped with 12FC, SC, ST, LC(Duplex) adapters.
- Plastic structure,legerity with perfect appearance
- Ensure the bend radius of patch cord and avoid laser burning eyes.
- Kinds of splicingand distribution mark, easy to make fusion and distribution record
Packing Information
| Type | Net size mm | Carton dimension/weight | No./carton pcs |
| ODF-B-24 | 483x300x2U | 500x350x550mm/24kg | 4 |
| ODF-B-48 | 483x300x3U | 500x350x540mm/24kg | 3 |
| ODF-B-72 | 483X300X4U | 500x350x460mm/21.1kg | 2 |
| ODF-B-96 | 483x300x5U | 500x350x460mm/28.9kg | 2 |
| ODF-B-144 | 483x300x7.5U | 500x350x460mm/34kg | 2 |
About Us
Faso Photonics Technology Limited Since 2007.
Faso Photonics Technology Limited is a professional manufacturer engaged in R & D, production and sales of optical fiber communication devces and ancilary prducts, ptical fiber patch panel, splicing enclosure etc.We have a complete and scientific quality management system. The company passed the certification of Bellcore,UL, ROHS, IS0 9001 standard system, strictly carries out 5S management, adopts the dust-free workshop, has advanced international equipment, and the qualfed rate of the products reaches 99.896. Companies in good faith, strength and quality of products recognized by the industry.

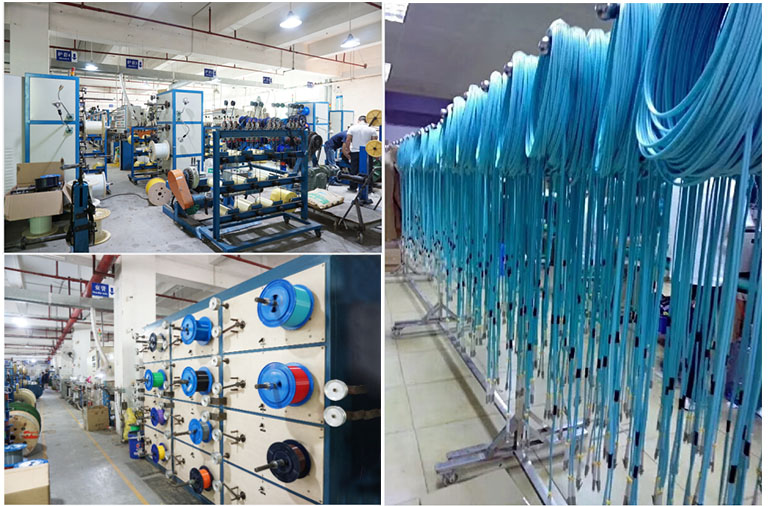

Manufacturing
We have majority of advanced equipment，ample space, high-tech public person, strict quality inspection which can provide a large number of high-quality products.
Testing
All products have passed professional tests in order to providing better quality guarentee.
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
FAQ
Q: Are you manufacturer?
A: Faso Photonics Technology Limited is a very professional manufacturer for fiber optic cable since 2007.
We can control your order from the first begining to the last.
Q: Why choose us?
A: Quality product (RoHs, CE FCC compliance): Competitive price: Custom made products:
1-20 years warranty: Fast delivery with bulk order: Intemnational shipping: ISO 9001 Certified factory.
Q: How can I get your price list?
A: Please offer us your request details and contact info. We will contact with you and pass our
quotation sheet to you.
Q: How can I get some samples?
A: We offer free samples for most of products. But you should pay the shipping cost.
Q: What about delivery time?
A: The delivery of most product is 3-7days, some few product is 7- 10 days.
