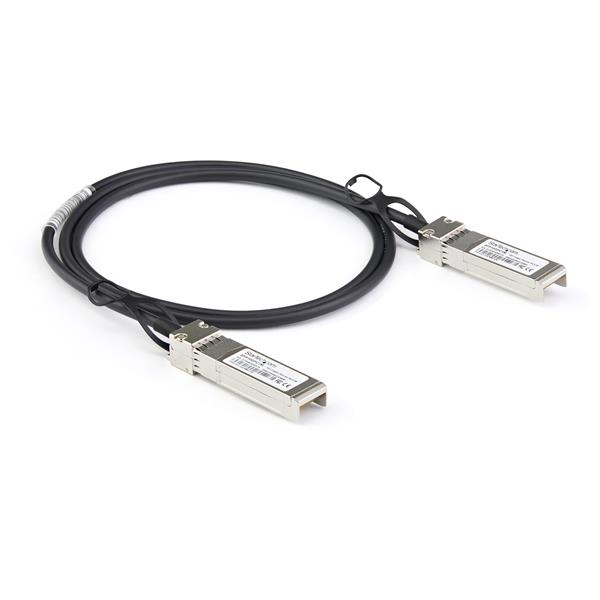

DAC Cooper Assemblies Transceiver tek SFP Patch Cord
DAC Cooper Assemblies Transceiver tek SFP Patch Cord
Our sfp patch cord has receiver limiting electrical interface and the duplex LC connector. It gets the built-in digital diagnostic functions and Supports 9.95 to 10.3 Gb/s bitrates. Our SFP patch cord support advanced firmware allow customer system encryption information to be stored in transceiver.
Features:
Hot-pluggable SFP+ footprint
Supports 9.95 to 10.3 Gb/s bitrates
Power dissipation < 1W
Commercial temperature rang 0C to 70C
Single 3.3Vpower supply
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
10g sfp+ reach 300m to 80Km(SR LR ER ZR)
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in transceiver
Application:
10GBASE-SR/SW 10G Ethernet
Performance Specifications
Absolute maximum rating
Exceeding the limits below may damage the transceiver module permanently.
Item | Description |
|---|---|
Transceiver form factor | SFP+ |
Transmission speed | 10GE |
Center wavelength (nm) | 1550 |
Standards compliance | 10GBASE-ZR |
Connector type | LC Dual |
Applicable cable distance | Single-mode fiber: 80 km |
Transmit power (dBm) | 0 to 4.0 |
Maximum receiver sensitivity (dBm) | -24.0 |
Overload power (dBm) | -7.0 |
Extinction ratio (dB) | 9 |
Operating temperature | 0°C to 70°C (32°F to 158°F) |
