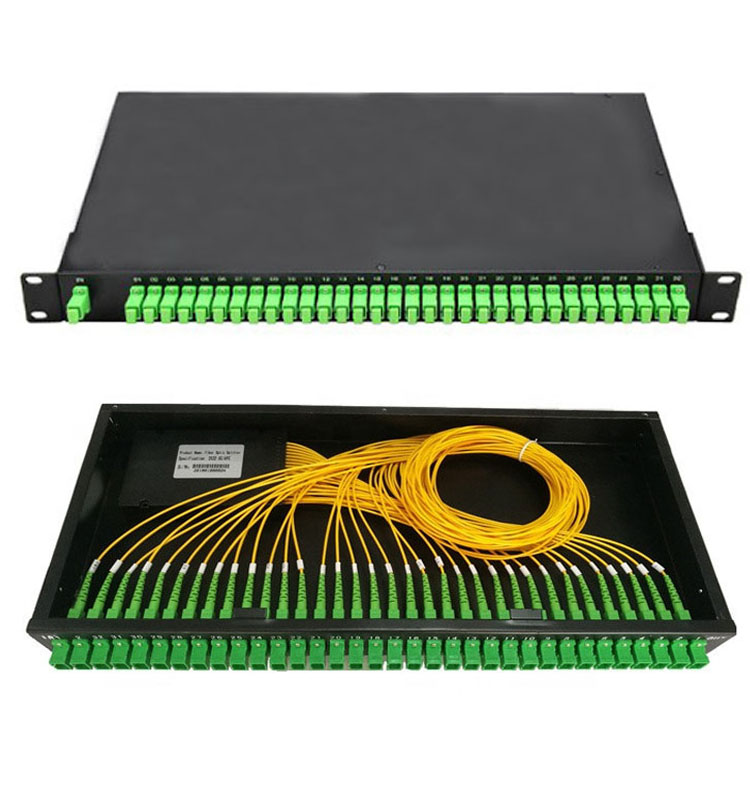

19 Inch Rack Mounted FTTH PLC Splitter
19 Inch Rack Mounted FTTH PLC Splitter
The ftth plc splitter can be used in centralized PON architecture or distributed architecture. In a centralized PON architecture, a 1x32 PLC splitter is often used in the Central Office. In a distributed PON architecture, a 1x4 PLC splitter is firstly directly connected to an OLT port in the Central Office, then each of the four fibers is routed to an outside plant terminal/enclosure box that houses a 1x8/1x4 PLC splitter.
Optical Network Terminals/Units (ONTs/ONUs) that the OLT serves. The single fiber link coming from the Central Office (CO) OLT is connected with the input of a splitter and is split into a given number of fibers leaving the splitter. The number of outputs in the PLC module determines the number of splits.
FEATURES:
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength:From 1260nm to 1650nm
- Wide Operating Temperature:From -40℃ to 85℃
- High Reliability and Stability
APPLICATION:
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
SPECIFICATION:
Table 1 – 1×N PLC Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength (nm) | 1260～1650 | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB)（P/S Grade） | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 17/17.4 | 20./20.4 | 23.8/24.2 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Return Loss (dB) （P/S Grade） | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40～85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | ||||||
| Storage Temperature (℃) | -40～85 | ||||||
| Device Dimension (mm) | 4x4x40 | 4x4x40 | 4x4x40 | 4x7x50 | 4x7x50 | 4x12x60 | N/A |
| Module Dimension (mm) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 120x80x18 | 141x115x18 | 140×115×18 |
| Mini-Module Dimension (mm) | 4x4x40 | 4x7x60 | 4x7x60 | 4x12x60 | 6x20x80 | 6x40x80 | N/A |
Table 1 – 2×N PLC Splitter
| 类型 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A1 or customer specified | |||||
| Insertion Loss (dB)（P/S Grade） | 4 | 7.6 | 11 | 14.4 | 17.5 | 21 |
| Loss Uniformity (dB) | 0.6 | 1 | 1.2 | 1.5 | 1.8 | 2.2 |
| Polarization Dependent Loss(dB) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Return Loss (dB) （P/S Grade） | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40～85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Device Dimension (mm) | 4x4x40 | 4x4x40 | 4x4x40 | 4x7x50 | 4x7x50 | 4x12x60 |
| Module Dimension (mm) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 120x80x18 | 141x115x18 |
| Mini-Module Dimension (mm) | 4x4x40 | 4x7x60 | 4x7x60 | 4x12x60 | 6x20x80 | 6x40x80 |
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
