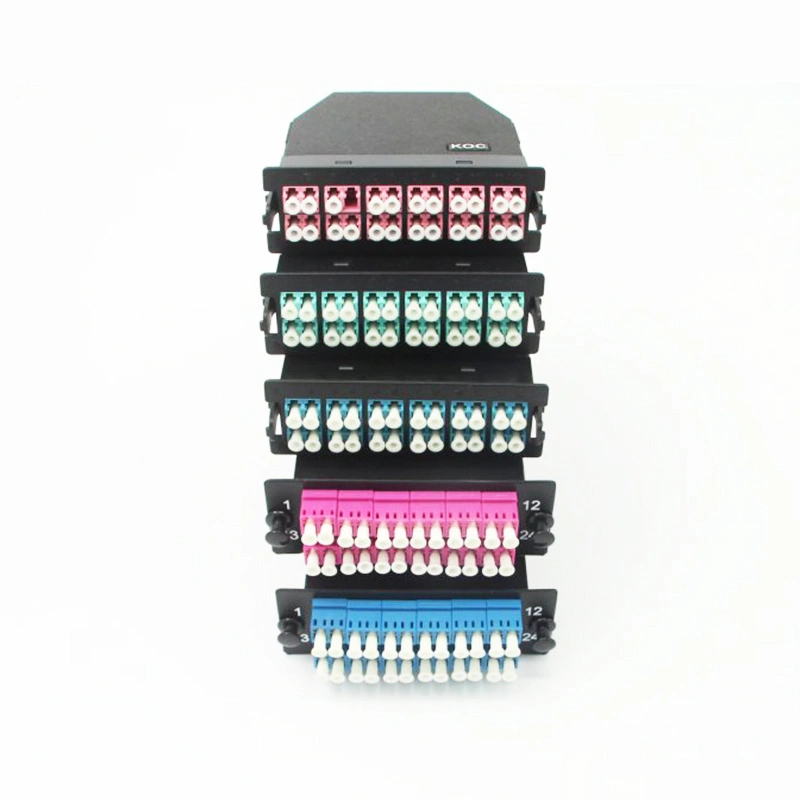

24f MPO MTP Cassette
24f MPO MTP Cassette
DESCRIPTION:
The mtp cassettes is mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client's end.
FEATURES:
- Adopts high quality engineering plastics and Aluminum alloy material
- MPO faceplate can be upgraded easily.
- All the front port are with mark no.easy to identify.
- Quick and easy installed, flexible in configuration and easy to management
APPLICATION:
- Machine rooms of data center and internet
- Data communication network
- Optical system access network
- Storage area networking fiber channel
- High density architectures
Performance MPO/MTP Connectors
Fiber Type | Single Mode | Multi-mode | |
Standard Insertion Loss | Typical(dB) | ≤0.7 | ≤0.5 |
Low Insertion Loss | Typical(dB) | ≤0.35 | ≤0.35 |
Return Loss (dB) | ≥60(APC) | ≥30(PC) | |
≥50(PC) | |||
Tensile Strength (kgf) | 10 | ||
Durability(dB) | ≤0.2 500 matings | ||
Working Temperature(ºC) | -40 ~+85 | ||
Testing Wavelength (nm) | 1310/1550 | 850 | |
General Connector Termination
Fiber Type | Single Mode | Multi-mode | |||
Parameter | UPC | APC | UPC | ||
Insertion Loss Maximum (dB) | ≤0.3 | ||||
Return Loss (dB) | ≥50 | ≥60 | ≥35 | ||
Durability (dB) | ≤0.2 500 matings | ||||
Working Temperature(ºC) | -40 ~+85 | ||||
Testing Wavelength (nm) | 1310/1550 | 850 | |||
Testing
All products have passed professional tests in order to providing better quality guarentee.
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
