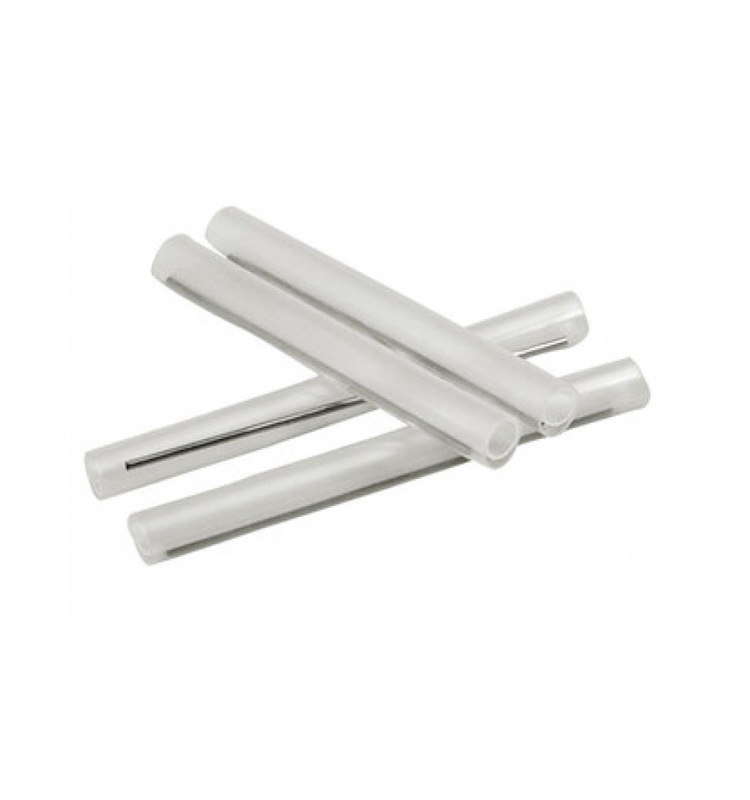

40mm fiber optic ribbon protection sleeve heat shrink cable protector tube
40mm fiber optic ribbon protection sleeve heat shrink cable protector tube
Fiber optic shrinkable protection sleeve is applied to the cable protector tube to fix and protect the optical fiber when splicing. The cable protector heat shrink tube can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).
FEATURES:
- Consist of a Rod of rainforcing the splice, hot fusion tubing and cross linked Polyolefin. To rebuild the coating of fiber to provide mechnical strangth at the fusion joint area and keep the optical transmission properties.
- Moisture resistant for environmental protecion clear sleeve make it easy to detect splice before shrinkage.
- Easily use and avoid any damages to the oprical fiber during installation.
- Sealing structure provides good performance to the splicing in the environment with temperature and humidity.
- Bellcore GR-1380 Compliant
- RoHS & REACH Compliant
- Operating Temperature : -50 - 100°C Shrink Temperature: 90 - 110°C
SPECIFICAION:
Shrinking Temperature (°C) | 110 ~ 130 |
Radial Shrinking Rate (%) | >50 |
Axial Shrinking Rate (%) | <10 |
Low Temperature Property | No crackle at -55°C lasting 4 hours |
Normal Operation Temperature (°C) | -55°C ~ + 135°C |
Normal Operature Relative Humidity | ≤95% |
Spark- over Strength (kV/mm) | ≥20 |
Tensile Strength (Mpa) | 20 |
Loss at -40°C | 0.03dB |
Loss at +60°C RH95% | 0.02dB |
