4U LGX Type Fiber Optic Patch Panel
4U LGX Type Fiber Optic Patch Panel

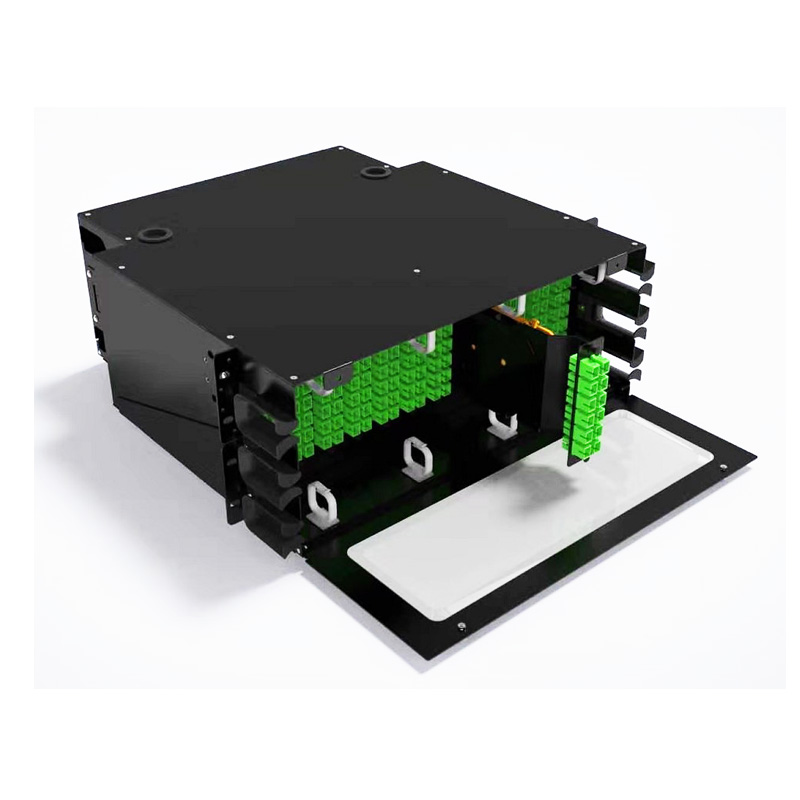

The optical patch panel also offers a 4u patch panel, additional options include a 1U, 2U and 3U versions. This is a full LGX compatible patch panel that accommodates LGX adapter plates or LGX MTP/ MPO Cassettes. These units have a pull out tray and offer full access from the front and rear. They also feature a full Lexan smoked, front hinged access panel along with a hinged access panel in the rear. Come with mounting hardware and cable management accessories. Designed for high density, our 4U High Density Rack Mount Fiber Patch Panel Enclosure is constructed from 16 gauge steel for performance and durability. Holds 12 LGX adapter panels up to 288 fibers (288 LC, 144 SC or ST). Fits standard 19 in. rack.
Features:
- Product size: 439*452.5*174.4mm
- Apply to 19inch (21inch) rack installation
- Body Material: SPCC, Surface: powder coating black( Ral9005) or beige (RAL1001)
- Type of Module box are optional
- Standard configuration: fiber protectioni sleeve –according to the quantity of fiber; cable tie: 12cps ; magic stick strip: 4pcs; cable saddle: 10dpcs

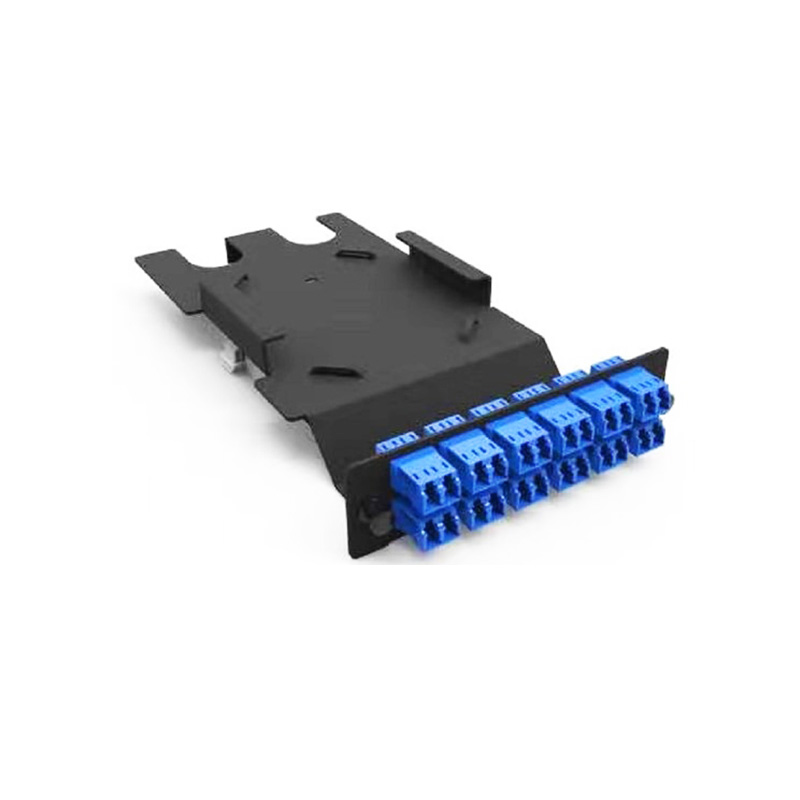

- Adapter, adapter panel and pigtail are optional
- 1.5mm steel sheet for strong housing
- Slim 1 Unit Mounting Height
- Ball bearing slid rails with positive stop
- Sliding design is easy to work for patching the connectors
- Hinged front panel is easy to be turned over & be fixed by snap-in locker
- Front-mounted cable saddles for jumper management
- Can manage both splices and terminations
- Preassembled shelves in multiple configurations
- Can includes adapter panels for up to 72 144SC terminations
- High density splice tray contains 24 fiber maximum in one tray
- Clear plastic cover to protect the fibers.
- 4 fiber saddles built-in for 900um tight buffered fiber winding & storing.
- Capable of storing up to 3 meters of 900 μm tight buffered fiber per adapter
- Snap-in locker design, easy to change adapter panels for various connector patching
- Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable, and minimizes dust build-up
Application:
Local Area Network
CATV Network
FTTx System
Wide Area Network
- Test Instruments
SPECIFICATION:
| Product | LGX 4U Patch panel |
| Size (mm) | 439*452.5*174.4 |
| Color | Black (Ral9005), Beige (RAL1001) |
| Body Material | SPCC |
| Capacity | 144 (SC), 288(LC) |
CONFIGURATION:
| LGX 4U Patch panel | 1pcs |

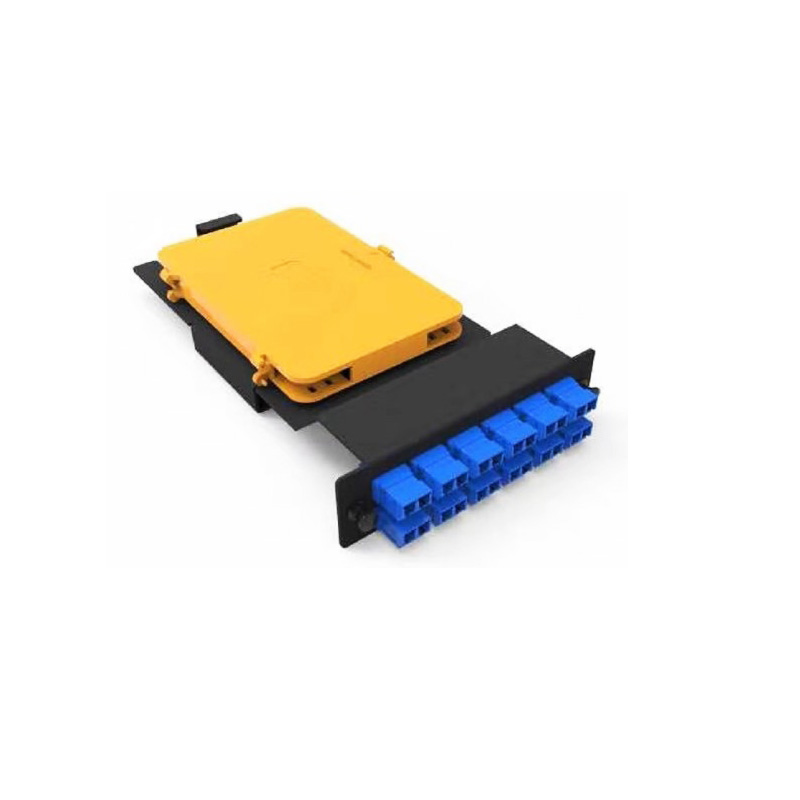

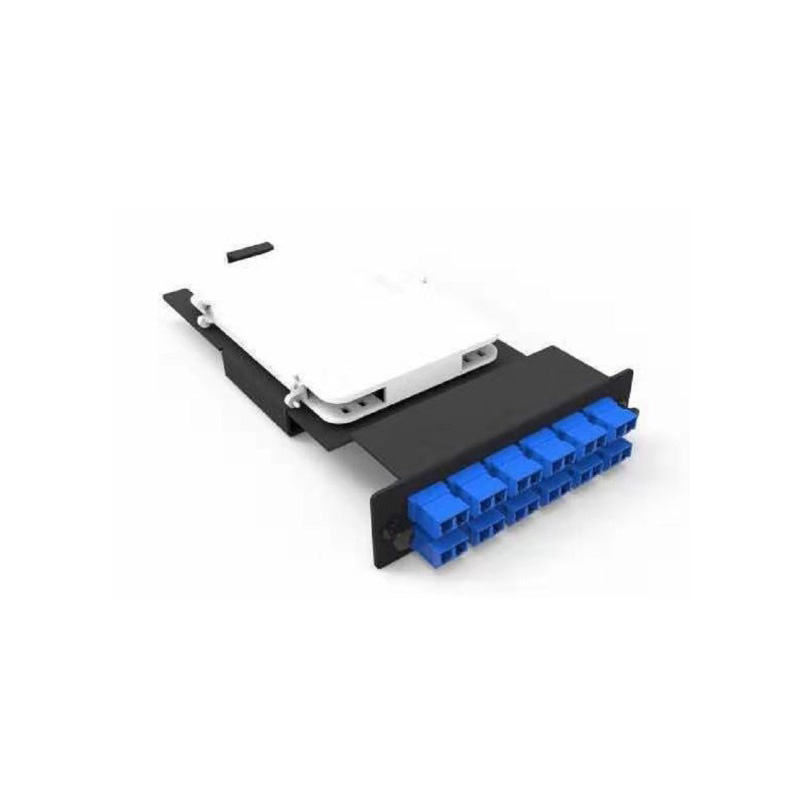

| 24f splice module | 12pcs |
| Fiber protection sleeve | according to the quantity of fiber |
| cable tie | 12pcs |
| magic stick strip | 4pcs |
| cable saddle | 10dpcs |
.
