MPO/MTP Trunk Patch Cable

Model NO.: MPO/MTP Trunk Patch Cable
Delivery: EXW/FOB/CIF Etc.
Country of Origin: GUA, CN

Quantity:

Product Description

mpo patch cables

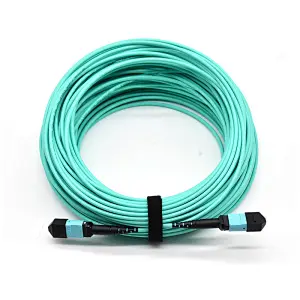

MPO/MTP Trunk Patch Cable

The mpo patch cable/trunk cable is terminated with MPO connector on both ends. MPO Patch cable/trunk cables connect MPO modules together as a permanent link. The mpo patch cable/trunk cables are available with 12, 24, 48 and 72 fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels.

FEATURES:

Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
100% pre-terminated and tested in factory to ensure transfer performance.
Rapid configuration and networking, reduce installation time. 3.Supports 40G and 100G network applications.
Cable Jacket material: LSZH, OFNR, OFNP available.
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized

SPECIFICATION:

Fiber account	OD(mm)	Nominal Weight (kg/km)	Max.tensile Strength (N)		Max.Crush Resistance (N/100mm)		Min.Bending Radius (mm)
Fiber account	OD(mm)	Nominal Weight (kg/km)	Short-term	Long-term	Short-term	Long-term	Dynamic	Static
12	3.0±0.15	7	180	90	500	150	20D	10D

Optical Characteristics

Item	Parameter
	Single mode		Multimode
	Standard	Elite	Standard	Elite
Insertion loss	Typical≤0.30dB Max≤0.75dB	Typical≤0.15dB Max≤0.35dB	Typical≤0.50dB Max≤0.25dB	Typical≤0.10dB Max≤0.35dB
Return loss	≥ 50dB (PC) ≥ 60dB (APC)	≥ 55dB (PC) ≥ 65dB (APC)	≥30dB(PC)	≥30dB(PC)

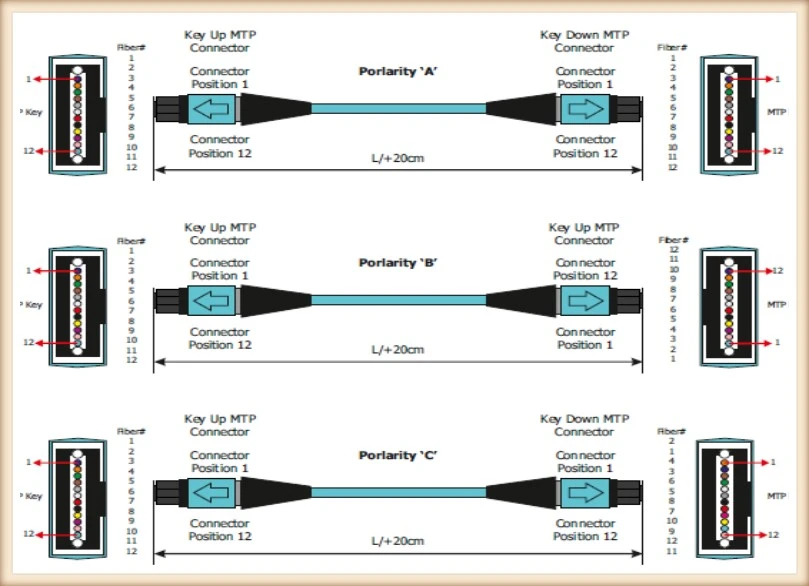

Polarity

Polarity
