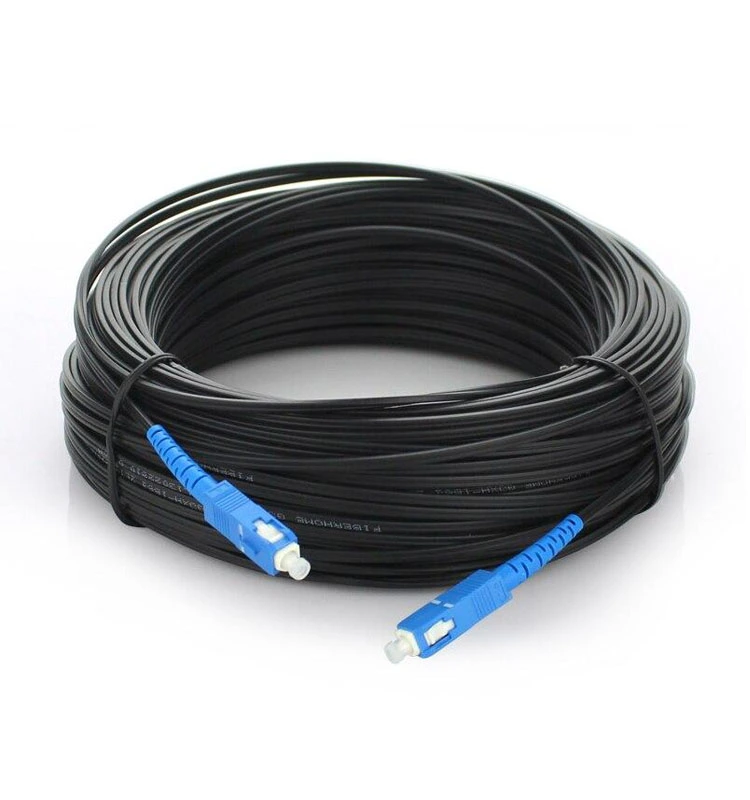

FTTH Outdoor Flat Drop Patch Cords
FTTH Outdoor Flat Drop Patch Cords
DESCRIPTION:
FTTH Drop Cable Patch Cords SC LC FC is a kind of patch cord but assembly with FTTH drop cable both indoor and out door. This is for last 100m cable in FTTH project. Used widely in Fact plate, terminal box, ONU tec.
The material of the flat drop patch cords are all-weather and UV-resistant. They are very reliability and stability. And they are cost effective solution for in house termination. This kind of flat drop patch cords suitable for indoor and outdoor areas.
ftth patch cord, with connector pre-terminated in each end of cable to make connection which allow rapidly and conveniently plug the cable to optical transmitter, receiver, PON boxes and other telecommunication equipment during FTTH network constructions. It will decrease the loss of the optical distribution network and the installation time in FTTX projects.
FASO provides a high precise ftth patch cord for indoor and outdoor optical network deployments. We offer user different kind cable with different end connectors, cable is available with flat type, round type and figure 8 type according to application requirements, connectors can be choose by SC, FC, LC, ST and etc with PC, UPC or APC polishing. Jera drop cable patch cord is consist of high grade connectors and the ferrule is made of zirconia.
Features
- The connector with low insertion loss, high return loss.
- The factory made a good connector to ensure the reliability and stability.
- Simplifying the design, reduces the requirements of personnel.
- Material cost and construction cost can be greatly reduced.
- Can choose a variety of different structure form of the drop Cable.
- Cost effective solution for in house termination.
- Low insertion loss and added loss.
- Height of attenuation.
- The material in the jumpel cable are all-weather and UV-resistant.
- Mechanical performance: IEC 61754-4 standard.
- RoHS and REACH materials compliant.
- Cable diameter Range: 2.0*5.0mm.
Application
- FTTH network for indoor and outdoor
- Local Area Network and Building Cabling Network
- Interconnect between instruments, terminal box and communication
Specification
| Connector type | FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc. | |||
| Cable Length | m | 1, 2, 3, 5, 10 (±10mm) | ||
| Cable diameter | mm | 5.0*2.0 | ||
| Operating wavelength | nm | 1310, 1490,1550 | ||
| Core Type | G.652, G655, G657, OM1, OM2, OM3, OM4 | |||
| Ferrule End-face | PC | UPC | APC | |
| Insertion Loss | dB | ≤0,2 | ||
| Max. Insertion Loss | dB | ≤0,3 | ||
| Return Loss | dB | ≥45 | ≥50 | ≥55 |
| Operation Temperature | C | -40 ~ +80 | ||
| Core Diameter | um | 9/125, 62.5/125, 50/125 | ||
| Durability | ≤0.1dB change, 500 Cycles | |||
| Sheath Color | White, Black | |||
| Package | Each patchcord is packaged individually and individually test certification. | |||
FAQ
Q: Are you manufacturer?
A: Faso Photonics Technology Limited is a very professional manufacturer for fiber optic cable since 2007.
We can control your order from the first begining to the last.
Q: Why choose us?
A: Quality product (RoHs, CE FCC compliance): Competitive price: Custom made products:
1-20 years warranty: Fast delivery with bulk order: Intemnational shipping: ISO 9001 Certified factory.
Q: How can I get your price list?
A: Please offer us your request details and contact info. We will contact with you and pass our
quotation sheet to you.
Q: How can I get some samples?
A: We offer free samples for most of products. But you should pay the shipping cost.
Q: What about delivery time?
A: The delivery of most product is 3-7days, some few product is 7- 10 days.
