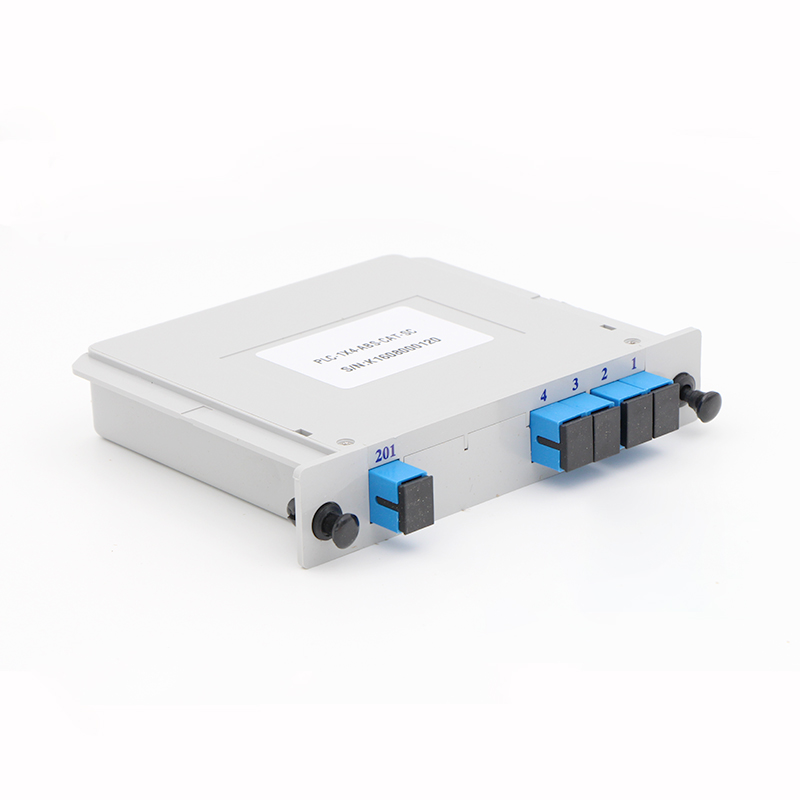

FTTH Fiber Optic PLC Splitter LGX Modular Cassete Box
The ftth splitter, also called Planar Waveguide Circuit splitter, is a device used to divide one or two light beams to multiple light beams uniformly or combine multiple light beams to one or two light beams. It is a passive optical device with many input and output terminals, especially applicable to PON (EPON, GPON, BPON, FTTX, etc.) to connect the MDF (main distribution frame) and the terminal equipment and to branch the optical signal. PLC splitter provides a low-cost light distribution solution with high stability and reliability. PLC splitters can offer a splitting ratio of up to 1x64, which is generally higher than the splits of FBT splitter that another common type of optical splitter.
FEATURES:
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength:From 1260nm to 1650nm
- Wide Operating Temperature:From -40℃ to 85℃
- High Reliability and Stability
APPLICATION:
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
SPECIFICATION:
Table 1 – 1×N PLC Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength (nm) | 1260～1650 | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB)（P/S Grade） | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 17/17.4 | 20./20.4 | 23.8/24.2 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Return Loss (dB) （P/S Grade） | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40～85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | ||||||
| Storage Temperature (℃) | -40～85 | ||||||
| Device Dimension (mm) | 4x4x40 | 4x4x40 | 4x4x40 | 4x7x50 | 4x7x50 | 4x12x60 | N/A |
| Module Dimension (mm) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 120x80x18 | 141x115x18 | 140×115×18 |
| Mini-Module Dimension (mm) | 4x4x40 | 4x7x60 | 4x7x60 | 4x12x60 | 6x20x80 | 6x40x80 | N/A |
Table 1 – 2×N PLC Splitter
| 类型 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A1 or customer specified | |||||
| Insertion Loss (dB)（P/S Grade） | 4 | 7.6 | 11 | 14.4 | 17.5 | 21 |
| Loss Uniformity (dB) | 0.6 | 1 | 1.2 | 1.5 | 1.8 | 2.2 |
| Polarization Dependent Loss(dB) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Return Loss (dB) （P/S Grade） | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40～85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Device Dimension (mm) | 4x4x40 | 4x4x40 | 4x4x40 | 4x7x50 | 4x7x50 | 4x12x60 |
| Module Dimension (mm) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 120x80x18 | 141x115x18 |
| Mini-Module Dimension (mm) | 4x4x40 | 4x7x60 | 4x7x60 | 4x12x60 | 6x20x80 | 6x40x80 |

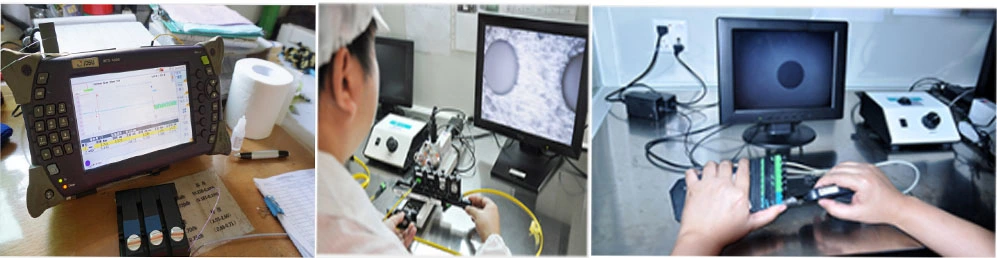

Testing
All products have passed professional tests in order to providing better quality guarentee.
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
