GYFJH CPRI FTTA Outdoor Patch Cord
GYFJH CPRI FTTA Outdoor Patch Cord

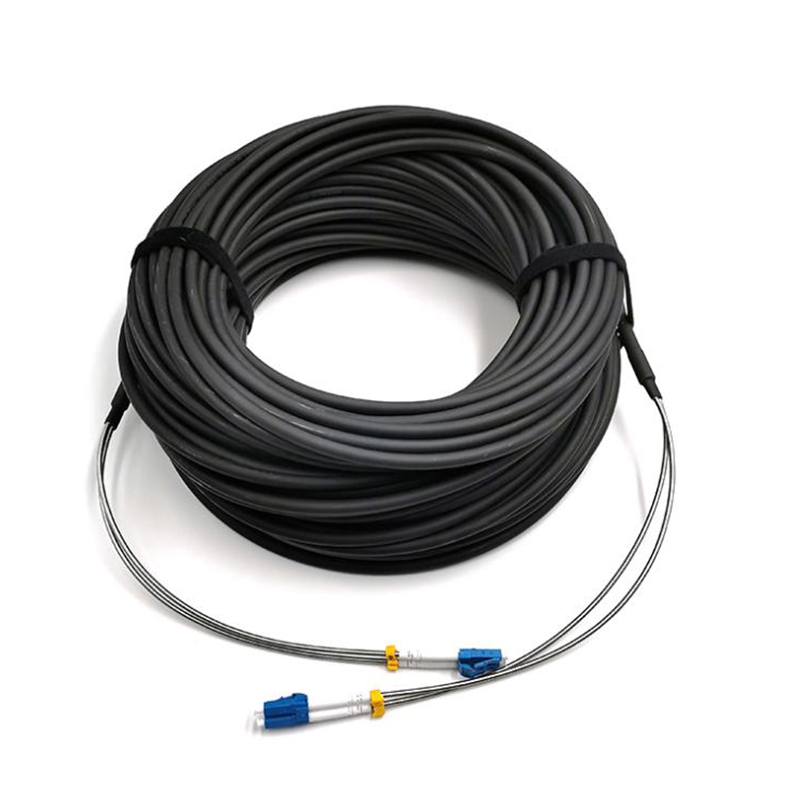

The GYFJH, Patch cord are standard size for Duplex LC Connectors, widely used in FTTA, Base station, and the outdoor waterproof condition. We supply FTTA (Fiber to the Antenna) , DLC (Dual LC Connector) and SM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application. In a FTTA configuration, a baseband unit (BBU) situated near the bottom of the tower is connected via a fiber optic feeder and runs to a remote radio head (RRH) positioned near the antennas at the top of the tower. The RRH converts the digital signals to analog, and the short span between RRH and antenna is still completed using traditional coax cabling.
Application
Multi-purpose Outdoor.
For connection between distribution box and RRH.
Deployment in Remote Radio Head cell tower applications.
Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission
LC Connector
Metal tube GYFJH cable (2cores) Metal tube
End A: 0.3CM End B: 34CM5, Meet various requirements of market and clients

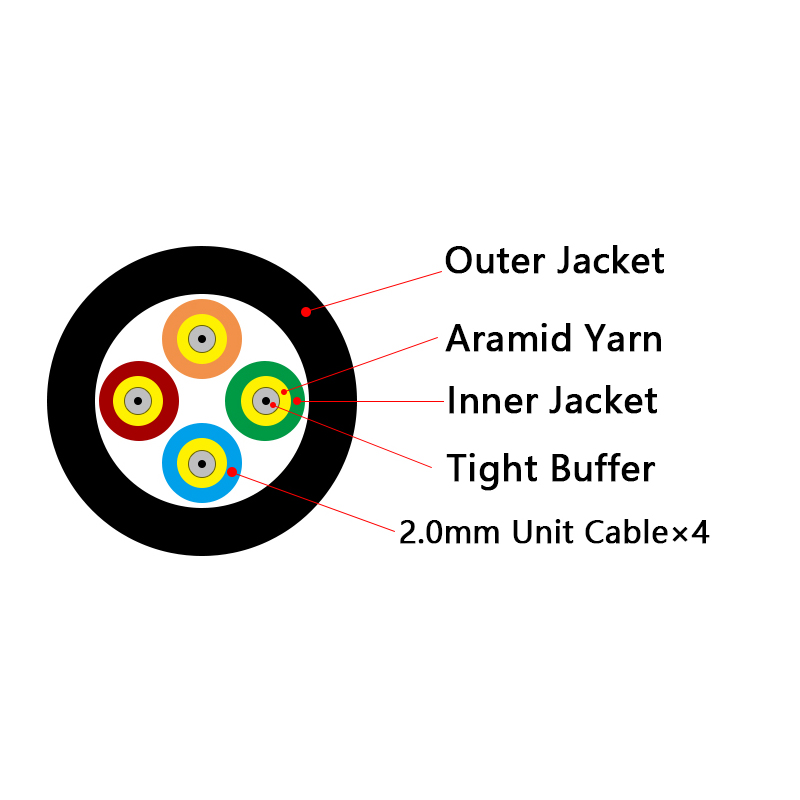

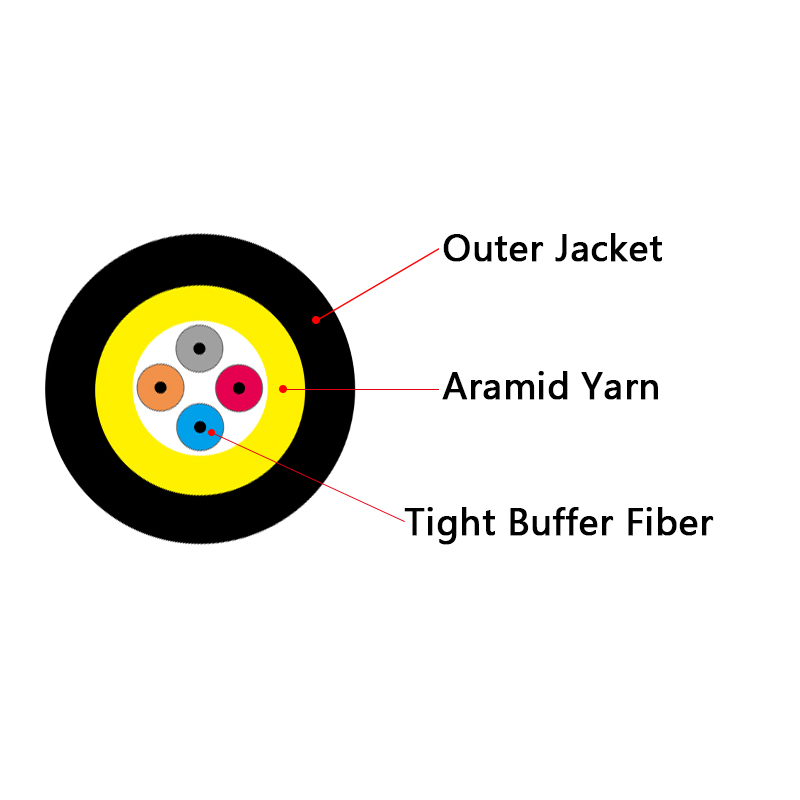

GYFJH Cable Specifications
Cable Type 1:
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 1--12 | 5.0 | 25 | 350 | 700 | 1000 | 2000 | 20D | 10D | --30-70℃, |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; | |||||||||
Cable Type 2:
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 1--12 | 7.0 | 45 | 400 | 800 | 1000 | 2000 | 20D | 10D | --3-70℃, |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; | |||||||||
CPRI Patchcords Specifications
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -20°C~+70°C |
| Storage temperature | -20°C~+70°C |
| Tensile Data | Tensile between junction and fiber cable≥100N |
