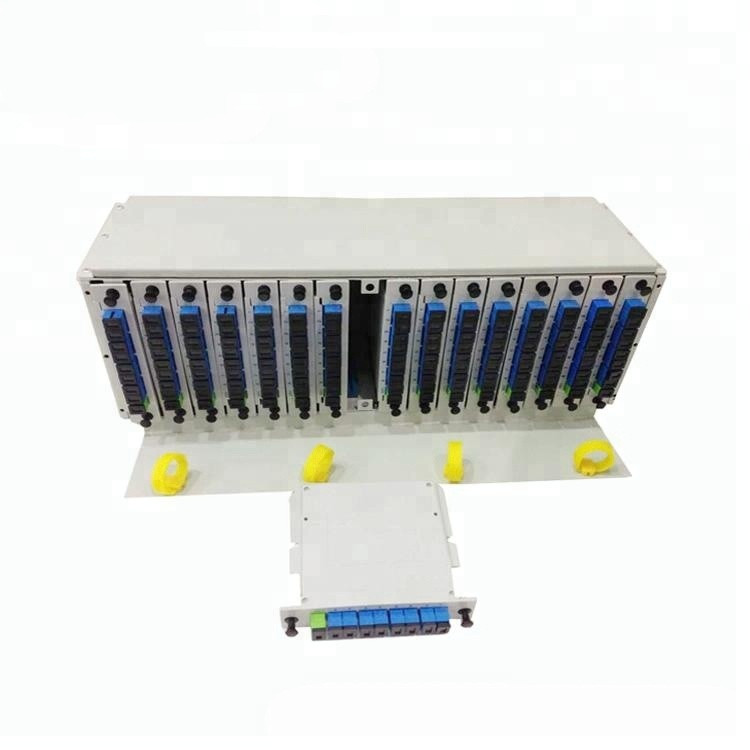

High Density 144 cores 3U Rack Mount

High Density 144 cores 3U Rack Mount

The 3u rack mount are solution facilitating termination up to 144/288 fibers in signal distribution points as well in server rooms. Smart design allows easy and time-saving way of installation and mounting of fiber optic cables. Main elements of this solution is frame of modular patch panel (chassis) and equipped 3U modular patch panel. Complete solution also offers patchcords management shelf, tubes and patchcords reserve shelf as well as fiber optic cables tubes separators. Additionally, 3U modular patch panels can be provide with single modules equipped with MTP®/MPO Direct Split, which is perfect solution for Data Center apllication. Direct split allows to connect MTP multi-fiber connectors with standard, single-fiber optic connectors.

APPLICATION:

• Fiber optic distribution is a user friendly optical fiber patch system with conventional couplings.
• The application of such a system is in rooms where maximum flexibility is required (typically in computer centre,sub network).
• 19"Sub rack of 1HU for up to 3 compact plug in modules with max 36/72 fibers .
• 19"Sub rack of 3HU+1HU with an integrated over length tray of 1HU with cable routing of max 144/288 fibers
