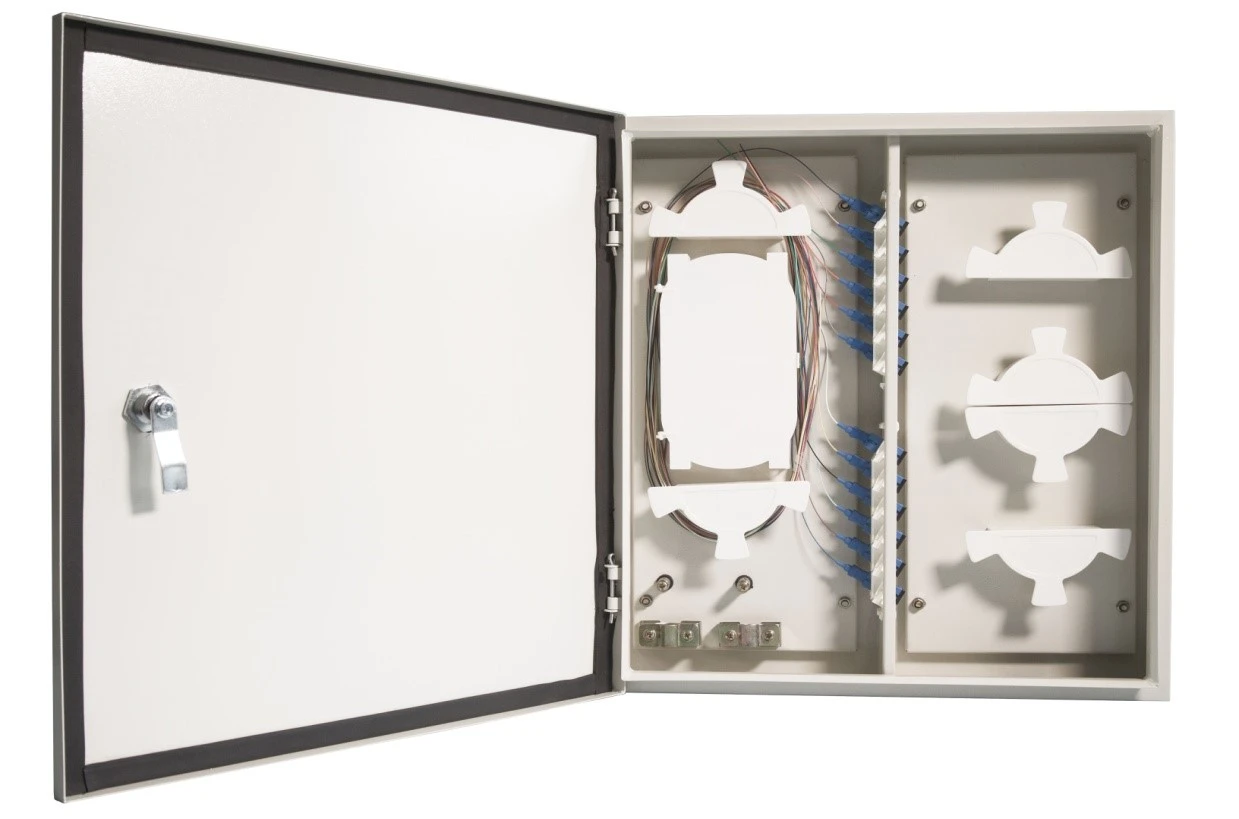

Outdoor Wall Mount Box

Outdoor Wall Mount Box

The outdoor wall mount box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be used in this box. Meanwhile, it provides solid protection and management for the FTTX network building.

FEATURES:

• Rugged metal construction
• Lockable using supplied key
• Top and/or bottom cable entry options
• Supplied loaded with fibre adaptors
• Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room
• The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.
• Provide fusion and storage applicance for optical cables
• Reliable protection appliance of fixing, stripping and earthing for optical cables.
• Whole range protected design for fiber lay to ensure the bending radius=40mm
• Provide various accessories to avoid any unexpected damage to the fiber.
• Made from Stainless steel material, IP54 water proof.

APPLICATION:

• Local Area Network

• CATV Network

• FTTX System

• Wide Area Network

• Test Instruments

SPECIFICATION:
