Preformed Tension Clamp For ADSS Cable

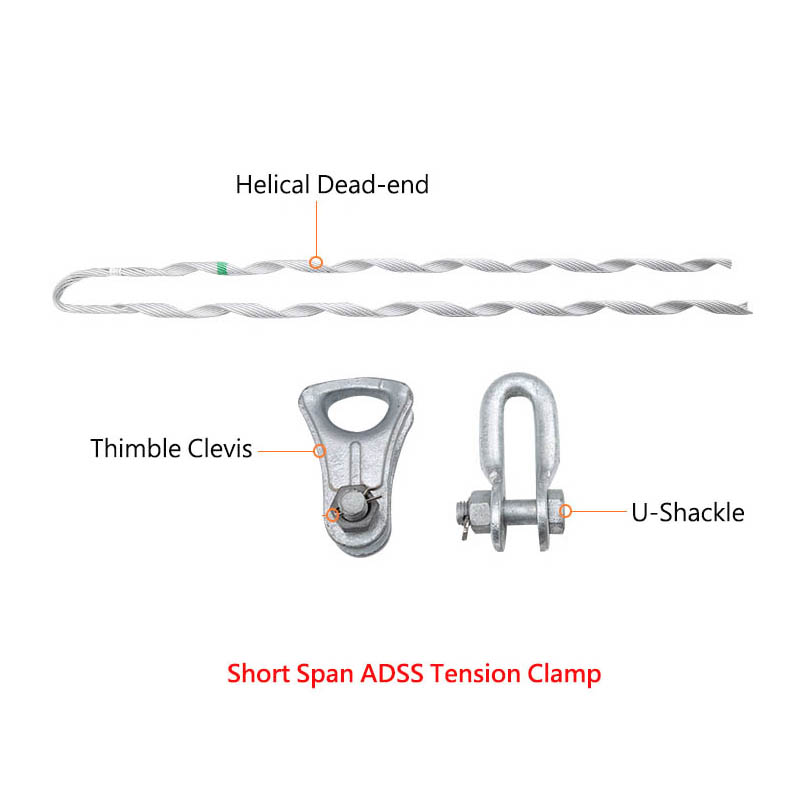

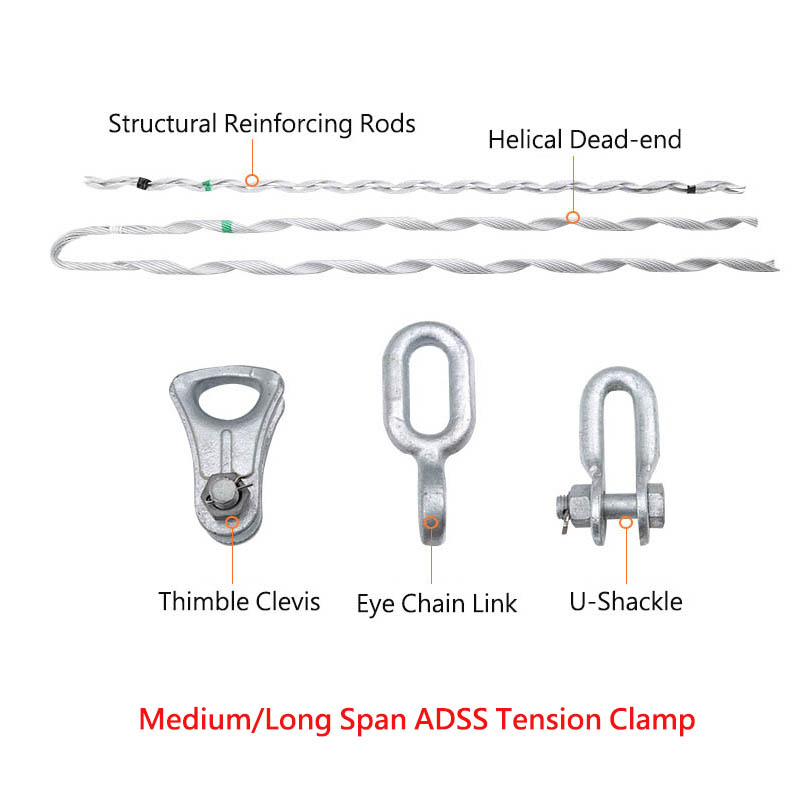

The adss tension clamp are designed to connect ADSS cables and poles/towers. Armor rods can provide protection and cushioning to the ADSS cables. The special design of Preformed rods makes ensure that Tension Clamps can't cause undue stress to the ADSS cables, so as to ensure the normal lifetime of cables system. The material for ADSS tension set is aluminum-clad steel or galvaized steel wire. It is mainly used for ADSS installation between strain twoer/pole, corner tower/pole, mid-joint tower/pole and terminal tower/pole and terminal tower/pole which span length is less than 100M. Midium/Long Span ADSS Tension Set is composed of helical Dead-end and structural reinforcing rods,the materials are aluminum-clad steel or galvanized steel,it is mainly used for ADSS installation between strain tower/pole,corner tower/pole and terminal tower/pole which span length is more than 200 with RTS of the cable is larger than 15KN, Medium Span ADSS Tension set is used for installation span length between 200-400M,Long Span ADSS Tension set is used for installation span length more than 400M.
Structure and Raw Material:
Shackle--Hot dip galvanized steel. Shackle is connected with Reinforcing Pole units.
Twisted Chain Link--Hot dip galvanized steel. Twisted Chain Link is intended for connecting Shackle and Thimble.
Thimble---Hot dip galvanized cast steel. Thimble is plugged in shackle of Tension Clamp for protection and connection.
Armor Rods----- Aluminum clad steel wire. Armor Rods increase friction with a layer of particle emery inside to cables. Rods are assembled into four subsets in workshop which reduce misalignment errors and speeds installation. The ends are bent outward to provide stress relief at the critical cable departure areas.
Preformed Dead End -- Preformed Dead End are made of hot dip galvanized steel wire or aluminum clad steel wire, it is assembled into one subset with a layer of firm emery inside in workshop for increasing grip strength of Tension Clamps while decreasing side pressure
Direction:
1. It is designed to connect continue pole (tower) and Terminal pole(tower), tensile pole or line angles above 25。Pole (tower). The special specification: one unit per Terminal pole (tower), two units per tensile pole (tower), two units per continue pole (tower).
You can select the Specification Model corresponding to the appropriate cable diameter range, maximum allowable tension (MAT) or Span Length from Data Sheet.
| Type | Available Dia. Of Cable (mm) | Reference Span Length(m) | |
| Min (mm) | Max (mm) | ||
| ANJ 0950 | 9 | 9.5 | Less than 100M |
| ANJ 1050 | 9.6 | 10.5 | Less than 100M |
| ANJ 1160 | 10.6 | 11.6 | Less than 100M |
| ANJ 1280 | 11.7 | 12.8 | Less than 100M |
| ANJ 1410 | 12.9 | 14.1 | Less than 100M |
| ANJ 1560 | 14.2 | 15.6 | Less than 100M |
| ANJ 1700 | 15.7 | 17 | Less than 100M |
| ANJ 0940 020 | 8.6 | 9.4 | 200/300 |
| ANJ 1010 020 | 9.5 | 10.1 | 200/300 |
| ANJ 1070 020 | 10.2 | 10.7 | 200/300 |
| ANJ 1140 020 | 10.8 | 11.4 | 200/300 |
| ANJ 1220 020 | 11.5 | 12.2 | 200/300 |
| ANJ 1290 020 | 12.3 | 12.9 | 200/300 |
| ANJ 1370 020 | 13 | 13.7 | 200/300 |
