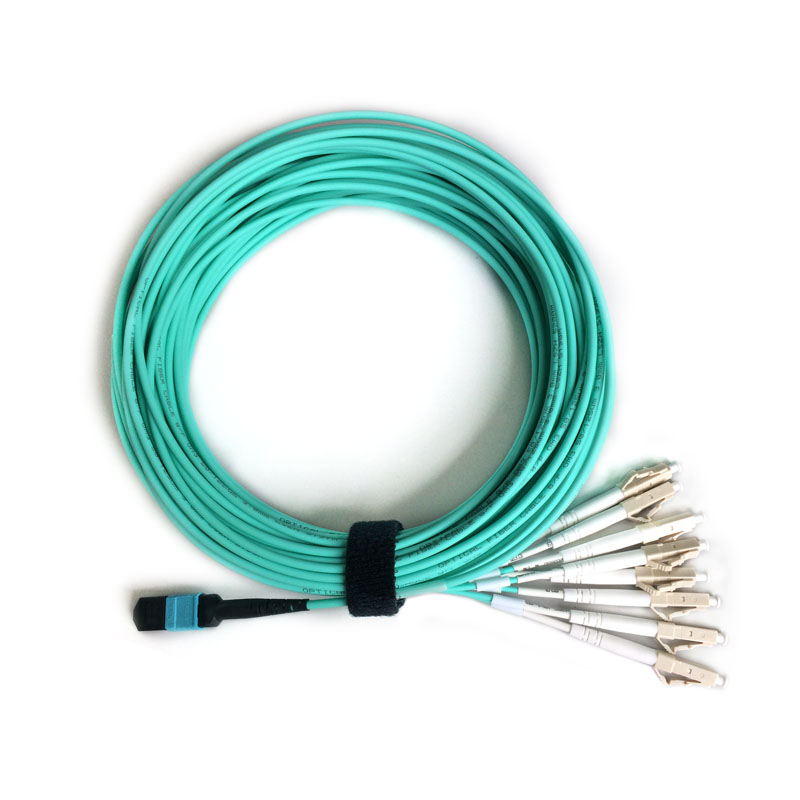

mtp patch cords/trunk cable is terminated with MPO connector on both ends. The Patch cable/trunk cables are available with 12, 24, 48 and 72 fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassettes with the new connector style on the cross-connect side of the patch panel.
Features
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
- 100% pre-terminated and tested in factory to ensure transfer performance.
- Rapid configuration and networking, reduce installation time. 3.Supports 40G and 100G network applications.
- Cable Jacket material: LSZH, OFNR, OFNP available.
- Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized
Cable Parameters
| Fiber account | OD(mm) | Nominal Weight (kg/km) | Max.tensile Strength (N) | Max.Crush Resistance (N/100mm) | Min.Bending Radius (mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| 12 | 3.0±0.15 | 7 | 180 | 90 | 500 | 150 | 20D | 10D |
Specifications
| Connector A | MPO Female (pinless) | Connector B | LC UPC Duplex |
| Fiber Mode | OM3 50/125μm | Wavelength | 850/1300nm |
| MPO Connector IL | 0.35dB Max(0.15dB Typ.) | LC Connector IL | ≤0.2dB |
| MPO Connector RL | ≥20dB | LC Connector RL | ≥20dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Jacket OD | 3.0mm | Fan-Out Diameter | 2.0mm |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Cable Jacket | PVC/LSZH/OFNP/OFNR | Fiber Count | 8 Fibers |
| Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
| Connector A | MPO Female (pinless) | Connector B | LC UPC Simplex |
| Fiber Mode | OM4 (OM3) 50/125μm | Wavelength | 850/1300nm |
| MPO Connector IL | 0.35dB Max(0.15dB Typ.) | LC Connector IL | ≤0.2dB |
| MPO Connector RL | ≥20dB | LC Connector RL | ≥20dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Jacket OD | 3.0mm | Fan-Out Diameter | 2.0mm |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Cable Jacket | PVC/LSZH/OFNP/OFNR | Fiber Count | 8 Fibers |
| Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
| Connector A | MPO/APC Female (pinless) | Connector B | LC UPC |
| Fiber Mode | OS2 SMF 9/125μm | Wavelength | 1310/1550nm |
| MPO Connector IL | 0.35dB Max(0.15dB Typ.) | LC/APC Connector IL | ≤0.2dB |
| MPO Connector RL | ≥60dB | LC/APC Connector RL | ≥60dB |
| Attenuation at 1310nm | ≤0.32dB/km | Attenuation at 1550nm | ≤0.18dB/km |
| Jacket OD | 3.0mm | Fan-Out Diameter | 2.0mm |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Cable Jacket | LSZH | Fiber Count | 8 Fibers |
| Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
