The self supporting aerial cables is loose tube stranded. 250μm fibers are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. The cable core is not only filled with filling compound, but also covered with thin PE (polyethylene) inner sheath. The stranded layer of aramid yarns are applied over the inner sheath as strength member. Therefore, the cable is completed with PE or AT (anti-tracking) outer sheath. ADSS has good performance of tensile strength and temperature.
All-dialectric self-supporting (ADSS) cables are manufactured with an FRP dielectric central strength member, with multiple loose tube optical fibres. The external jacket is UV stabilised and extremely resistant to the ingress of moisture, with operating temperatures from -40-+70 degrees, the cables are suitable for installation to 11kV power lines.
Features:
Can be installed without shutting off the power
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
Large span lengths
Good performance of tensile strength and temperature
The design life span is 30 years
Optical Characteristics:
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
(+20℃) | @1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
|
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
|
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
| |
Technical Parameters:
Outer diameter | weight tension kN | Ref.daily max.working tension kN | Max allowable working tension kN | Break strength kN | Strength member CSA mm2 | Modulus of elasticity kN/ mm2 | Heat expansion coefficient ×10-6/k | Suitable span (m) (NESC Standard,m) | ||||
| PE sheath | AT sheath | A | B | C | D | ||||||
12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
13 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
13.3 | 137 | 148 | 3 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1 | 420 | 280 | 400 | 280 |
14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
14.9 | 171 | 185 | 6.75 | 18 | 45 | 22 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 | 670 | 460 | 650 | 460 |
15.5 | 190 | 204 | 9 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
15.6 | 194 | 208 | 10.5 | 28 | 70 | 33 | 19.6 | 0.1 | 800 | 560 | 800 | 560 |
16.3 | 211 | 226 | 12.75 | 34 | 85 | 40 | 20.1 | 0.1 | 880 | 650 | 880 | 650 |
16.8 | 226 | 242 | 15.45 | 41 | 103 | 48 | 24 | -0.4 | 1000 | 750 | 1000 | 760 |
17.2 | 236 | 253 | 16.2 | 45 | 108 | 51 | 25.1 | -0.5 | 1100 | 800 | 1100 | 830 |
17.9 | 249 | 266 | 18 | 50 | 120 | 58.8 | 26.1 | -0.8 | 1180 | 880 | 1180 | 900 |
MANUFACTURING

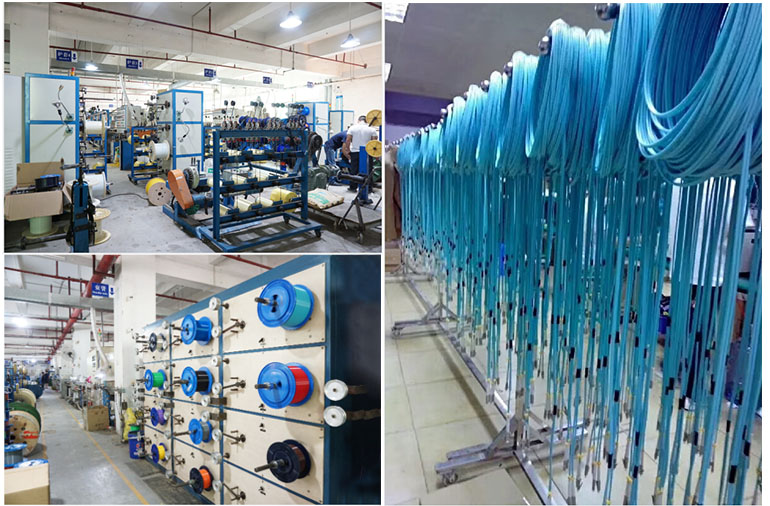

We have majority of advanced equipment，ample space, high-tech public person, strict quality inspection which can provide a large number of high-quality products.
CERTIFICATION

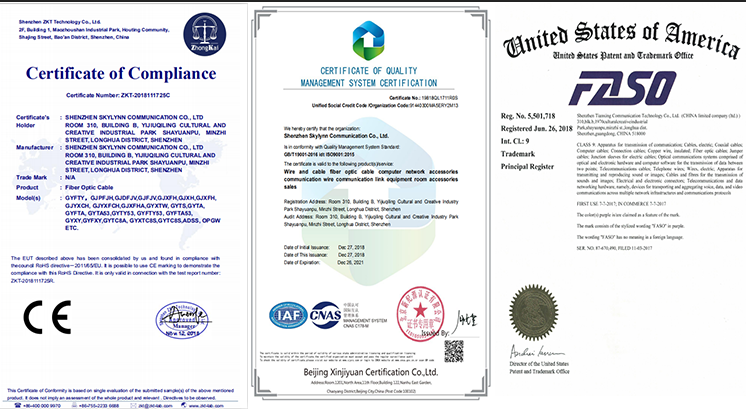

After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
