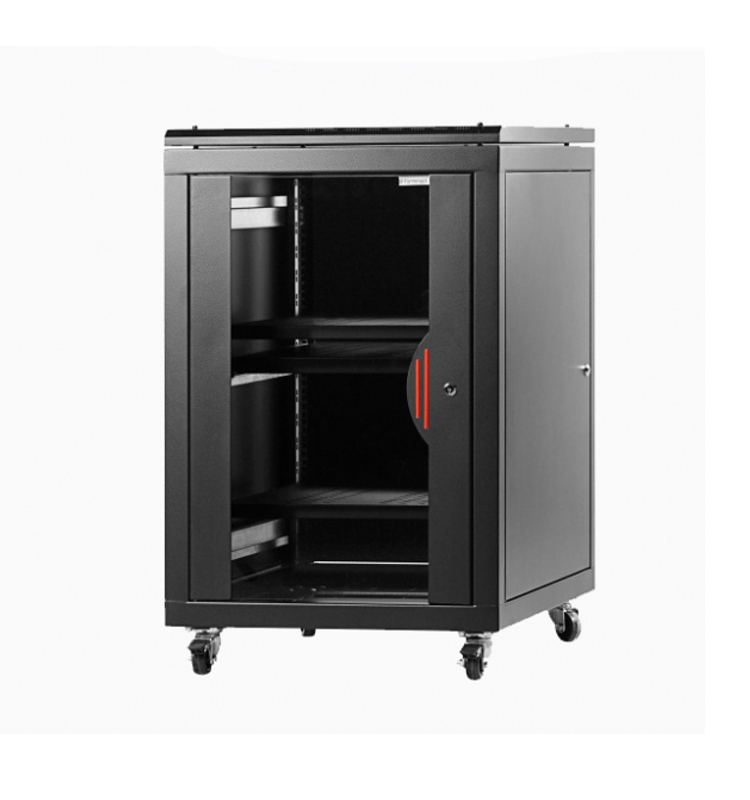

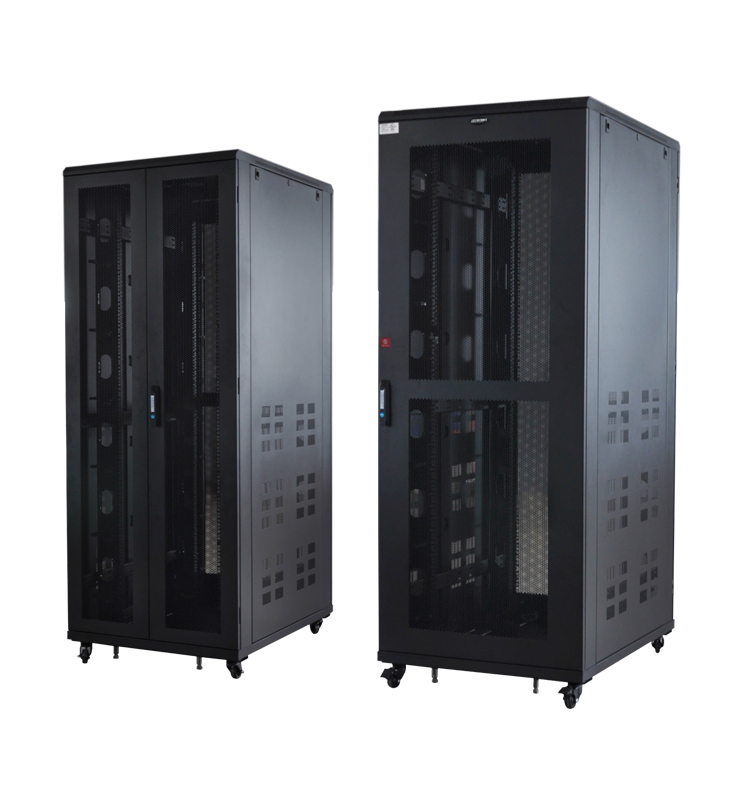

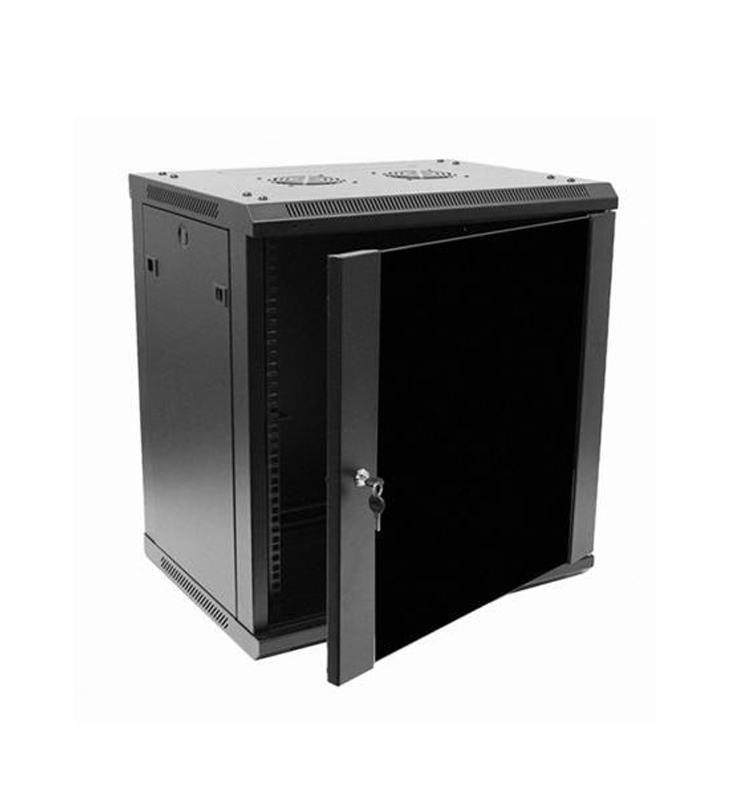

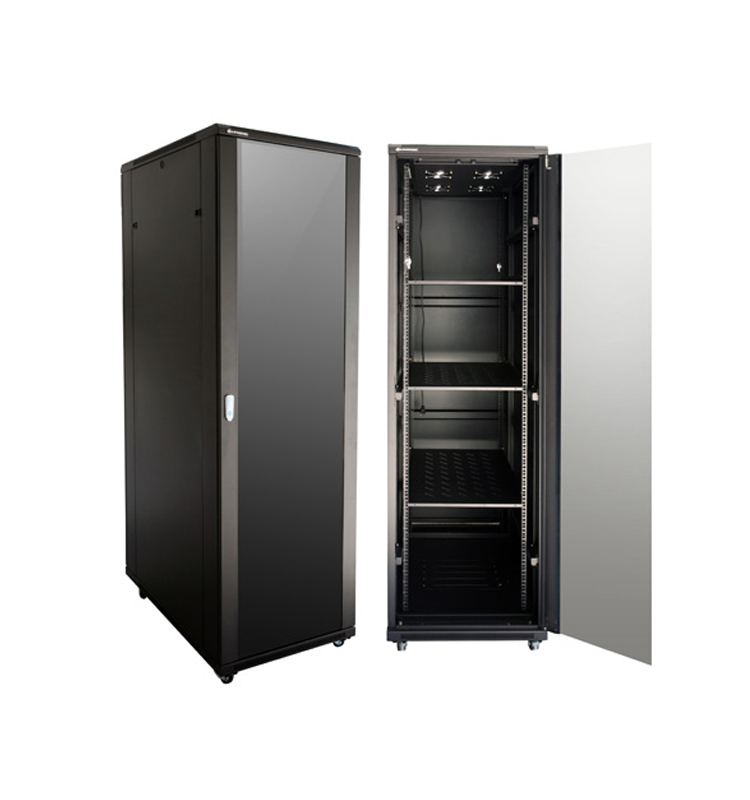

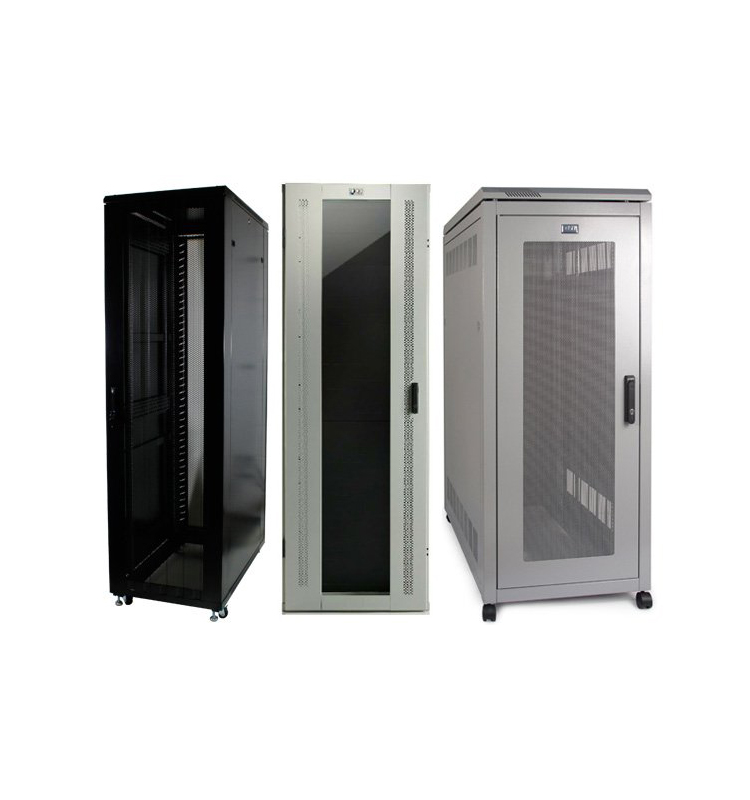

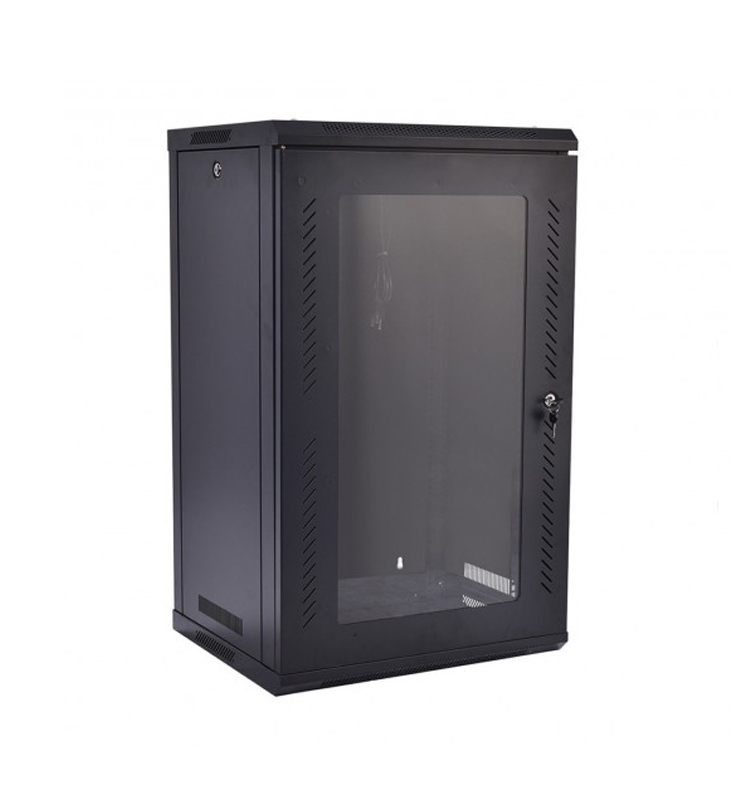

19 inch rack mount cctv standard server ip55 ip 65 outdoor 4u 6u 9u 12u 21u 24u 42u 47u network cabinet
- Product Name:19 Inch Standard Server Rack
- Color:RAL9005 BLACK /RAL7035 GREY
- Application:Network Cabling
- Width:600/800 Mm
- Capacity:4U-47U
- Height:4/6/9/12/15/22/27/32/42/47U Cabinet
- Degree of protection:Server Cabinet IP20
- OEM Server:Accept
- Feature:Floor Standing Server Rack
- Usage:Control
- Certification:ce
- Certification:RoHS
- Products Status:Stock
- Place of Origin:CN;GUA
- Cabinet Standard:19inch
- Material:SPCC Cold Rolled Steel
- Size:600/800mm width
- Brand Name:Skylynn
- Model Number:42U/47U
19 inch rack mount cctv standard server ip55 ip 65 outdoor 4u 6u 9u 12u 21u 24u 42u 47u network cabinet
Features:
*High-density ARC vented front single &rear dual doors, two section side panel.
*Standard enclosure for low to medium density server and networking applications.
*Compact width to optimize data center space.
*Feature-rich enclosures optimized for easy installation, managing cables, integrating
Power distribution, and maximizing airflow.
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm
Loading Capacity:
Static Loading: 1000kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Optional Accessory:
Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
Earth kit
And so on...
| Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
| 18U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 988mm |
| 22U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1166mm |
| 27U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1388mm |
| 32U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1610mm |
| 37U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1833mm |
| 42U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 2055mm |
| 45U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 2188mm |
| 47U | 600mm/750mm/800mm | 600mm/800mm/1000mm /1200mm | 2277mm |

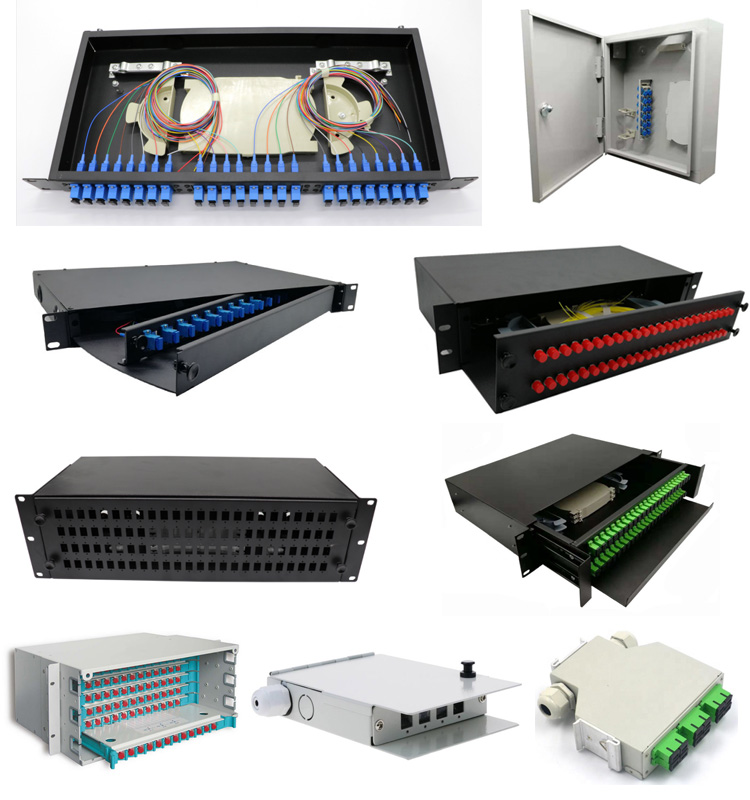

| Product Categories (Please click on more information) | ||
| Fiber Optic Cables | Fiber Optic Components | FTTH Solutions |
| Fiber Optic Management | Fiber Optic Equipment | Networking Products |
About Us
Faso Photonics Technology Limited Since 2007.
Faso Photonics Technology Limited is a professional manufacturer engaged in R & D, production and sales of optical fiber communication devces and ancilary prducts, ptical fiber patch panel, splicing enclosure etc.We have a complete and scientific quality management system. The company passed the certification of Bellcore,UL, ROHS, IS0 9001 standard system, strictly carries out 5S management, adopts the dust-free workshop, has advanced international equipment, and the qualfed rate of the products reaches 99.896. Companies in good faith, strength and quality of products recognized by the industry.

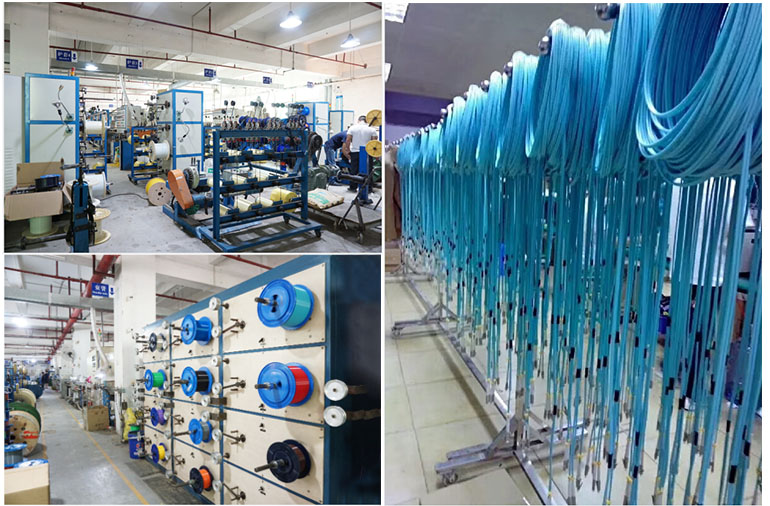

Manufacturing
We have majority of advanced equipment，ample space, high-tech public person, strict quality inspection which can provide a large number of high-quality products.

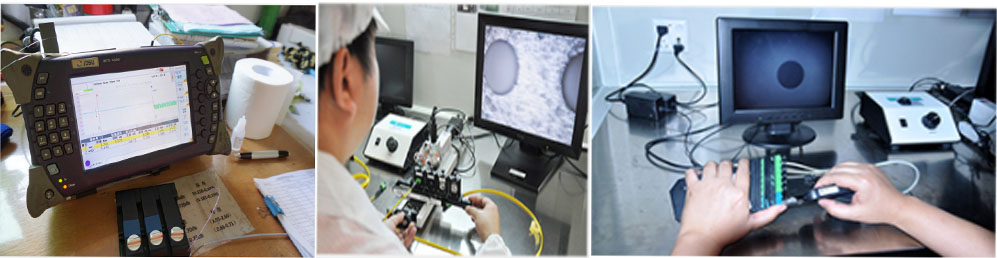

Testing
