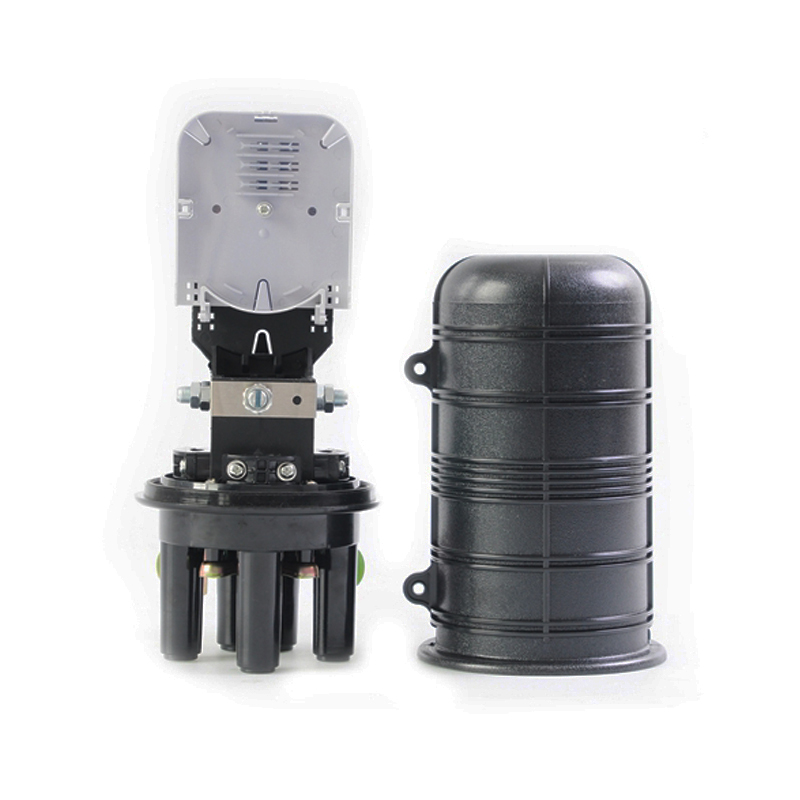

Heat Shrinkable Seal Fiber Optic Splice Dome Closure 8004H

Heat Shrinkable Seal Fiber Optic Splice Dome Closure

FASO provides various shapes closure of both type. All the fiber optic splice closure we offered are fully mechanical sealing structure which ensure a great sealing performance. High quality PC or ABS material also ensure the durability no matter the closure is in air, in pipeline or buried underground. FOSC-8004H fiber optic splice closure features the protective tray-buffer for splice fusion, which keeps fibers from the damage by the accidental fall of the trays. The housing of the enclosure adopts mechanical seal, and the cable ports employs heat shrink. Its Ingress Protection grade can reach IP68. Space for fiber storage is adequate, and relevant fiber management is convenient. The fiber optic splice closure supports wall mounting, pole mounting and manhole applications.

APPLICATION:

• Suitable for bunchy & ribbon fibers.
• Aerial
• Underground
• Wall-mounting
• Duct-mounting and handhole- mounting
• Ambient temperature ranges from –40℃ to +65℃.

FEATURES:

• Advanced internal structure design

• The closure is spacious enough for winding and storing fibers

• Flip style fiber splice trays are designed

• The curved radius meets with international standard

• Easy and fast to increase and reduce splice tray

• Innovative elastic integrated seal fitting

• With the function of reuse and capacity expansion

• Robust long-term environmental stability

TECHNICAL PARAMETERS:

• Working temperature: –40℃ to +60 ℃

• Atmospheric pressure: 70~106Kpa

• Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.

• High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.

• Tensile strength: 1000N

• Compressive strength: 2000N/10cm2 within 1 min

• Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground

• Dielectric strength: 15KV DC, 2min, without spark over and flying arc

• Working life: more than 20 years

SPECIFICATION:

MAIN COMPONENTS:
