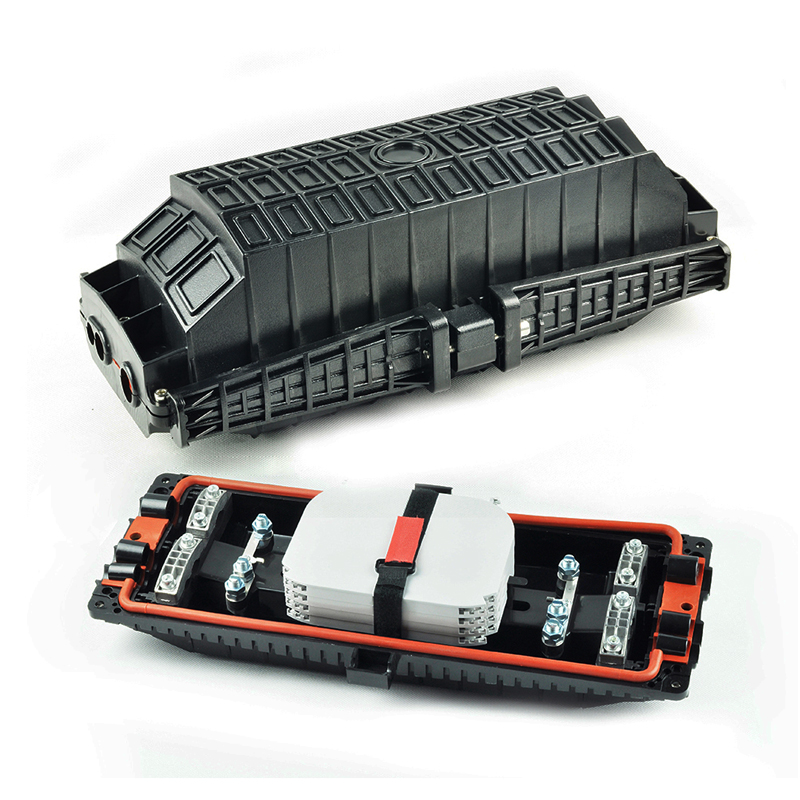

144 Core Horizontal Fiber optic cable splice joint closure
Optical Fiber Join Horizontal Inline Closure 144 Core
The joint closure box can be used in aerial, direct burial and duct. The strong housing and main components achieve fire-resistant, waterproof and quakeproof protection of splicing while pulling,tension and impact – it keeps joint enclosure used in bad natural environment for a long time while guarantee best quality of the product. This flexibility makes the Fiber Joint Enclosure suitable for almost any area of application. From distribution and branch off joints to connecting closures, the joint closure box is a strong performer in all disciplines and can be adapted to any task. The cable gripper is fastened outside the Fiber Optic Joint Enclosure – for example, this can be done quickly and easily on a work table. The inner mechanisms of the Fiber Joint Optical Enclosure remain undisturbed and protected during assembly work.
FEATURES:
Easy to assemble
- Aerial and wall-mounting.
Suitable for Φ5mm~Φ23mm cables
Aerial, underground, pipeline,man-holes,hand-holes assembling
- The protection grade reaches IP 68
- The closure is of small volume, big capacity and convenient maintenance.
- The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
- The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.
Adapt to the ambient temperature from -40℃ to +65℃
TECHNICAL PARAMETERS:
Working temperature: –40℃ to +60 ℃
Atmospheric pressure: 70~106Kpa
Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.
High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.
Tensile strength: 1000N
Compressive strength: 2000N/10cm2 within 1 min
Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground
Dielectric strength: 15KV DC, 2min, without spark over and flying arc
Working life: more than 20 years
APPLICATION:
Suitable for bunchy & ribbon fibers.
Aerial, underground, wall-mounting, hand hole-mounting, Pole-mounting and duct-mounting
MAIN COMPONENTS:
| Items | Quantity | Usage | Remarks |
| Housing | 1 set | Protecting fiber cable splices in whole | Internal diameter: 378*136 (mm) |
| Insert Plate | 2 pairs | Fixing the housing | 175*56*30 (mm) |
| Splice Tray (FOST) | Max. 8 pieces (bunchy) | Fixing heat shrink protective sleeve and holding fibers | Bunchy: 12, 24 (cores) |
| or 6 pieces (ribbon) | Ribbon: 6 pieces | ||
| Foundation | 1 set | Fixing fiber cable, reinforced core and FOST | N/A |
| Seal Fitting | 1 set | Sealing between FOSC cover and FOSC bottom | N/A |
| Port Plug | 6 pieces | Sealing empty ports | N/A |
| Pressure Testing Valve | 1 set | After injecting air it is used for pressure testing and sealing testing | Configuration as per requirement |
| Earthing Deriving Device | 1 set | Deriving metallic components of fiber cable in the FOSC for earthing connection | Configuration as per requirement |
SPECIFICATIONS:
| Outside Dimensions (L*W*H) | 450mm*220mm*160mm |
| Weight (excluding outside box) | 3100g -3800g |
| Number of Inlet / Outlet Ports | 3 input port 3 output port |
| Diameter of Fiber Cable | Φ5mm - Φ23mm |
| Capacity of FOSC | Bunchy: 12 cores - 288 cores |
| Ribbon: 72 cores - 288 cores |
