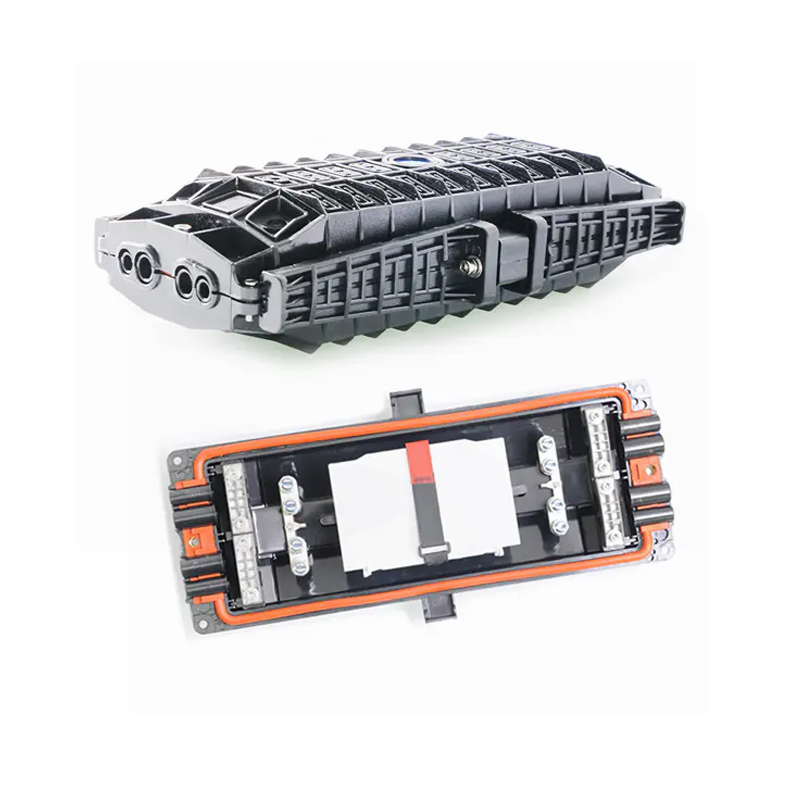

Optical Fiber Joint Horizontal Closure 144 Core 5007H
Optical Fiber Joint Horizontal Inline Closure 144 Core
The joint closure optic are used for optical fiber cable splicing and protection in outdoor environments with wide capability ranging from 12 to 144 fibers, IP68 protection. The fiber joint closure boasts optimum flexibility. The eight radially arranged, modular cable entries support all desired configurations and mixed assemblies of cables and micro ducts. Network operators have more freedom to tailor their plans and change them at short notice as conversions are always possible. Cables are laid laterally into the cable entries. There is no need to thread the fiber optic cable through the bottom of the Fiber Optic Enclosure. The cable entry kits can be opened, closed, changed, and retrofitted in just a few simple steps. The cable connectors and individual cables are always freely accessible. This concept is set to revolutionize the assembly process in the field and simplify maintenance work during operation.
FEATURES:
Easy to assemble
- Aerial and wall-mounting.
Suitable for Φ5mm~Φ20mm cables
Aerial, underground, pipeline,man-holes,hand-holes assembling
- The protection grade reaches IP 68
- The closure is of small volume, big capacity and convenient maintenance.
- The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

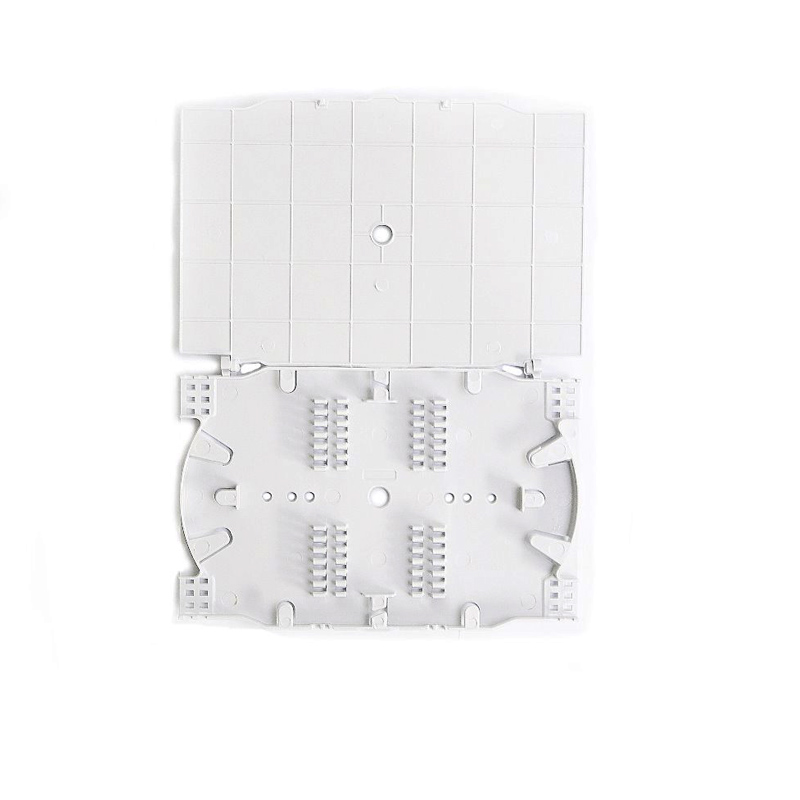

- The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.
Adapt to the ambient temperature from -40℃ to +65℃
TECHNICAL PARAMETERS:
Working temperature: –40℃ to +60 ℃
Atmospheric pressure: 70~106Kpa
Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.
High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.
Tensile strength: 1000N
Compressive strength: 2000N/10cm2 within 1 min
Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground
Dielectric strength: 15KV DC, 2min, without spark over and flying arc
Working life: more than 20 years
APPLICATION:
Suitable for bunchy & ribbon fibers.
Aerial, underground, wall-mounting, hand hole-mounting, Pole-mounting and duct-mounting

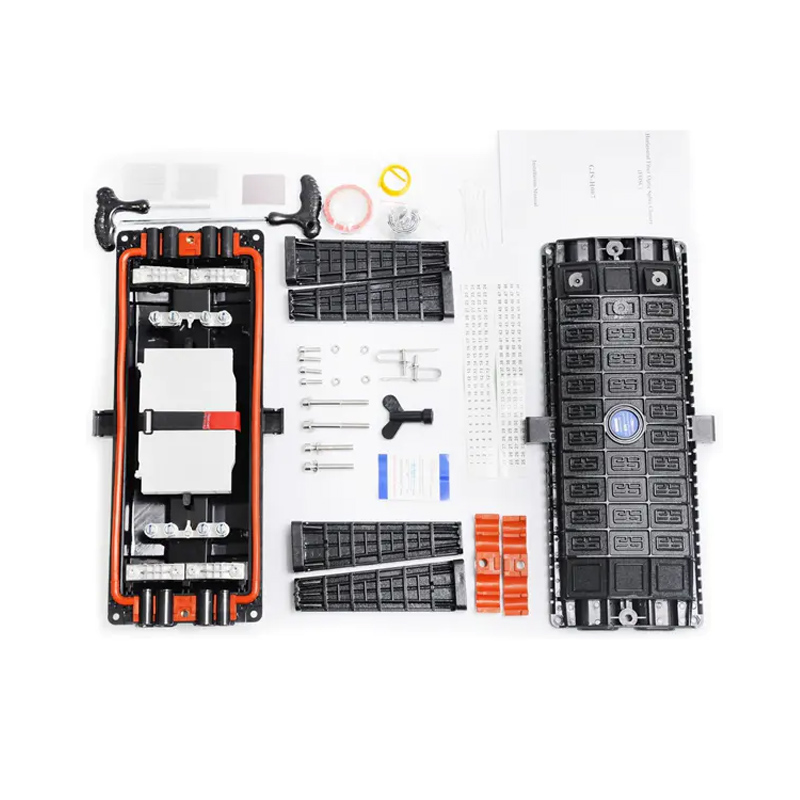

MAIN COMPONENTS:
| Item | Quantity | Usage | Remarks |
| Housing (bottom) | 1 set | Protecting fiber cable splices in whole | Internal diameter: 340*122 (mm) |
| Insert Plate | 1 set | Fixing the housing | 175*56*30 (mm) |
| Splice Tray (FOST) | Fixing heat shrink protective sleeve and holding fibers | Bunchy:12,24 (cores) | |
| Ribbon: 3 (pieces) | |||
| Foundation | 1 set | Fixing fiber cable, reinforced core and FOST | N/A |
| Seal Fitting | 8 sets | Sealing between FOSC cover and FOSC bottom | N/A |
| Port Plug | 4 pieces | Sealing empty ports | N/A |
| Pressure Testing Value | 1 set | After injecting air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| Earthing Deriving Device | 4 pieces | Deriving metallic parts of fiber cable in FOSC for earthing connection | Configuration as per requirement |
SPECIFICATIONS:
| Outside Dimensions (L*W*H) | 450mm*220mm*110mm |
| Weight (excluding outside box) | 2800g - 3300g |
| Number of Inlet / Outlet Ports | 4 pieces on each side (total 8 pieces) |
| Diameter of Fiber Cable | Φ8mm - Φ20mm |
| Capacity of FOSC | Bunchy: 12 cores - 96 cores |
| Ribbon: max. 144 cores |
