12 Cores OTB mini Termination Fiber Optic FTTH Distribution Box

12 Cores OTB mini Termination Fiber Optic FTTH Distribution Box

Model NO.: OTB-12
Delivery: FOB

Quantity:

Product Description

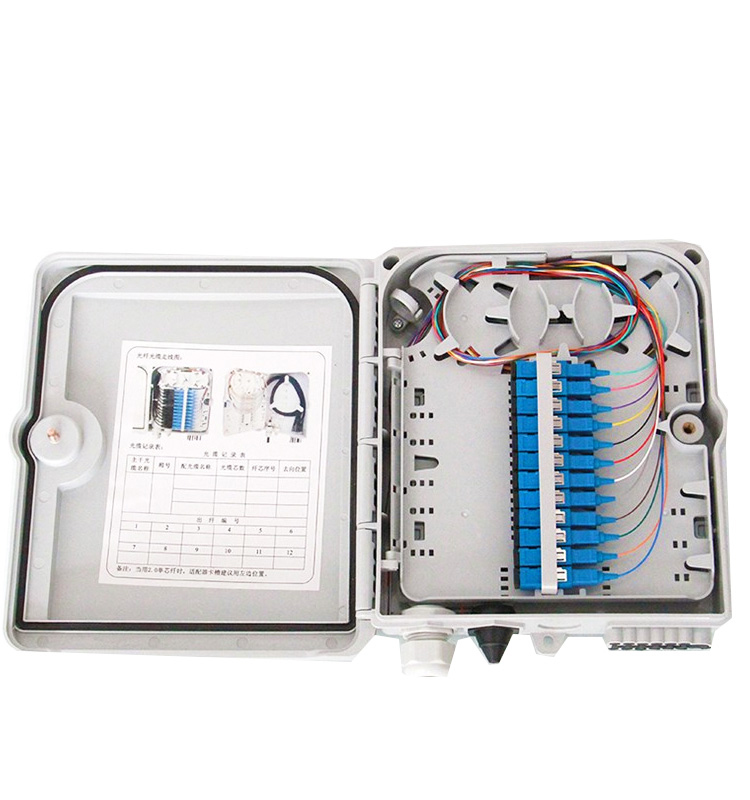

ftth distribution box

12 Cores OTB mini Termination Fiber Optic FTTH Distribution Box

The fiber optic wall mount termination box is used in wiring connection between optical cable and optical communication equipment.It is through adapter in distribution box and optical fiber jumper leads optical signal. It realize optical wiring function and can meet the optical splitter placed to achieve spectral function.It is applicable for wall-mounted and pole-mounted.

FEATURES:

The material is engineering plastic of high quality and it can be used for indoor,outdoor.
Rugged and reliable structure.
It is applicable for wall-mounted and pole-mounted.
Fiber cables both can entry from the bottom of the box.
Supports up to 2pcs 1×8 splitter modules or 1pc 1×16 splitter modules.
Compliant with fast-connector and FTTH cable.
Available to meet the cut connection function for the live cable.

APPLICATION:

Outdoor environment,IP55
Wall mount; pole mount
Comprehensive computer network engineering.
Intelligent Building Cabling
Fiber To The Home (FTTH)
Residential Intelligent Network System.
Campus Network, Enterprise Network.

SPECIFICATION:

Model Number	OTB-12
Name of the product	Optic Terminal Box
Environmental temperature	-20°C~+55°C
Relative temperature	≤ 85%(+30°C)
weight	2kg
Atmospheric pressure	70kpa~106kpa
Adapter type	SC LC
Fiber type	G652D,G657A,OM1-OM4Supports up to 2pcs 1×8 splitter modules or 1pc 1×16 splitter modules.
Size	22018062mm
application	Wall mount; pole mount
Characteristic	easy to install,maintain and manage
Accessory	12 pcs shrinking tube sleeves ,expansion tube,ribbon,and sleeve

Testing

All products have passed professional tests in order to providing better quality guarentee.

Testing

Certification

After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.

Certification
