| Box Type | Features |

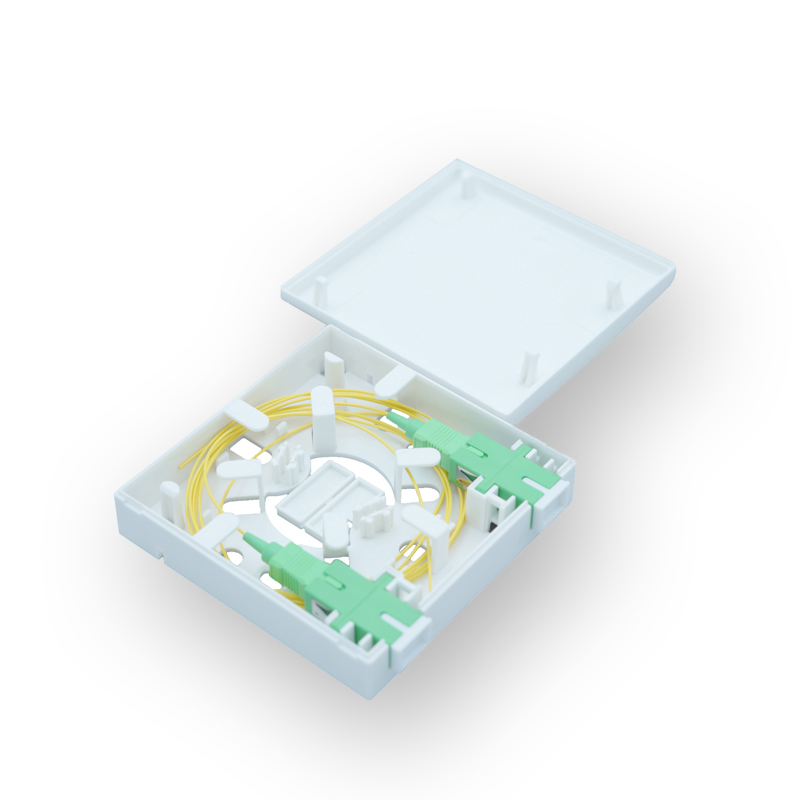

2 Cores
| - Water-proof design with IP-66 Protection level.
- Integrated with splice cassette and cable management rods.
- Manage fibers in a reasonable fiber radius condition.
- Easy to maintain and extend the capacity.
- Fiber bend radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- 1*2 Splitter can be installed as an option.
- Efficient cable management.
- 2 ports cable entrance for drop cable
|

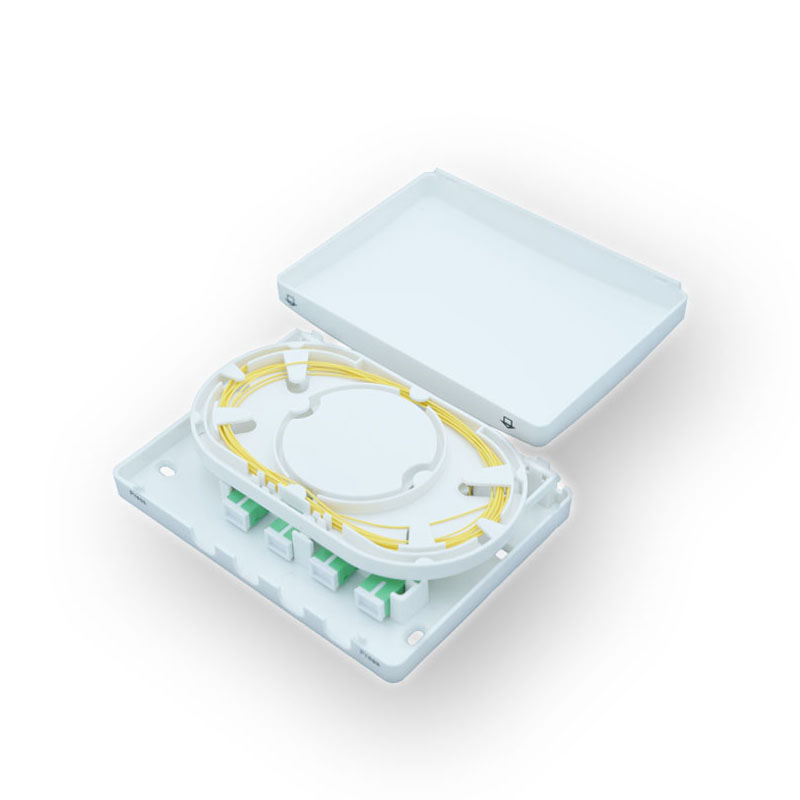

4 Cores
| - Wall mountable and rack mountable
- Fire resistant
- The base and cover of the box adopts a"self-clip"method, which is easy and convenient to open and clos
- Can be used with SC simplex adapters or LC duplex adapters with a SC footprin
- The max capacity is 4 fibers
- FTTH,LAN network and CATV system application.
- Light weight, small cubage, small installation size, realizable sealing.
- Could be connected FTTH Drop cables inside. Design the splicing place for Mechanical Splice
- The base and cover of the box adopts “self-clip” &”screw-clip” two times lock method, which is better to use in outdoor for high sealing and waterproof.
|

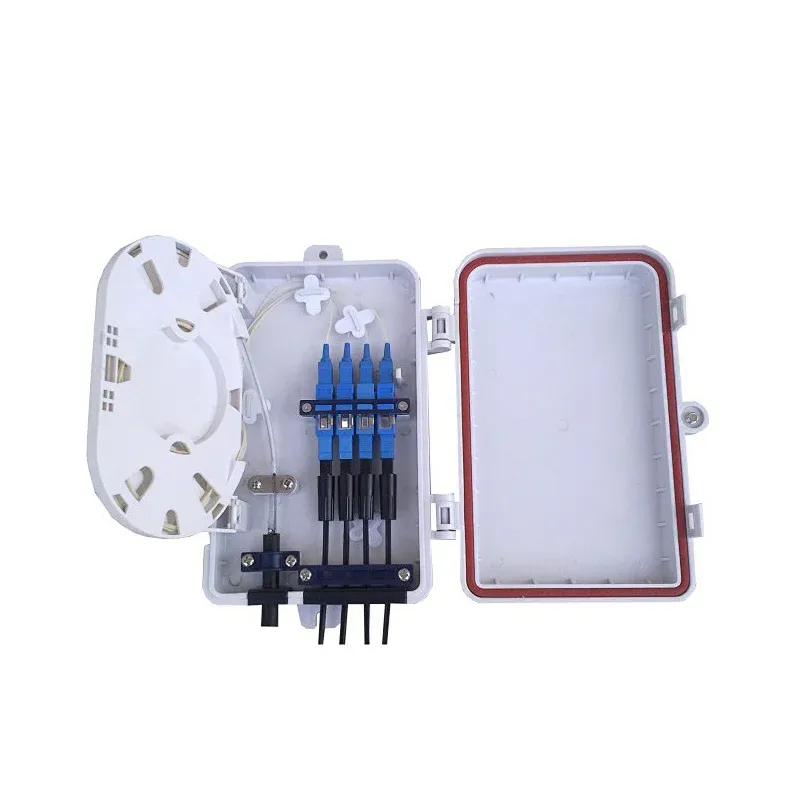

6 Cores
 | - FTTH,LAN network and CATV system application.
- Available for 1*2/1*4 PLC Splitter. Design to protect PLC splitter.
- Suit for both Outdoor & Indoor. IP65 Grade.
- Waterproof, Anti-UV(UL-94V0), Ultra violet resistant and rainfall resistant.
- Light weight, small cubage, small installation size,realizable sealing.
- Could be connected FTTH Drop cables inside. Design the splicing place for Mechanical Splice
- The base and cover of the box adopts “self-clip”&”screw-clip”two times lock method, which is better to use in outdoor for high sealing and waterproof.
|

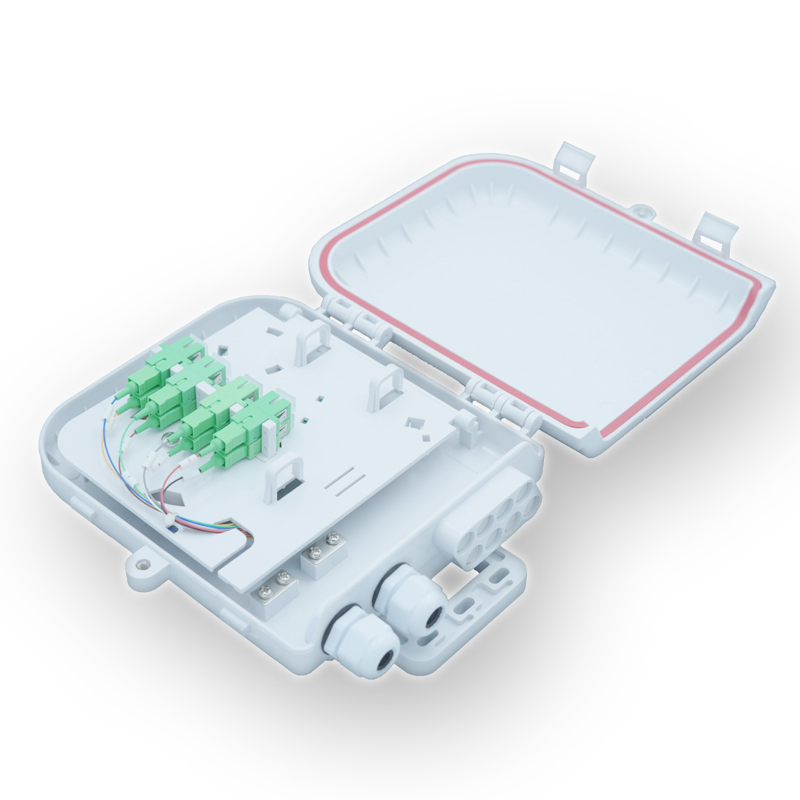

8 Cores
| - Water-proof design for outdoor uses.
- Easy installations: Ready for wall mount – installation kits provided.
- Adapter slots used – No screws and tools needed for installing adapters.
- Ready for splitters: designed space for adding splitters.
- Space saving! Double-layer design for easier installation and maintenances.
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting and fiber distribution.
- Cable fixing units provided for fixing the outdoor optical cable.
- Protection Level: IP65.
- Accommodates both cable glands and tie-wraps.
- Lock provided for extra security.
- ABS material ensures the box body strong and light.
|

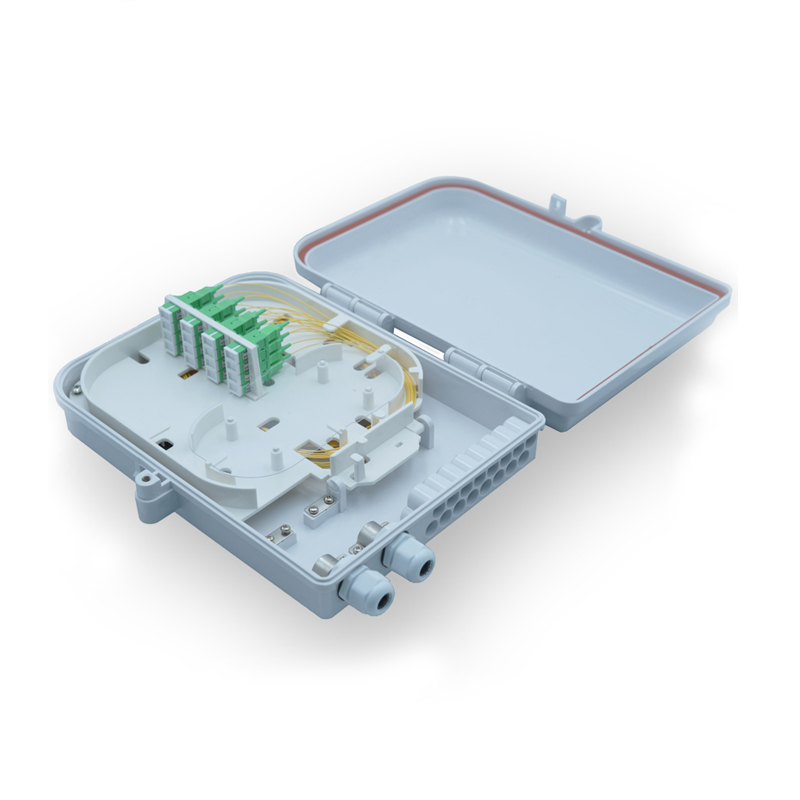

12 cores
 | - The material is engineering plastic of high quality and it can be used for indoor,outdoor.
- Rugged and reliable structure.
- It is applicable for wall-mounted and pole-mounted.
- Fiber cables both can entry from the bottom of the box.
- Supports up to 2pcs 1×8 splitter modules or 1pc 1×16 splitter modules.
- Compliant with fast-connector and FTTH cable.
- Available to meet the cut connection function for the live cable.
|

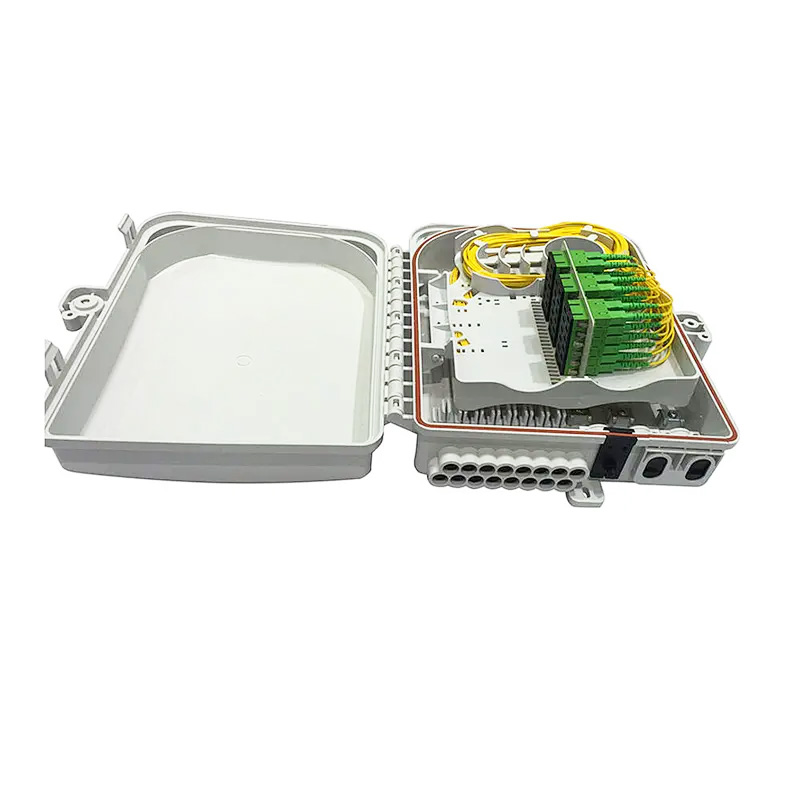

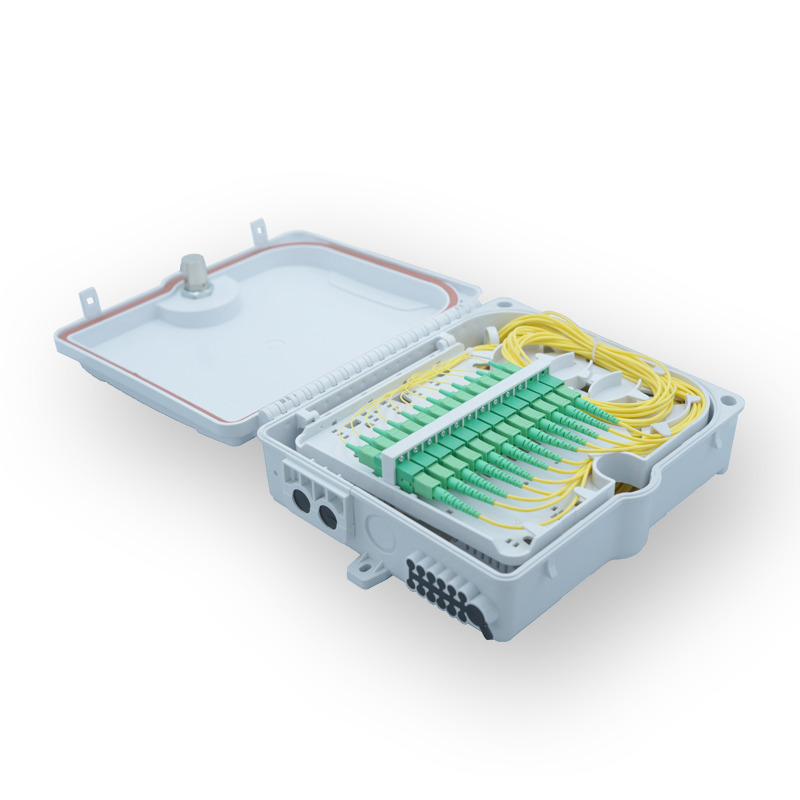

16 cores
 | - FTTH,LAN network and CATV system application.
- Available for 1*2/1*4/1*6 PLC Splitter. Design to protect PLC splitter.
- Suit for both Outdoor & Indoor. IP65 Grade.
- Waterproof, Anti-UV(UL-94V0), Ultra violet resistant and rainfall resistant.
- Light weight, small cubage, small installation size,realizable sealing.
- Could be connected with FTTH Drop cables inside. Design the splicing place for MechanicalSplice.
- The base and cover of the box adopts “self-clip”&”screw-clip”two times lock method, which is better to use in outdoor for high sealing and waterproof.
|

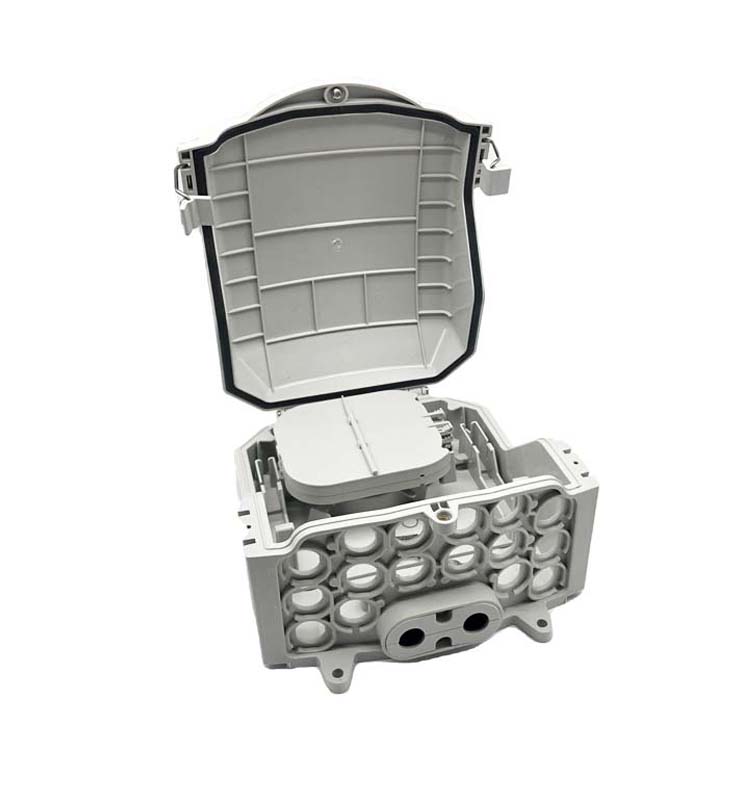

16 cores
 | - Water-proof design with IP-66 Protection level.
- Integrated with splice cassette and cable management rods.
- Manage fibers in a reasonable fiber radius condition.
- Easy to maintain and extend the capacity.
- Fiber bend radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- 1*16 Splitter can be installed as an option.
- Efficient cable management.
- 16 ports cable entrance for drop cable.
|
16 cores
 | - Total enclosed structure.
- Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one.
- Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
- Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
|

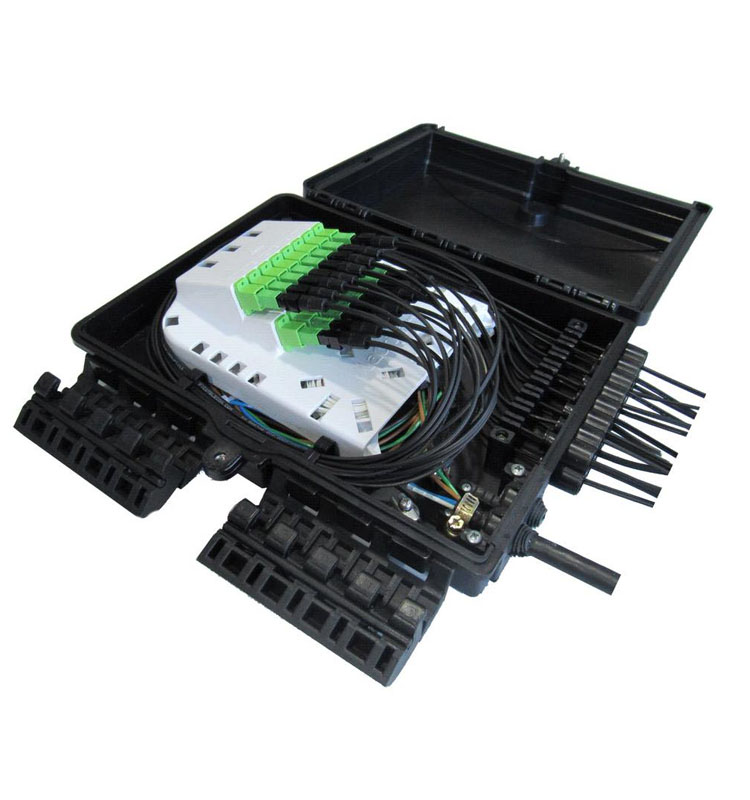

24 cores
 | - Applicable for (indoor and outdoor) (pole-mounted, wall-mounted).
- Waterproof design for outdoor use, Protection grade: IP65
- Drop resistance, ability to work under vertical pressure of 500N.
- Easy installations: Ready for wall mount installation kits provided.
- Adapter slots used, SC/LC type, no screws and tools needed for installing adapters.
- Ready for splitters: designed space for adding splitters.
- Double-layer design for easier installation and maintenances
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting and fiber distribution.
- Adapter baseboard and optical installation box baseboard uses a rotary design.
- The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain;
- Box of body use"lock type"structure: Box of body switching of simple, convenient, with a lock function
- Size: 330*240*97mm, G.W.: 1.5kg
- Color: Light grey
|

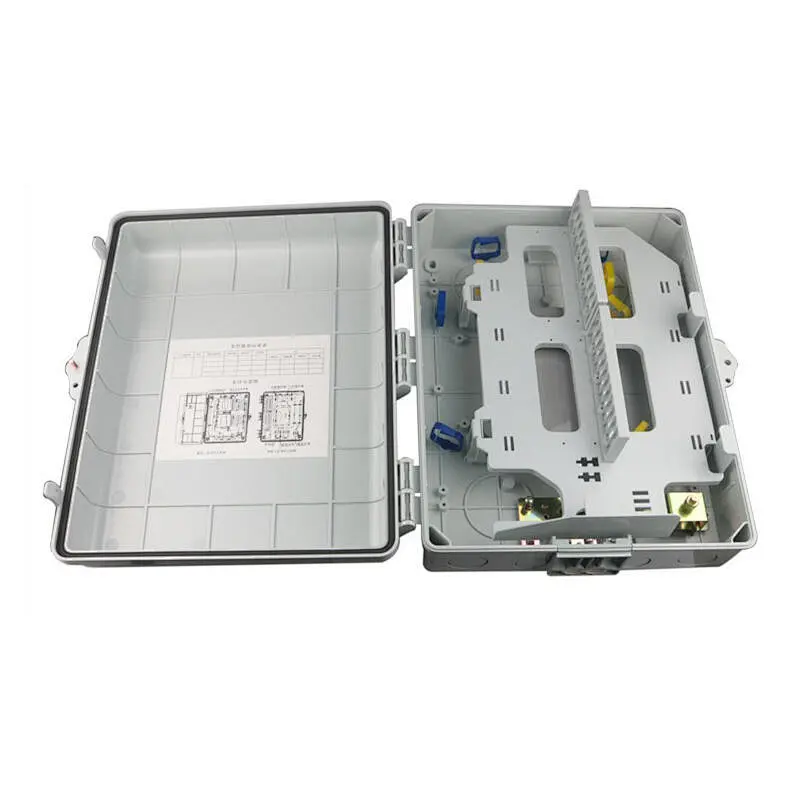

48 cores
 | - Industry standard user interface.
- ABS+PC material used ensures the body strong and light.
- UV resistance design for outdoor uses.
- Water-proof design with IP-66 Protection level.
- Easy installations.
- Wall and pole mountable.
- Space saving. Double-layer design for easier installation and maintenance.
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting and fiber distribution.
- Manage fibers in a reasonable fiber radius condition.
- Easy to maintain and extend the capacity.
- Fiber bend radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- Efficient cable management.
|

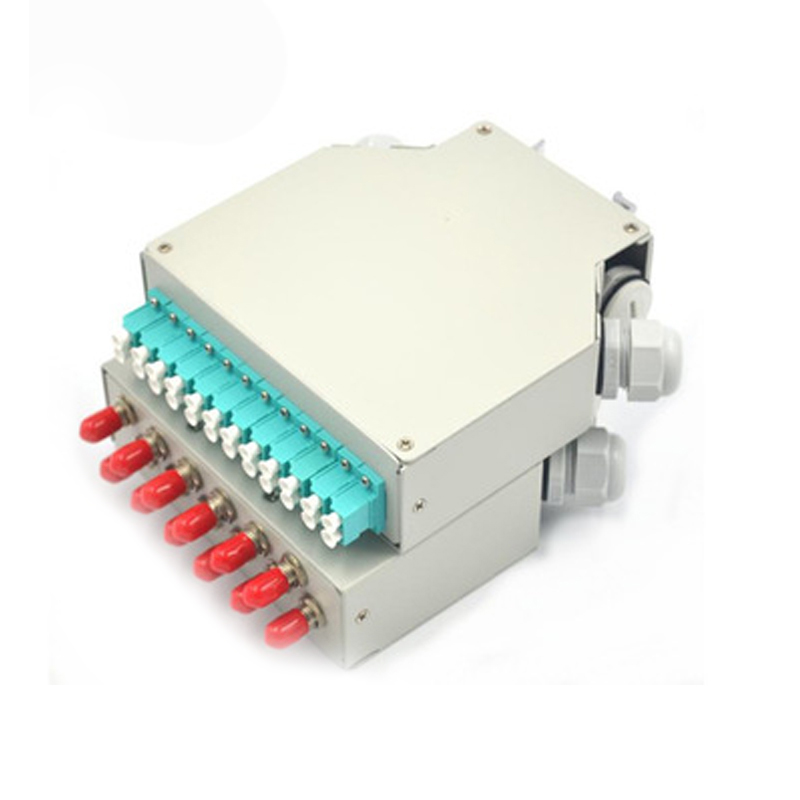

Din Rail Box
 | - Reasonable design, aluminum box, light weight
- Electrostatic powder painting, grey or black color
- ABS plastic blue splice tray, rotatable design, compact structure
- Max. 24 fibers capacity
- FC, ST, LC, SC etc. , ifferent adapter port available
- DIN rail mounted application
|
