ODF 4 port ftth fiber optic wall mounted terminal splice box
ODF 4 port ftth fiber optic wall mounted terminal splice box

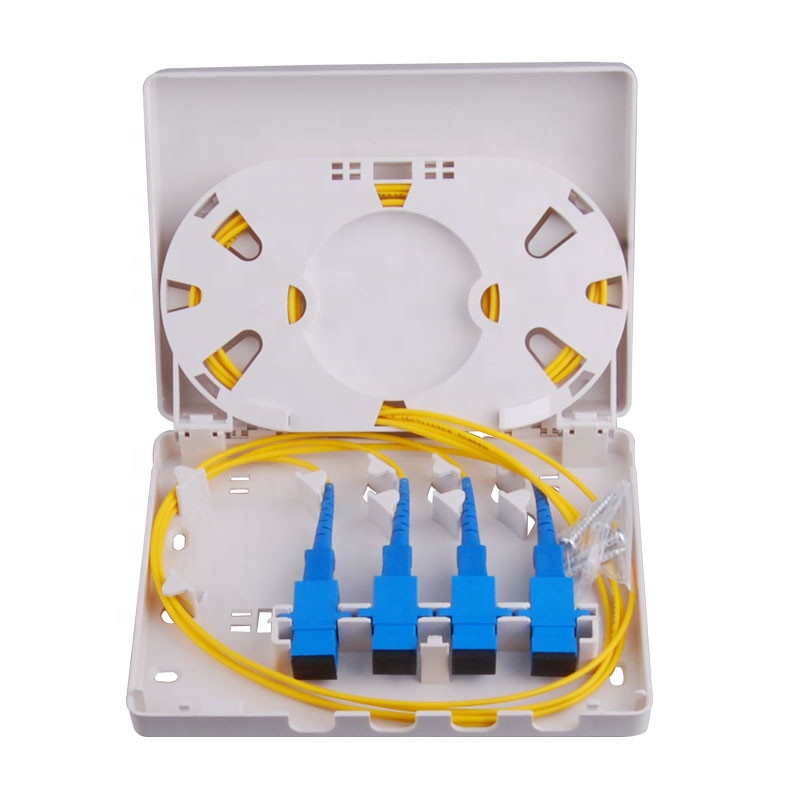

The FTTH Termination Box 4 fibers is a newly developed FTTH box for indoor applications. The fiber optic splice box outdoor is used for wall-mounted and rack-mounted applications, and mainly used in villas, commercial office buildings, Internet cafes, family and other users. It can be used to install SC adapters, the max capacity is 4 fibers.Our 4 port FTTH fiber termination box is wall mountable and rack mountable and can be used for exterior walls, basements, and other locations needing FTTH. The box is fire resistant and can be used with a variety of adapters with a SC footprint.
FEATURES:
- Wall mountable and rack mountable
- Fire resistant
- The base and cover of the box adopts a"self-clip"method, which is easy and convenient to open and clos
- Can be used with SC simplex adapters or LC duplex adapters with a SC footprin
- The max capacity is 4 fibers
- FTTH,LAN network and CATV system application.
- Available for 1*2/1*4/1*6 PLC Splitter. Design to protect PLC splitter.
- Suit for both Outdoor & Indoor. IP65 Grade.
- Waterproof, Anti-UV(UL-94V0), Ultra violet resistant and rainfall resistant.
- Light weight, small cubage, small installation size, realizable sealing.
- Could be connected FTTH Drop cables inside. Design the splicing place for Mechanical Splice
- The base and cover of the box adopts “self-clip” &”screw-clip” two times lock method, which is better to use in outdoor for high sealing and waterproof.
SPECIFICATION:
Model | Capacity | Size(mm) | Weight (kg) |
4port | 8ports | 210(W)X140(H)x40(D) | 0.45 |
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
