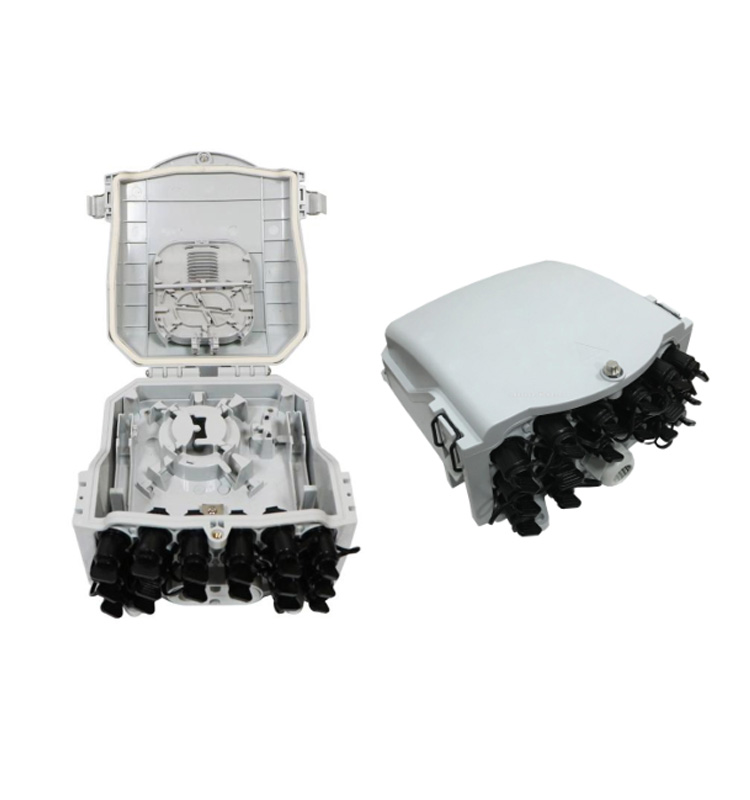

16 Core CTO Pre-terminated Distribution Box FTTH Drop Cable Box

The ftth fiber optic termination box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be used in this box and meanwhile it provides solid protection and management for the FTTx network building.

Features

1. Total enclosed structure.

2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one.

4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.

5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Specification

Material	PC+ABS

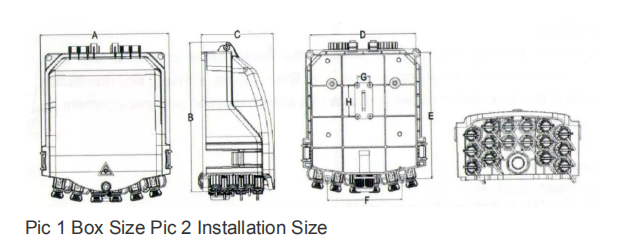

Dimension (Pic 1) ABC(mm)	208241117mm
Max Capacity	16 ports SC
Input cable diameter(mm)	Max 18mm
Color	Grey
Working temperature	-40℃~+85℃
Relative humidity	≤85%(+30℃)
Atmospheric pressure	70KPa~106Kpa
Installation Size(Pic 2)(mm)	DEF 179212126

Thunder-proof technical datasheet

1.The insulation resistance between the grounding device and the metal parts of the box is no less than 2 x 10² x 10²MΩ/500V(DC);IR≥2x 10² x 10²MΩ/500V

2.The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
