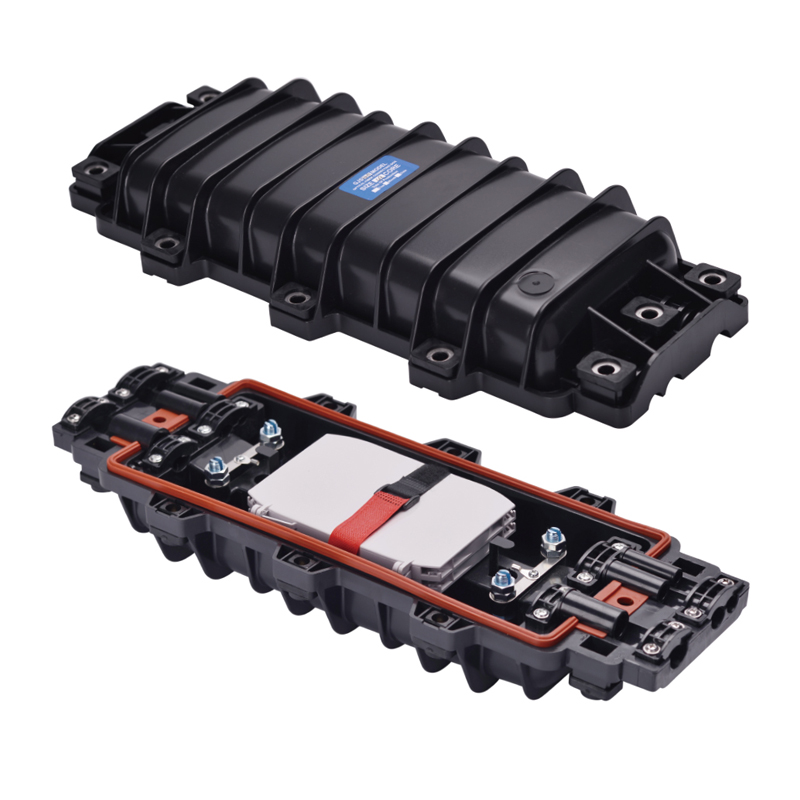

5009H Optical Fiber Joint Horizontal Inline Closure 144 Core
Optical Fiber Join Horizontal Inline Closure 144 Core
The optical fibre cable joint closure, also known as fiber optic splicing closures, is a fiber optic equipment used to offer storage space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely either in the outside plant or indoor buildings. Usually, You can see Fiber Optic Splice Closure in Aerial, Duct or Direct buried type in installations. Fiber optic closure can provide protection for the fiber joint and the fiber cables since they have excellent mechanical strength and strong out shell, which ensures the joints are not damaged by the hostile environment.
Horizontal fiber optic closure are designed to be waterproof and dustproof. They have good adaptability and compression resistance, for they are commonly made of high tensile construction plastic. If attached to a pole or hung from wiring, these fiber splice closures need to be held firmly in place, to avoid damage from weather and wind.
FEATURES:
Easy to assemble
- Aerial and wall-mounting.
Suitable for Φ5mm~Φ20mm cables
Aerial, underground, pipeline,man-holes,hand-holes assembling
- The protection grade reaches IP 68
- The closure is of small volume, big capacity and convenient maintenance.
- The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

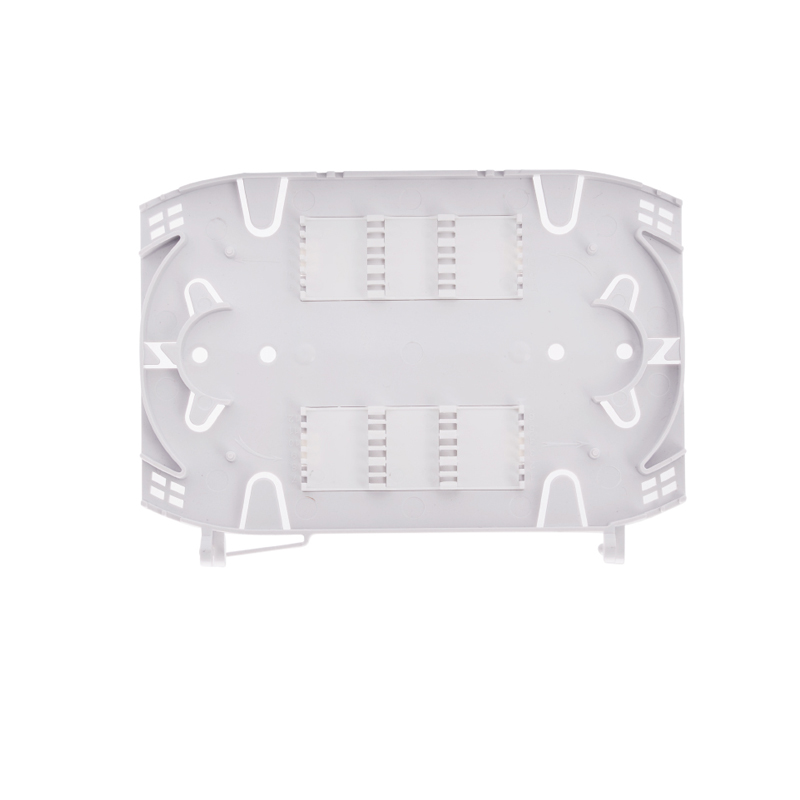

- The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.
Adapt to the ambient temperature from -40℃ to +65℃
TECHNICAL PARAMETERS:
Working temperature: –40℃ to +60 ℃
Atmospheric pressure: 70~106Kpa
Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.
High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.
Tensile strength: 1000N
Compressive strength: 2000N/10cm2 within 1 min
Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground
Dielectric strength: 15KV DC, 2min, without spark over and flying arc
Working life: more than 20 years
APPLICATION:
Suitable for bunchy & ribbon fibers.
Aerial, underground, wall-mounting, hand hole-mounting, Pole-mounting and duct-mounting

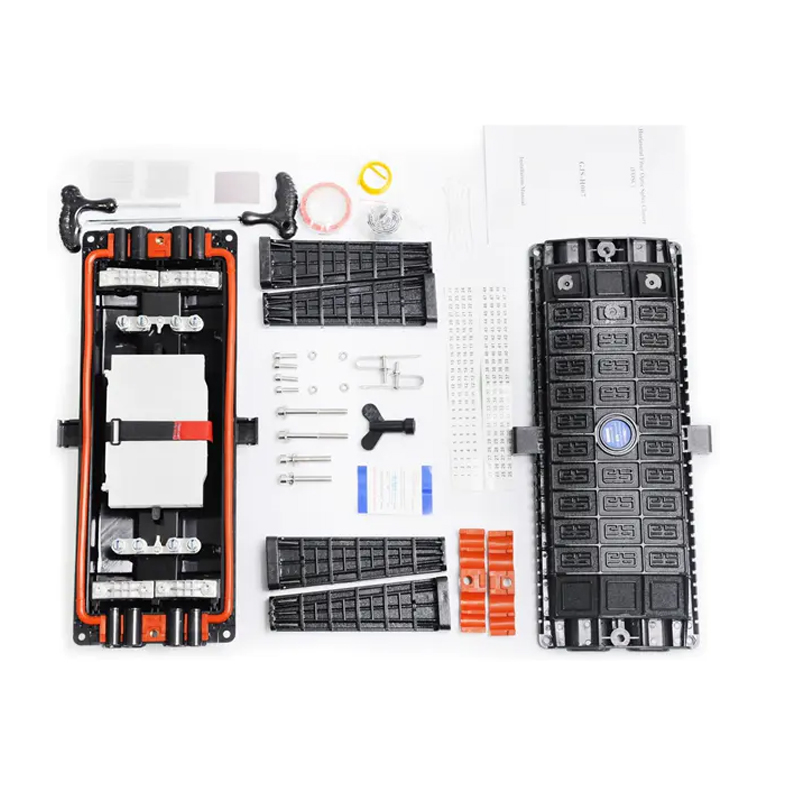

MAIN COMPONENTS:
| Name of Components | Quantity | Usage | Remarks |
| Housing (bottom) | 1 set | Protecting fiber cable splices in whole | Internal diameter: 605*215*120 (mm) |
| Housing (cover) | 1 set | Protecting fiber cable splices in whole | Internal diameter: 605*215*120 (mm) |
| Splice Tray (FOST) | Fixing heat shrink protective sleeve and holding fibers | N/A | |
| Seal Fitting | 1 set | Sealing between FOSC cover and FOSC bottom | N/A |
| Ring | 8 sets | N/A | N/A |
| Port Plug | 4 pieces | Sealing empty ports | N/A |
| Fixed Bolt | 1 set | Fixing the housing | N/A |
SPECIFICATIONS:
| Outside Dimensions (L*W*H) | 605mm*215mm*120mm |
| Weight (excluding outside box) | 3050g - 4600g |
| Number of Inlet / Outlet Ports | 2 pieces on each side (total 4 pieces) |
| Diameter of Fiber Cable | Φ8mm - Φ23mm |
| Capacity of FOSC | Bunchy: 48 cores - 144 cores |
| Ribbon: max. 576 cores |
