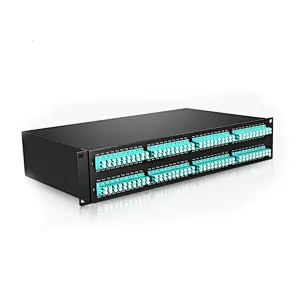

Fiber Optics 288 Core 2U MPO Patch Panel
2u fiber patch panel can compact size for installation inside shallow depth racks.2U Ultra High Density (UHD) Chassis is the part of the system for high density fifiber optics infrastructure and management in Data Centers, Telecommunication and Enterprise network environment. 2U chassis can house up to 12 x UHD Modules- design allows to scale up to 288x LC ports and 2304 fifibers using MPO Interface.
Product Details

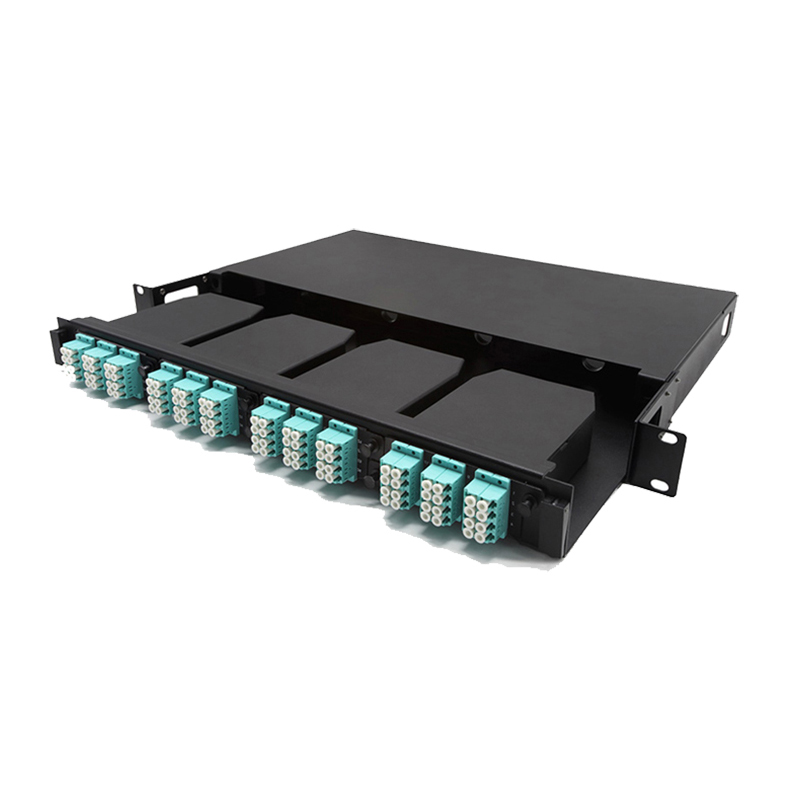

Product name:fiber optic mpo patch panel
Certification:RoHS
Dimension:483mm*206mm*44.5mm
Color:Black, White
Faceplate Type:LC,SC,ST,FC
Material:Cold Rolled Steel
Weight:3.5KG
Fiber Type:SM/MM/OM3/OM4
Operating temperature:-25 ~ +40
Type:Racks & Enclosure
No. of Fiber:288
Use:FTTH
Place of Origin:CN;GUA
Brand Name:FASO
Model Number:288 Port Patchpanel
FEATURES:
• Ultra High Density
• Up to 288 LC ports in 2U
• Up to 2304 fifibers using MPO Interface
• Compact size for installation inside shallow depth racks
• Open chassis free access module installation
• Secure easy access lock/release mechanism
• Front and rear module access
• Facilitated patch cord installation
• Cable management accessories
APPLICATION:
• Data center storage area networks
• Central offiffiffice, POP
• LAN
• Enterprise campus
ACCESSORIES：
Nylon Locking Tie Wraps | 3PCS |
Cable Hoop | 2PCS |
M6 Rack-Screw | 4PCS |
Fix Cable Sticker | 3PCS |
