MTP MPO Rack Mounted 4U Module Chassis Fiber Optic Patch Panel
MTP MPO Rack Mounted 4U Module Chassis Fiber Optic Patch Panel

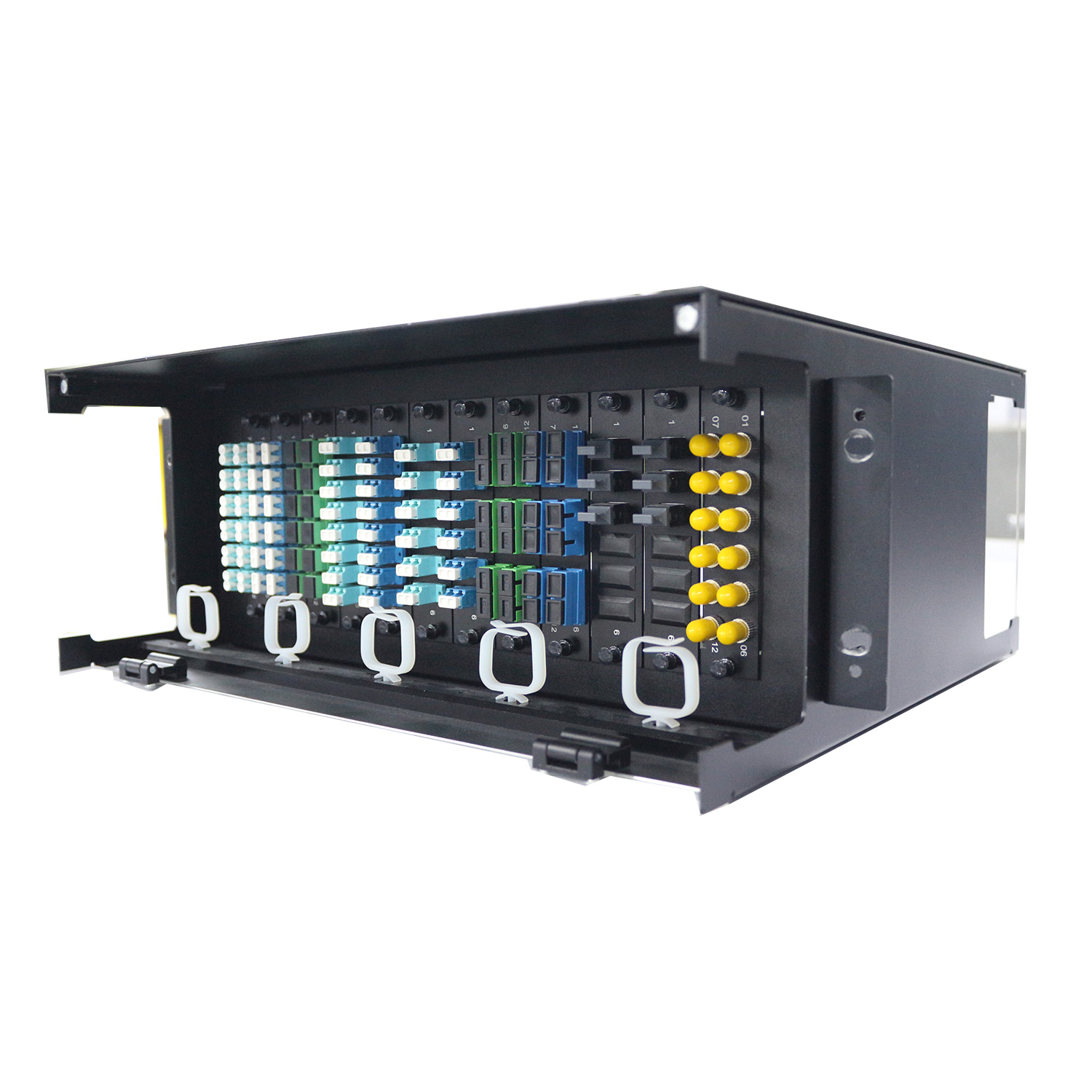

FHD 4U rack mount sliding fiber enclosure, which can house 12pcs FHD series MTP® modular cassettes or fiber optic patch panel. It is ideal for fast, flexible and reliable patch field solutions within main, horizontal and equipment distribution areas (MDA, HDA and EDA). FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
FEATURES:
- Adopts high quality engineering plastics and Aluminum alloy material
- MPO faceplate can be upgraded easily.
- All the front port are with mark no.easy to identify.
- Quick and easy installed, flexible in configuration and easy to management
APPLICATION:
- Machine rooms of data center and internet
- Data communication network
- Optical system access network
- Storage area networking fiber channel
- High density architectures
Performance MPO/MTP Connectors
Fiber Type | Single Mode | Multi-mode | |
Standard Insertion Loss | Typical(dB) | ≤0.7 | ≤0.5 |
Low Insertion Loss | Typical(dB) | ≤0.35 | ≤0.35 |
Return Loss (dB) | ≥60(APC) | ≥30(PC) | |
≥50(PC) | |||
Tensile Strength (kgf) | 10 | ||
Durability(dB) | ≤0.2 500 matings | ||
Working Temperature(ºC) | -40 ~+85 | ||
Testing Wavelength (nm) | 1310/1550 | 850 | |

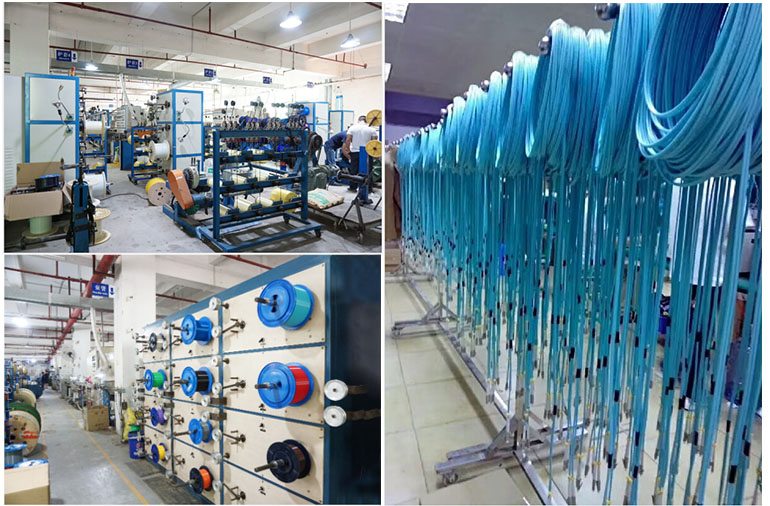

Manufacturing
We have majority of advanced equipment，ample space, high-tech public person, strict quality inspection which can provide a large number of high-quality products.
Testing
All products have passed professional tests in order to providing better quality guarentee.
