Central Loose Tube Mining Optical Fiber Cable
Central Loose Tube Mining Optical Fiber Cable

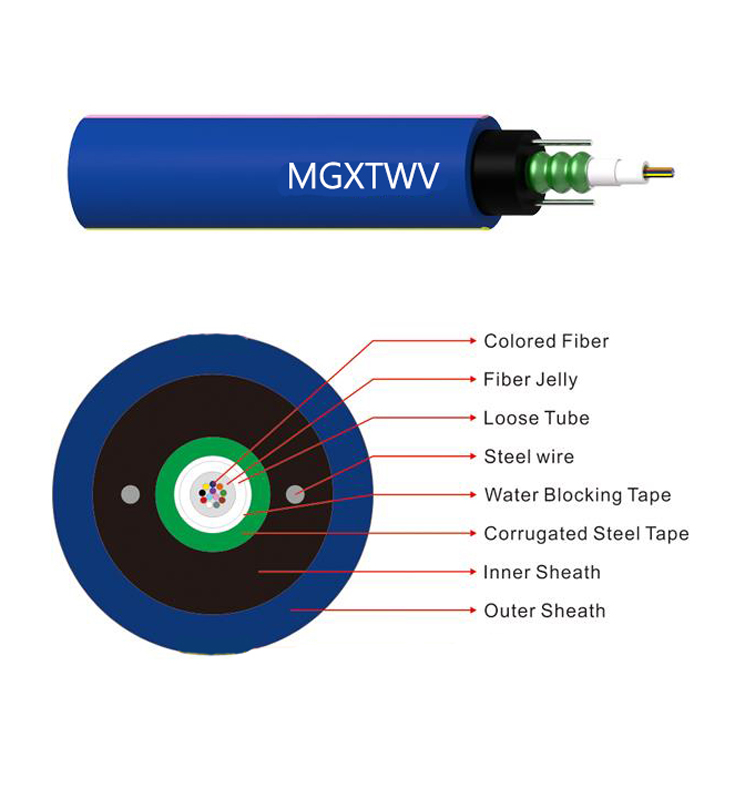

The central loose tube cable, 200μm or 250μm, are positioned in a loose tube which is made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, over a thin inner PE sheath. The optic fiber cable is completed with a polyethylene (PE) outer sheath.
Features:
Good mechanical and temperature performance
High strength loose tube has good performance of water proof and high strength
Special tube filling compound ensure a critical protection of fiber
Crush resistance.
Two parallel steel wires ensure tensile strength
PSP enhancing moisture-proof and anti rodent
Good water resistance material prevent longitudinal seepage
Blue flame retardant PVC as second sheath to make the cable has good flame retardant performance.
Optical Characteristics:
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
(+20℃) | @1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
|
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
|
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
| |
Technical Parameters:
Cable | Fiber Count | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength | Crush Resistance Long/Short Term N/100m | Bending Radius Static/Dynamic mm |
MGXTSWV-2～12 | 2～12 | 11 | 130 | 500/1000 | 500/1500 | 15D/30D |
