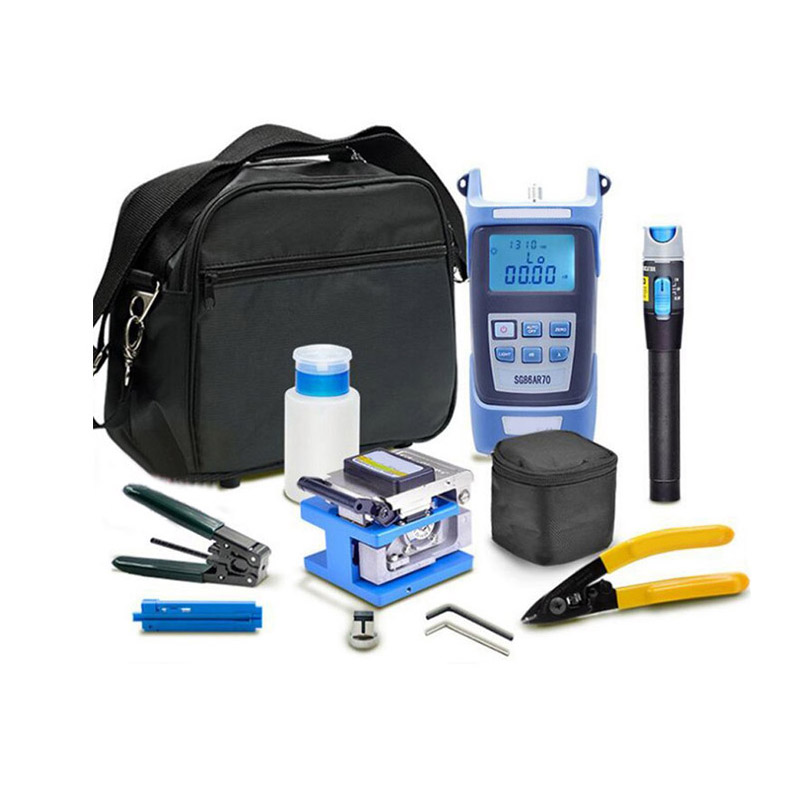

Fiber Optic FTTH Tool Kit
Fiber Optic FTTH Tool Kit
The fiber optic ftth tool kit is a simple and convenient integration solution for FTTH fiber-to-the-home quick-connect construction, such as, stripping, fiber cutting, cleaning and testing. It is economical and practical, and is an ideal tool for construction operators. The Fiber Optic FTTH tool kit Combined the function of the in-door cable stripper, cleaver, cleaning, and testing.erfect tool kits in the fiber optic Installation and maintenance.
FEATURES:
- Use with Pre-Polished Fiber Optic Connectors
- Cut down on overall fiber installation cost by reducing termination time
- Field assembly, No polishing required
- Fast and easy to terminate
- Compact waterproof protection bag
- Encourages safe handling of fiber off-cuts
SPECIFICATION:
| Model | Fiber Optic FTTH Tool Kit FTH-01 |
| Measurement range | -70~+10 |
| Type of probe | InGaAs |
| Range of wave length | 800~1700 |
| Uncertainty | ±5% |
| Standard wave length (nm) | 850,980,1300,1310,1490,1550, 1625nm |
| Resolution | Linear indication: 0.1% Logarithmic indication: 0.01dBm |
| Working temperature (°C) | -10~+60 |
| Storage temperature (°C) | -25~+70 |
| Auto power-off time (min) | 10min |
| Continuous working hours | At least 48 hours |
| Dimensions (mm) | 190×100×48mm |
| Power supply | AA battery |
| Weight(g) | 400g |
Item 1: Optical power meter
Color Orange or Blue optional,
Default measurement range: -70~+10dBm
Support SC, FC, ST connector,
Support testing for 7 kind of wavelength
Support regular shut down with backlight, automatic shut down
Item 2: Visual Fault locator 5KM
Optical pen/Red laser pointer 5km, other distance 10/20/30km optional
Imported laser head, High thermal conductivity
Aluninum alloy case, good durability
Item 3: FC-6S fiber cleaver
Imported refining tungsten steel blade , Automatic rebound
Precision Blade features 12 blade positions with 3,000 cleavers per position
Item 4: Miller Clamp
125um fiber coating layer for peeling
Top 1.98mm open hole stripping out shield
Item 5: Wire Stripper
Used for 3.1 x 2.0 mm rubber-insulated wire
Belt scale, fatigue resistance, pressure resistance
Item 6: Alcohol Bump Bottle
Offering empty plastic bottle
Item 7: Carry Bag
Portable bag/Toolkit, is made of high-density oxford fabric
Unbreakable, Wear-resistant, Waterproof
Item 8: Others
Other accessories,"L"Tool, FC Adapter, etc
