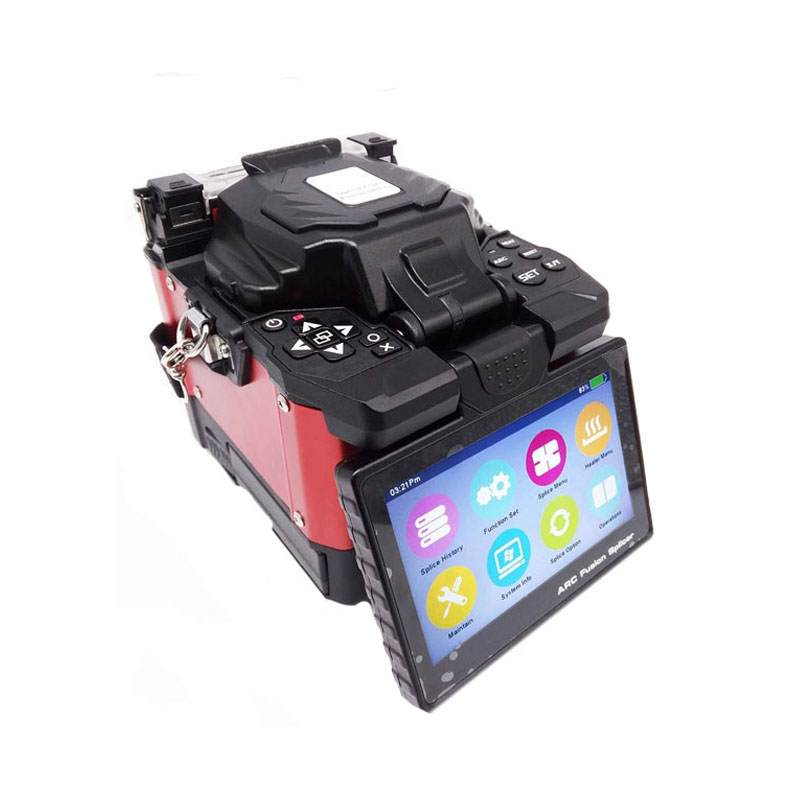

fiber optic machine fusion splicer
fiber optic machine fusion splicer
The best fiber fusion splicer is one of the most powerful and intelligent fusion splicing machines and adopts PAS fiber adjustment technology. It has industrial-level Quad-core CPU( Mainly 1.4 GHz ), featuring low power cost and high performances, equipping with 5"High-Resolution color LED touch screen for easy operations, achieving industry's magnification of 500X so that fiber conditions can be easily inspected with unaided eyes. With precise Core Alignment Splicing Method and magnification of 500X, fiber fusion splicer has become one of the most excellent and reliable fusion splicing machines in global market. It also provides high capacity battery of 5200mAH for working even further in the field, which is typical 280 splicing/heating cycles. FASO brings unlimited convenience. With its excellent and stable performances, Fusion Splicer has become one of the most reliable and effective fusion splicer in global market.
FEATURES:
- Fiber Alignment Splicing Method
- Mirror less Design, Fast Splicing Time
- High efficiency, Above 500 times of Magnification and Resolution
- Bright LED light for dark environment
- 5” High-Resolution Color LCD Touch Screen,
- Easy to replace electrodes, Adapt to harsh weathers
- Anti dust and high temperature, Ceramic Clamp for Better
- Durability, High capacity battery
SPECIFICATION:
| Model | Fusion Splicer FS-16S |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber / Cable | 0.25~3.0 mm / Indoor Cable (0.9mm/2.0mm/2.4mm) |
| Cleaved Length Diameter: | 0.125~1 mm / Cleave Length: 8~16 mm |
| Splicing Mode | Multiple splicing modes |
| Typical Splice Loss | 0.01-0.05db |
| Return Loss | >> 60 dB |
| Lighting | 1 Powerful White LED and illuminated Keypads |
| Splicing Time | 6~8 seconds |
| Estimated Splice Loss | Available |
| Protection Sleeve Length | 20~60 mm |
| Heating Mode | Multi heating modes |
| Heating Time | typical heating time: 30 sec |
| Results Storage | The last 5000 results |
| Tension Test | 1.5~2.0N |
| Operating Condition | Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s |
| Storage Condition | 0~95% relative humidity, -40~80°C |
| Display | 90° bi-directional view, 5.0” 800*480 Color High Resolution Display with touch screen |
| Fiber View & Magnification | X, Y, XY, X/Y : 500X Magnification |
| Power Supply | AC Input 100-240V, DC Input 12-15V |
| No of Splice / Heating with Battery | 5200mAh Battery Capacity, Typical above 280 times (Splice+Heat) |
| Operating Methods | Button / Touch screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 3500 arcs, can be extended by using an electrode grinder |
| Terminal | USB2.0 / Phone Jack |
| Dimension | 140W x 165L x 160H mm (including rubber bumper) / 130W x 165L x 150H mm(excluding rubber bumper) |
| Weight | 2.0KG (including rubber bumper) / 1.7KG (excluding rubber bumper)/ 0.38KG |
PACKING LIST:
| Fusion Splicer | 1 |
| High Precision Cleaver | 1 |
| Fiber Holder | 1 |
| SOC Heater Cover | 1 |
| AC Adapter | 1 |
| Cooling Tray | 1 |
| Electrode | 1 |
| Fiber Optic Stripper | 1 |
| Battery Pack | 1 |
| Power Cable | 1 |
| Manual book Manual | 1 |
| Manual CD | 1 |
| Carrying Case | 1 |
Testing
All products have passed professional tests in order to providing better quality guarentee.
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
