fiber optic splicing machine fusion
FS-4108S fusion splicer
Delivery
FOB
Quantity:
fiber optic splicing machine fusion
The tough and rugged FS-4108S Core-to-Core Alignment optical fiber fusion splicer is drop/impact, dirt/dust and water resistant. We're proud to provide 3 Year Warranty, and all Service and Support. The optical fiber fusion splicer employs high-speed image processing and special positioning technology allowing the fusion splicing to be completed in as little as a fast 6 seconds and can heat shrink in as little as 10 seconds. The splicer is compact in size, lightweight, and is ideal to work just about anywhere including harsh outdoor environments, dark and remote worksites.
FEATURES:
- 5 inches high Resolution colorful LCD display
- Average splice time: 10 second
- Average tube-heat time: 30 seconds
- Lithium battery: up to 180 times of continuous splice and heat
- Simultaneous X and Y views with 180 times magnification
- New developed technology providing wind and dust resistance
- Splicing mode： Auto & Manual & Full-Automation
- USB Port
- Storing 6,000 groups of splice results.
- Multipurpose optical fiber fixture (Such as: Rubber-insulated wire, fiber optic patch cord, bare fiber)
SPECIFICATION:
| Applicable Fibers | SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥60dB |
| Tension Test | 2.0N(200gf)（ Standard） |
| Splicing Program | 50 groups |
| Protection Sleeve Length | 20mm, 40mm, 60mm |
| Language | Chinese, English |
| Environmental Conditions | -10～+50℃(operation temperature),0～95% RH(humidity), 0～5000m(altitude) |
| Power Supply | AC adaptor: 100～240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) DC adaptor: 12V voltage 8AH |
| Dimensions | 155(W)*165(D) *150(H) |
| Weight | 2.5kg |

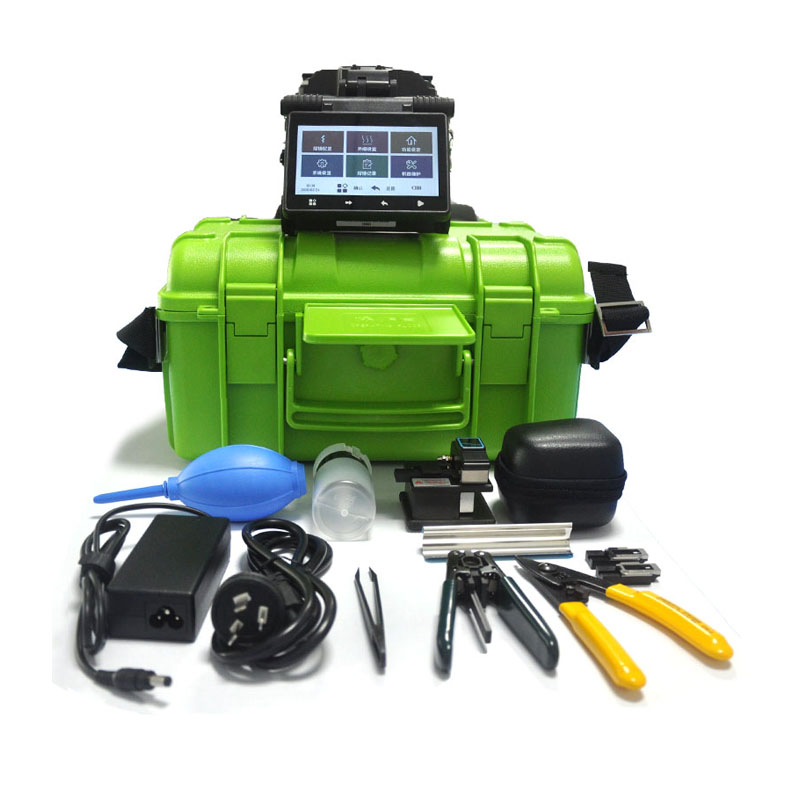

CONFIGURATION:
| No. | Item | Quantity |
| 1 | Machine (4108 ) | 1 |
| 2 | Fiber Cleaver(601-1071) | 1 |
| 3 | Fiber Stripper | 1 |
| 4 | AC Adaptor(602-120500D) | 1 |
| 5 | Battery(603-1072) | 1 |
| 6 | Charger(602-126250W) | 1 |
| 7 | Spare Electrodes | 1 |
| 8 | Cooling Tray | 1 |
| 9 | Instruction CD | 1 |
| 10 | Quick Reference Guide | 1 |
| 11 | Rubber-insulated wire stripping pliers | 1 |
| 12 | Rubber-insulated wire cutting fixture | 1 |
| 13 | One fixture which is avoid the fiber in Rubber-insulated wire broken down | 1 |
| 14 | Transit Case with Carrying Strap | 1 |
