FTTH Round GJYFJH Cable Double Sheath for Outdoor Indoor Use 4.6mm 5.0mm 6.0mm
FTTH Round GJYFJH Cable Double Sheath for Outdoor/Indoor Use 4.6mm

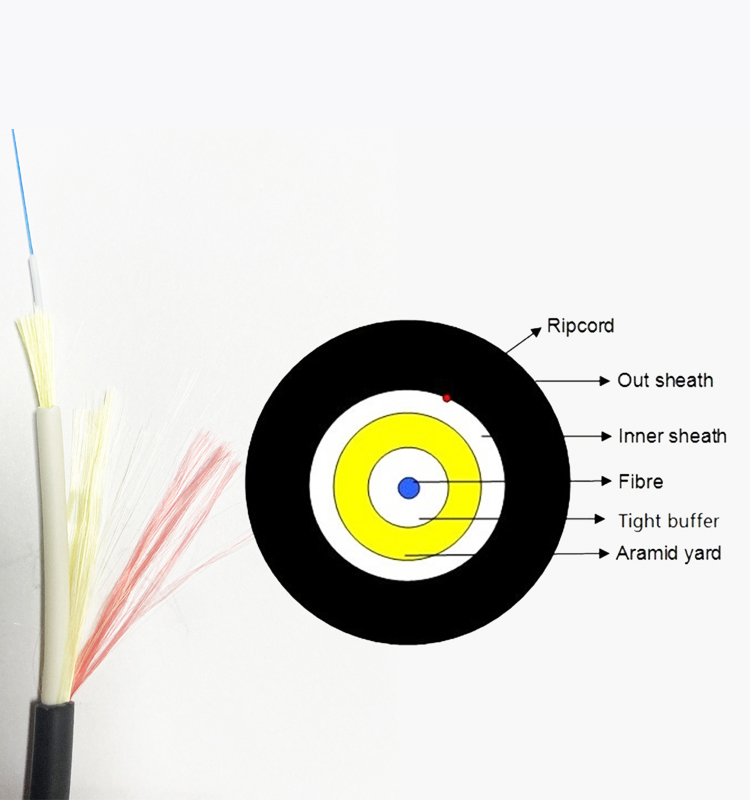

Cable Characteristics:
High strength aramid yarn strength member ensures high tensile strength and long term stability in transmission
Small outer diameter,lightweight,flame-retardant,easy to strip,low attenuation,physically soft
Direct splicing between tight buffer cables and need no tie-in box or pigtail
Suitable for installation,operation,and convenient for maintenance
double sheath Applications:
As building to building connecting cable
As indoor soft cable along the wall,ceiling,between layers and in conduits
As pigtails,movable connectors and patch cords for communication equipment
Cable Technical Parameters:
Fiber Count | 1 | |
OD(mm) | 4.5±/0.2 | |
Cable | Material | UV - LSZH |
Thickness(mm) | 0.9±0.1 |
|
OD(mm) | 3.0±0.1 |
|
Inner cable | Material | LSZH |
Thickness(mm) | 0.5±0.05 |
|
OD(mm) | 0.85±0.05 |
|
Buffer | Material | LSZH |
Nominal weigh t(kg/km) | 24 |
|
Max.tensile Strength(N) | Long-term | 120 |
Short-term | 240 |
|
Min.Bending Radius(mm) | Static | 10D |
Dynamic | 20D |
|
Max.Crush Resistance(N/100mm) | Long-term | 300 |
Short-term | 1000 |
|
Strength Members | Aramid yarn |
|
Environmental Protection | RoHS COMPLIANT |
|
Storage ortransportation | -20~70℃ |
|
Operation | -20~60℃ |
|
Temperature range | Installation | -20~60℃ |
Optical Characteristics G657A2:
Characteristics | Conditions | Specified Values | Units |
Geometrical characteristics |
|
|
|
Cladding diameter | 125.0±0.7 | µm |
|
Cladding non-circularity | ≤0.7 | % |
|
Coating diameter | 245±5 | µm |
|
Coating/cladding concentricity error | ≤12 | µm |
|
Coating non-circularity | ≤6.0 | % |
|
Core/cladding concentricity error | ≤0.5 | µm |
|
Curl | ≥4 | m |
|
Optical characteristics | |||
1310nm | ≤0.35 | dB/km |
|
1383nm | ≤0.35 | dB/km |
|
1550nm | ≤0.21 | dB/km |
|
Attenuation | 1625nm | ≤0.23 | dB/km |
Attenuation vs. Wavelength | 1525~1575nm | ≤0.02 | MHz*km |
1285~1330nm | ≤0.03 | MHz*km |
|
Zero dispersion wavelength | 1300~1324 | nm |
|
Zero dispersion slope | ≤0.092 | ps/(nm2*km) |
|
Polarization mode dispersion |
|
|
|
PMD maximum individual fibre | ≤0.1 | ps/km1/2 |
|
PMD design link value | ≤0.06 | ps/km1/2 |
|
Typical force | 0.04 | ps/km1/2 |
|
Cable cut off wavelength | ≤1260 | nm |
|
Mode field diameter | 1550nm | 9.3~10.3 | µm |
1310nm | 8.4~9.3 | µm |
|
Group index of refraction | 1550nm | 1.467 |
|
1310nm | 1.466 |
|
|
Environmental characteristics | 1310nm、 1550nm&1625nm | ||
Temperature cycling | -60℃ to +85℃ | ≤0.05 | dB/km |
Temperature-humidity cycling | -10℃ to +85℃, | ≤0.05 | dB/km |
Water immersion | 23℃, 30 days | ≤0.05 | dB/km |
Dry heat | 85℃, 30 days | ≤0.05 | dB/km |
Damp heat | 85℃, 85%RH, 30 days | ≤0.05 | dB/km |
Mechanical specification | |||
Proof test | ≥9.0 | N | |
≥1.0 | % | ||
≥100 | kpsi | ||
Macro bending induced loss |
|
|
|
1Turns @5mm Radius | 1550nm | ≤0.15 | dB |
1Turns @5mm Radius | 1625mm | ≤0.45 | dB |
1Turns @7.5mm Radius | 1550nm | ≤0.08 | dB |
1Turns @7.5mm Radius | 1625mm | ≤0.25 | dB |
1Turns @10mm Radius | 1550nm | ≤0.03 | dB |
1Turns @10mm Radius | 1625mm | ≤0.10 | dB |
Coating strip force | Typical average force | 1.5 | N |
Peak force | ≥1.3 ≤8.9 | N |
|
Dynamic stress corrosion susceptibility parameter | 27 | ||
