FTTH Outdoor Drop Cable GJYFCH
FTTH Outdoor Drop Cable GJYFCH/GJYCH

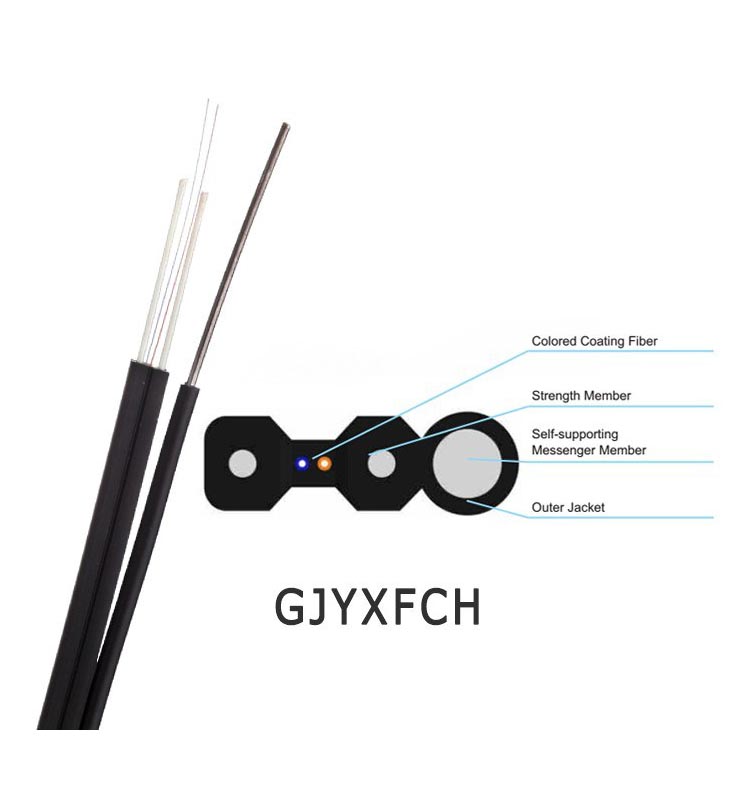

The ftth drop fiber optic cable (GJYXFCH/GJYXCH) is also called self-supporting butterfly drop optical cable with a indoor butterfly cable and an additional strength member 1-12 fiber cores. Outdoor drop cable is for outdoor communication applications. LSZH sheath is extruded outside for application of fiber to the home.
Main Features:
Single mode optical fiber meeting single mode G652d, G657a1/2 etc
Individually colored optical fibers
Notched 2 x 4 mm construction for easy stripping
Self-supporting structure, light weight, easy to install
Durable and flame retardant LSZH sheath, low smoke zero halogen
Steel wire as additional strength member has high tensile strength
Two parallel KFRP strength members ensure good performance of anti-electromagnetic and crush resistance
Applications:
Outdoor aerial application
Used in the FTTH projects
High speed optical routes in building
High performance optical network operation
Construction | |
|---|---|
Jacket & Buffers | |
Jacket Material | LSZH |
Tight buffer fiber Diameter | 250μm ± 50μm |
Strength Member | Steel Wire |
Fiber Size | 9 / 125 micron |
Buffer Diameters | |
Primary Buffer | 250μm |
Cladding | |
diameter(μm) | 125±1.0 |
Technical Data-Transmission | ||||||||
|---|---|---|---|---|---|---|---|---|
Fiber Type | G657A2 | |||||||
1310nm / 1550nm | ||||||||
Attenuation | Typical | 0.36dB / 0.22dB | ||||||
Maximum | 0.5dB / 0.4dB | |||||||
Macro-bend induced attenuation(@1550nm) | 1turn, 15mm diameter | ≤0.5dB | ||||||
1turn, 20mm diameter | ≤0.1dB | |||||||
10turn, 30mm diameter | ≤0.03dB | |||||||
Zero Dispersion Slope | ps/km·nm2 | ≤0.092 ps/km·nm2 | ||||||
Mode field Diameter Cutoff wavelength cable | μm | 8.8±0.4μm | ||||||
nm | ≤1260nm | |||||||

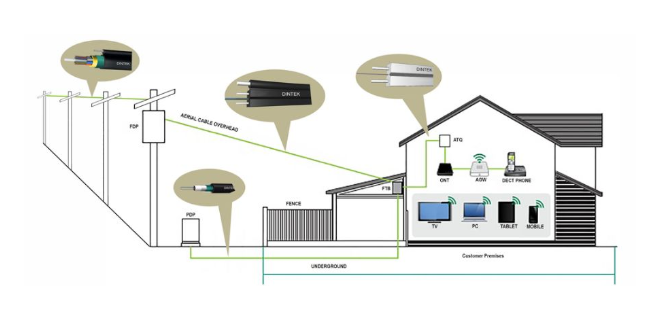

FTTX Network Cabling Used:
