Handheld Smart Mini Pro Multi function OTDR with Event Map
Handheld Smart Mini Pro Multi function OTDR with Event Map

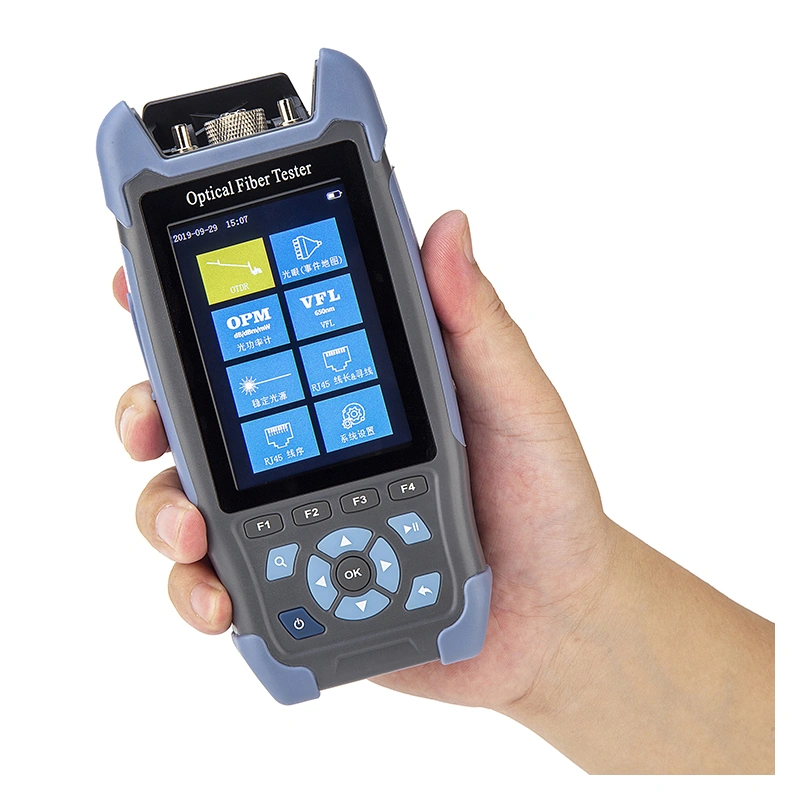

OTDR-3302S mini pro otdr is apply to FTTx and access network construction and maintenance, to test fiber breakpoint, length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shock-proof and drop-proof. The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source, Optical power meter, Visual fault locator, cable sequence proofreading, cable length measurement and lighting functions. It could quick detection of breakpoint, universal connector, 600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging. It is a good choice for long term field work.
FUNCTIONS:
- (9 functions in 1 device)
- OTDR: 1310/1550nm, 24/22dB, 5m~60KM
- Event Map (similar to EXFO iOLM)
- Optical Power Meter: -50~+26dBm
- Optical Light Source: 1310/1550nm, >-5dBm
- Visual Fault Locator: >=10mW
- RJ45 Ethernet Cable Sequence
- RJ45 Ethernet Cable Distance
- RJ45 Ethernet Cable Tracker
- LED Light
APPLICATION:
- FTTx last-mile troubleshooting
- Point-to-point link testing
- CATV network testing
SPECIFICATION:
| Mini-Pro OTDR | ||
| Model | OTDR-3302S | |
| Wavelength | 1310nm/1550nm±20nm | |
| Fiber Type | G.652 SM Fiber | |
| Dynamic Range | 24dB/22dB | |
| Test Range | 5m~60km | |
| Event Blind Zone | 3m | |
| ATT Blind Zone | 8m | |
| Pulse Width | 3ns~10us | |
| Ranging Accuracy | ± (1m+Sampling Interval +0.005%*Test Distance) | |
| Loss Accuracy | ±0.2dB/dB | |
| Sampling Points | 16k~128k | |
| Sampling Resolution | 0.05m~8m | |
| Reflection Accuracy | ±3dB | |
| Data Storage | Internal:≥600, External: TF Card | |
| Laser Safety Level | ClassⅡlevel | |
| File Format | SOR Standard File Format | |
| Connector | FC/UPC (Interchangeable SC, ST) | |
| Optical Power Meter | ||
| Wave Range | 800nm~1700nm | |
| Interface Type | Universal FC/SC/ST | |
| Test Range | -50dBm~+26dBm | |
| Uncertainty | ±5% | |
| Frequency Identification | CW/270/330/1k/2kHz | |
| Calibration Wavelength | 850/980/1300/1310/1490/1550/1625/1650nm | |
| Optical Light Source | ||
| LD Type | FP-LD | |
| Output Wavelength | 1550nm±20nm | 1310nm/1550nm±20nm |
| Output Power | ≥-5dBm | |
| Modulation Frequency | 270/330/1k/2kHz | |
| Stability | CW, ±0.5dB/15min (Test after15mins of preheating) | |
| Connector | FC/UPC (Interchangeable SC, ST) | |
| VFL | ||
| Work Wavelength | 650nm±20nm | |
| Output Power | ≥10mW | |
| Mode | CW/1Hz/2Hz | |
| Connector | FC/SC/ST | |
| RJ45 Cable Length Measurement | ||
| Test Range | 1000m | |
| Other Parameters | ||
| Display | 3.5 inch Color LCD | |
| Data Interface | Micro USB | |
| External Storage | TF Card | |
| Power Supply | Polymer Li-battery: 3.7V, 4000mAh, Power Adapter: 5VDC, 2A | |
| Battery Life | Standby>20h, Measuring Time>12h | |
| Operating Temperature | -10℃~+50℃ | |
| Storage Temperature | -40℃~+70℃ | |
| Relative Humidity | 0~95%Non Condensing | |
| Weight | ≤350g | |
| Dimension | 173mm*82mm*37mm | |
Note:
1. Test Temperature 25℃±2℃, Maximum pulse width, Average time≥3min.
2. Test conditions of Event Blind Zone are minimum range, minimum pulse width, reflection loss of optical end≥45dB, typical value.
CONFIGURATION:
| NO | Name | Qty | Remark |
| 1 | Host | 1 | Battery Include |
| 2 | Adapter | 1 | |
| 3 | Data Line | 1 | |
| 4 | CD (Analysis software, User Manual) | 1 | |
| 5 | User Manual | 1 | |
| 6 | SC/UPC Connector | 1 | |
| 7 | Calibration Certification | 1 | |
| 8 | Qualification Certificate/Service Guarantee Card | 1 | |
| 9 | Clean Cotton Slices | 10 | |
| 10 | Instrument Bag | 1 |
