Handled Optical Fiber Light Source
OLS-1305 Optical Light Source
Delivery
FOB
Quantity:

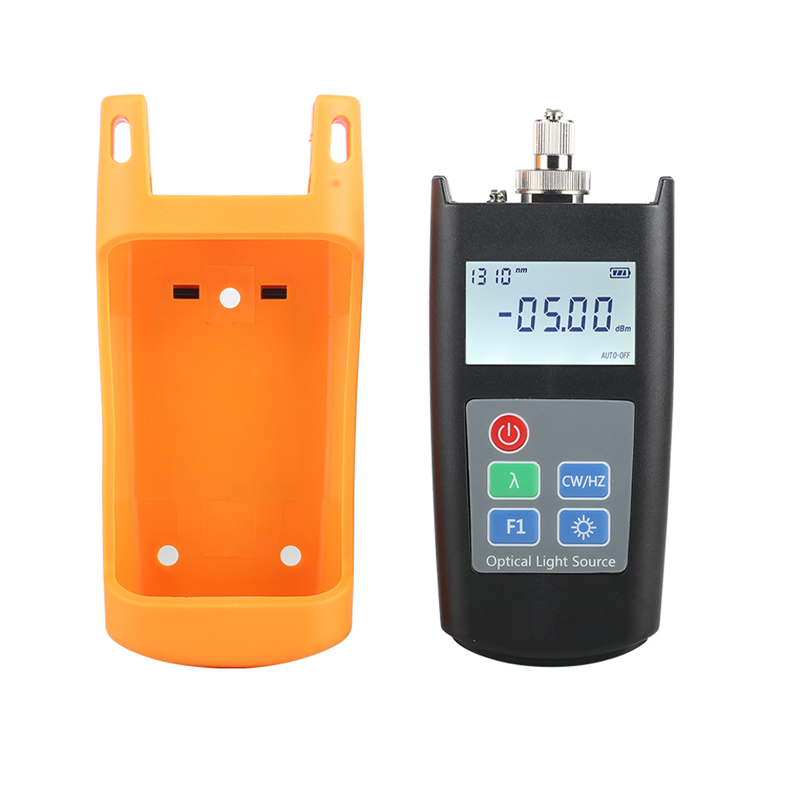

Handled Optical Fiber Light Source
OLS-1305 fiber light source is a handheld fiberlight source, designed for the fiber optical network installation, acceptance, and maintenance. Used with OPM-7001, can provide a accurate fiber network solution. According with client’s requirements, OLS-1305 can provide 1~4 wavelength with stable output power, and featured with continuous adjustable output power. The Intelligent backlight control function can save the power, OLS-1305 have smooth appearance, good touching, and friendly design, which can meet clients’ largest requirements.
FEATURES:
- Wave ID information can be transmitted when used with OPM-7001 Optical Power Meter.
- Tone generation, 270HZ,330HZ,1KHZ,2KHZ
- Output power can be adjustable
- Output power value is shown on LCD display
- Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)
- AA alkaline and AC adapter for power supply
- Low battery indication
SPECIFICATION:
| Model | OLS-1305 |
| Operating wavelength（nm） | 1310/1550 (others specify on requests） |
| Applicable fiber | SM ,MM |
| Laser type | FP-LD(others specify on requests) |
| Maximum Output Power（dBm） | -5（can be adjustable, others specify） |
| Adjustable step size（dBm） | ＜0.5 (adjustable between -5~-12dBm) |
| Stability(dB，15min，20℃) | ±0.1 |
| Stability(dB，30min，20℃) | ±0.05 |
| Modulation（Hz） | CW，270，330，1K，2K |
| Fiber Port | FC/PC or FC,SC,ST interchangeable |
| Alkaline Battery | 3*AA，1.5V |
| Power Supply Adaptor(V) | 8.4 |
| Battery Operating time(h) | 45 |
| Operation Temperature(℃) | -10～+60 |
| Storage Temperature(℃) | -25～+70 |
| Dimension(mm) | 180*83*28 |
| Weight(g) | 360 |
CONFIGURATION:
| No. | Name | Qty |
| 1 | Optical Light Source | 1 |
| 2 | User Manual | 1 |
| 3 | USB cable | 1 |
| 4 | CD | 1 |
| 5 | 1.5V AA battery | 3 |
| 6 | Power Supply Unit | 1 |
| 7 | Cotton Swabs | 1 |
| 8 | Carry Bag | 1 |
