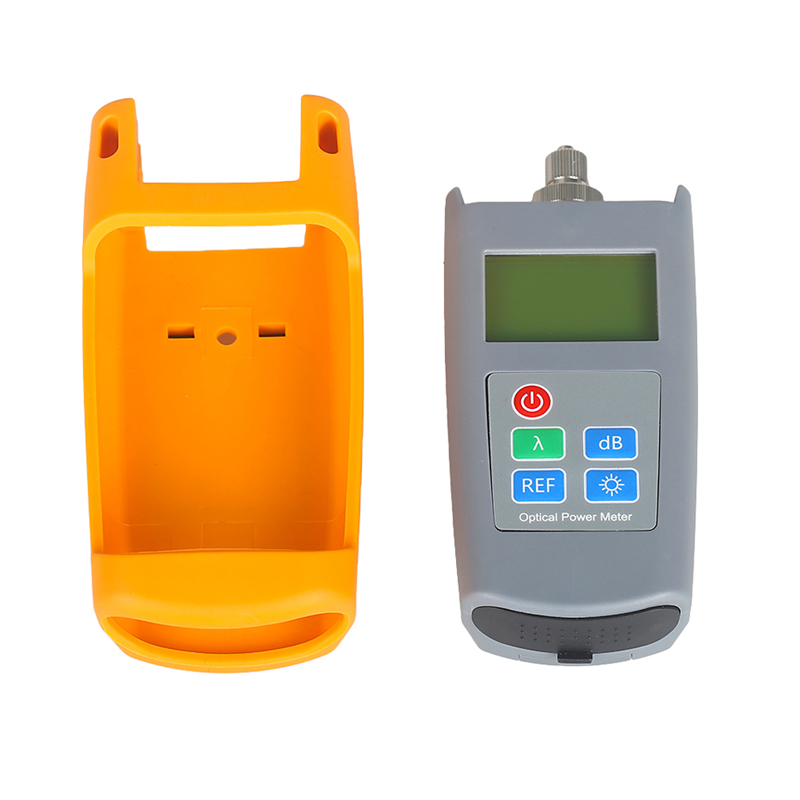

An handheld optical power meter is a device used to measure the power in an optical signal. The term usually refers to a device for testing average power in fiber optic systems. Other general purpose light power measuring devices are usually called radiometers, photometers, laser power meters (can be photodiode sensors or thermopile laser sensors), light meters or lux meters.
A optical fiber power meter consists of a calibrated sensor, measuring amplifier and display. The sensor primarily consists of a photodiode selected for the appropriate range of wavelengths and power levels. On the display unit, the measured optical power and set wavelength is displayed. Power meters are calibrated using a traceable calibration standard.
The handheld optical power meter are available as stand-alone bench or handheld instruments or combined with other test functions such as an Optical Light Source (OLS), Visual Fault Locator (VFL), or as sub-system in a larger or modular instrument. Commonly, a power meter on its own is used to measure absolute optical power, or used with a matched light source to measure loss.
FEATURES:
- Wave ID—Auto wavelength identification & switching
- Frequency ID ---Auto frequency identification
- 2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue color.
- Intelligent backlight
- 1000 records storage or download via USB cable
- USB communication port for saved testing records download
- Reference power level can be set up and stored
- User self-calibrating function
- Auto-off function
- Up to 200hrs battery life
SPECIFICATION:
| Model | OPM-7010 |
| Calibration Wavelength（nm） | 850/1300/1310/1490/1550/1625 |
| Detector type | InGaAs |
| Measurement Range（dBm） | -70～+ 10 |
| Uncertainty (dB) | ±0.15（3.5%） |
| linearity (dB) | ±0.02 |
| Display resolution(dB) | 0.01 |
| Frequency ID（Hz） | 270，330，1K，2K |
| Wave ID（nm） | 850,1300, 1310，1490，1550，1625 |
| Date Storage Capacity | 1000 |
| Communication Port | USB |
| Standard Connector | FC /2.5mm universal |
| Optional Optical Connector | FC/SC/ST Interchangeable/2.5mm universal |
| Optional Optical Connector | LC/FC/SC/ST Interchangeable |
| Alkaline battery | 3*AA，1.5V |
| Power Adapter(V) | 8.4 |
| Battery Operating time (h) | 200 without backlight |
| Operation Temperature(℃) | -10～+60 |
| Storage Temperature(℃) | -25～+70 |
| Dimension(mm) | 180*83*28 |
| Weight(g) | 360 |
Remark: Battery operating time is based on the condition of the power off the backlight. If power on the backlight continuously, the operation time will be shorter.
CONFIGURATION:
| No. | name | qty |
| 1 | Optical Power Meter | 1 |
| 2 | User Manual | 1 |
| 3 | USB cable | 1 |
| 4 | CD | 1 |
| 5 | 1.5V AA battery | 3 |
| 6 | Power Supply Unit | 1 |
| 7 | Cotton Swabs | 1 |
| 8 | Carry Bag | 1 |
