Heat Shrinkable Sealing Fiber Optic Splice Dome Closure 1001H

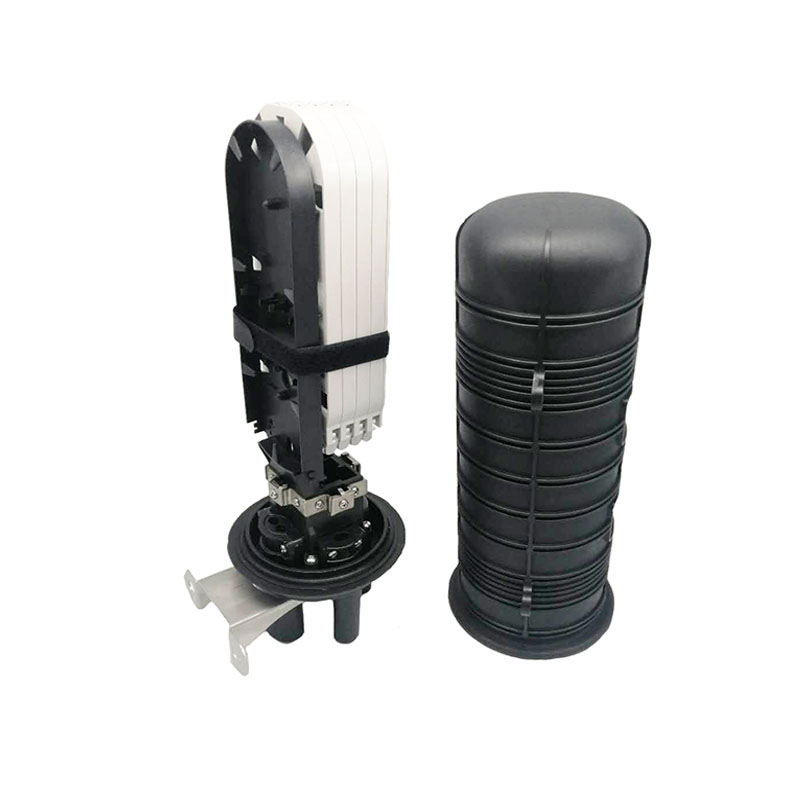

Heat Shrinkable Seal Fiber Optic Splice Dome Closure
A fiber dome closure is only for protecting interconnection of fibers. It does not combine the ability of optical splitting. Generally, the splicing tray offered as accessories has two types: single side 12 cores type and double sides 24 cores.The Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The closure has four round entrance ports. The shell of the product is made from ABS. The shell and the base are sealed by pressing the silicone rubber with clamp allocated. The entry ports are sealed by thread plastic device. The closures can be opened again after be sealed, reused again without changing the sealing material.
APPLICATION:
- Suitable for bunchy & ribbon fibers.
- Aerial
- Underground
- Wall-mounting
- Duct-mounting and handhole- mounting
- Ambient temperature ranges from –40℃ to +65℃.
FEATURES:
Heat shrinkable sealing structure.
High quality industrial plastic body material.
One oval hole and three round holes for cable entrance.
Suitable for cable diameter 5mm-25mm.
Support aerial,underground,pipeline,man holes,hand holes
Protection level reaches IP68.
360 degrees access, fiber bending >40mm.
Maximum capacity: 96F single or 144F ribbon.
Number of trays: 4 pcs x 24F.
TECHNICAL PARAMETERS:
Working temperature: –40℃ to +60 ℃
Atmospheric pressure: 70~106Kpa
Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.
High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.
Tensile strength: 1000N
Compressive strength: 2000N/10cm2 within 1 min
Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground
Dielectric strength: 15KV DC, 2min, without spark over and flying arc
Working life: more than 20 years
SPECIFICATION:
Outside dimension (Height x Diameter) | 440mm×190mm |
Weight (excluding outside box) | 2250g—2310g |
Number of inlet/outlet ports | 1 Oval port 3 Round port |
Diameter of fiber cable | 5mm~25mm |
Capacity of FOSC | Bunchy: 24-96 (cores) |
MAIN COMPONENTS:
No. | Name of components | Quantity | Usage | Remarks |
| 1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Height x Diameter 440mm x 190mm |
| 2 | Fiber optic splice tray | Max. 4 trays (bunchy) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:4,6,8,12,24(cores) |
| 3 | Fiber holding tray | 1 piece | Holding fibers with protective coat | |
| 4 | Base | 1 set | Fixing internal and external structure | |
| 5 | Plastic hoop | 1 set | Fixing between FOSC cover and base | |
| 6 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
| 7 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| 8 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |
