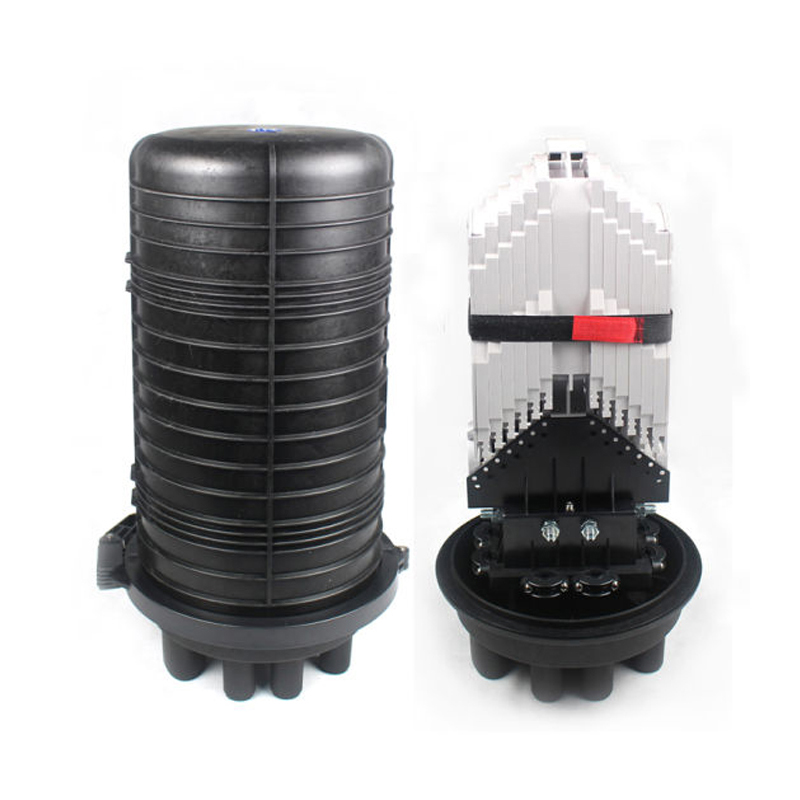

Heat Shrinkable Sealing Fiber Optic Splice Dome Closure
Heat Shrinkable Sealing Fiber Optic Splice Dome Closure
Vertical dome closure fiber optic looks like a dome, thus it is also called dome fiber optic splice closure or fiber dome closure. The dome shape makes it easy to be buried in many applications, though it also can be used above-ground as well. Due to the growing network demands, there is a wide range of models and configurations of vertical fiber optic splice closures. High-capacity versions and variations in the number of splicing trays are also available in the market to meet the complex needs of today’s fiber-optic networks. The number of inlet/outlet ports of the dome fiber optic closure also varies with application needs. Dome fiber optic splice closure requires high-levels seals and waterproof technology, due to its underground applications. Besides, keeping insects and dirt out is also important for underground closures.
APPLICATION:
- Suitable for bunchy & ribbon fibers.
- Aerial
- Underground
- Wall-mounting
- Duct-mounting and handhole- mounting
- Ambient temperature ranges from –40℃ to +65℃.
FEATURES:
Heat shrinkable sealing structure.
High quality industrial plastic body material.
One oval hole and three round holes for cable entrance.
Suitable for cable diameter 5mm-25mm.
Support aerial,underground,pipeline,man holes,hand holes
Protection level reaches IP68.
360 degrees access, fiber bending >40mm.
Maximum capacity: 96F single or 144F ribbon.
Number of trays: 4 pcs x 24F.
TECHNICAL PARAMETERS:
Working temperature: –40℃ to +60 ℃
Atmospheric pressure: 70~106Kpa
Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.
High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.
Tensile strength: 1000N
Compressive strength: 2000N/10cm2 within 1 min
Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground
Dielectric strength: 15KV DC, 2min, without spark over and flying arc
Working life: more than 20 years
SPECIFICATION:
Outside dimension (Height x Diameter) | 515mm×310mm |
Weight (excluding outside box) | 2250g—2310g |
Number of inlet/outlet ports | 1 Oval port 6 Round port |
Diameter of fiber cable | 5mm~38mm |
Capacity of FOSC | Bunchy: 24-288 (cores) |
MAIN COMPONENTS:
No. | Name of components | Quantity | Usage | Remarks |
| 1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Height x Diameter 515mm x 310mm |
| 2 | Fiber optic splice tray | Max. 4 trays (bunchy) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:4,6,8,12,24(cores) |
| 3 | Fiber holding tray | 1 piece | Holding fibers with protective coat | |
| 4 | Base | 1 set | Fixing internal and external structure | |
| 5 | Plastic hoop | 1 set | Fixing between FOSC cover and base | |
| 6 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
| 7 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| 8 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |
