8 Port FDB/ATB/FTB splitter distribution box junction box
FDB BOX
Delivery
FOB
Country of Origin
Shen Zhen
Quantity:
8 Port FDB/ATB/FTB splitter distribution box junction box
The splitter junction box is ready for wall mount and provids installation kits. It has lower layer for splitters and over length fiber storage.It also can accommodate both cable glands and tie-wraps. The ABS material ensures the box body strong and light.
Features
- Water-proof design for outdoor uses.
- Easy installations: Ready for wall mount – installation kits provided.
- Adapter slots used – No screws and tools needed for installing adapters.
- Ready for splitters: designed space for adding splitters.
- Space saving! Double-layer design for easier installation and maintenances.
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting and fiber distribution.
- Cable fixing units provided for fixing the outdoor optical cable.
- Protection Level: IP65.
- Accommodates both cable glands and tie-wraps.
- Lock provided for extra security.
- ABS material ensures the box body strong and light.
Environmental reguirement
- Working temprature : -40℃~+85℃
- Relative humidity : ≤85% (+30℃)
- Atmospheric pressure : 70Kpa~106Kpa
Dimensions
Model | Capacity | Size(mm) |
FTB-0208B | 8 ports | 205mm×215mm×55mm |
FTB-0216B | 16 ports | 268mm×320mm×90mm |

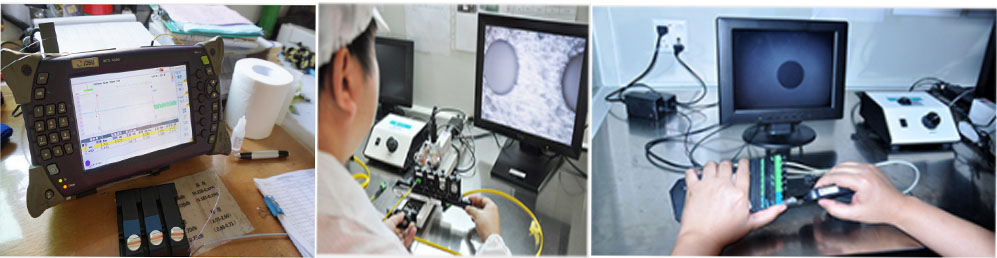

Testing
All products have passed professional tests in order to providing better quality guarentee.
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
