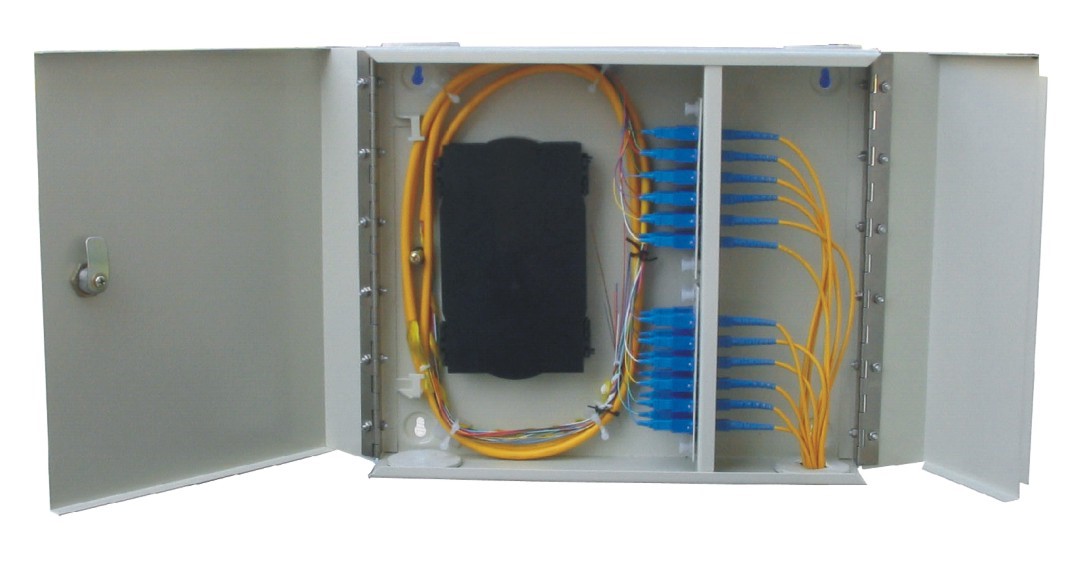

Indoor Wall Mount Box

Indoor Wall Mount Box

Fiber optic wall mount enclosure box provide an economical and quality solution for installations of any size, where direct termination or pigtail splicing is required. Fiber optic wall mount interconnect enclosure provides a convenient convergence point for interconnecting and/or splicing in wall mount applications. Provisioned for up to two LGX compatible adapter plates or optical modules, the enclosure features a well-engineered solution for fiber and cable management on both the ingress and egress openigns of the enclosure. Robust steel construction ensures the highest level of protection for sensitive components while integrated roll-formed hinges eliminate possible fiber pinch points when installing or servicing components within. The wall mount enclosure features discrete access doors for provider and customer access which are independently lockable with a common pad-lock or tube-style key lock. The typical use of these enclosures include situations where outside plant cables are terminated onto the back of the adapter plate or where pigtails are spliced onto the incoming cable. These enclosures are also used as point to point patch connections or as end termination for backbone spurs in the Telecom environment.

FEATURES:

• Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room

• The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.

• Provide fusion and storage applicance for optical cables

• Reliable protection appliance of fixing, stripping and earthing for optical cables.

• Whole range protected design for fiber lay to ensure the bending radius=40mm

• Provide various accessories to avoid any unexpected damage to the fiber.

• Each box trays and accessories and is ready for installation.

• Can be applied in the branch connection of optical fiber termination;

• Wall mounted

• Available for the adapters installation of FC, SC, ST, LC .

• The box body is made of cold rolled steel sheet.

APPLICATION

• Local Area Network

• CATV Network

• FTTx System

• Wide Area Network

• Test Instruments

SPECIFICATION:
