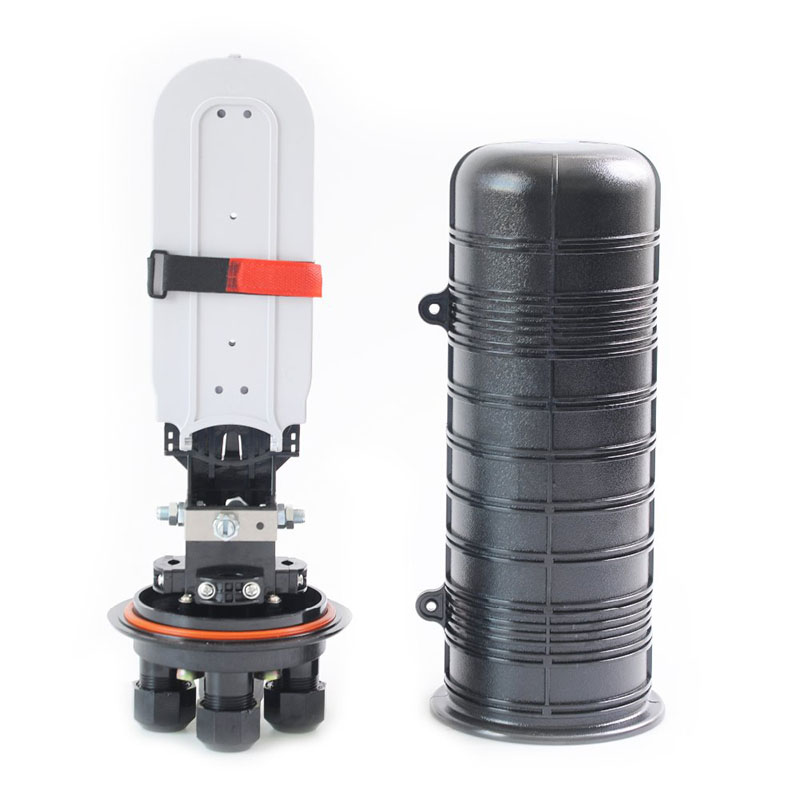

Mechanical Sealing Splice Dome Closure
Mechanical Sealing Fiber Optic Splice Dome Closure
The outdoor fiber optic enclosure is a passive component which can provide a great protection for fiber splicing point. Aerially assembling, pipeline assembling or buried underground are all available. Generally, closures have two types to face different situations: Cap (Vertical) Type and Half (Horizontal) type. The Cap type closure is also called Vertical closure. The input and output ports are at the bottom of the closure. This closure type is more suitable for the application on accessing layer. The Half type closure is also called Horizontal closure. The input and output are on the both sides. This closure is more suitable for backbone application.
APPLICATION:
- Suitable for bunchy & ribbon fibers.
- Aerial
- Underground
- Wall-mounting
- Duct-mounting and handhole- mounting
- Ambient temperature ranges from –40℃ to +65℃.
FEATURES:
sealing structure.
High quality industrial plastic body material.
4 round holes for cable entrance.
Suitable for cable diameter 5mm-25mm.
Support aerial,underground,pipeline,man holes,hand holes.
Protection level reaches IP68.
360 degrees access, fiber bending >40mm.
Maximum capacity: 96 fibers.
Number of splice trays: 4 pcs x 24F
TECHNICAL PARAMETERS:
Working temperature: –40℃ to +60 ℃
Atmospheric pressure: 70~106Kpa
Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.
High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.
Tensile strength: 1000N
Compressive strength: 2000N/10cm2 within 1 min
Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground
Dielectric strength: 15KV DC, 2min, without spark over and flying arc
Working life: more than 20 years
SPECIFICATION:
Outside dimension (Height x Diameter) | 440mm×190mm |
Weight (excluding outside box) | 2250g—2310g |
Number of inlet/outlet ports | 4 Round port |
Diameter of fiber cable | 5mm~25mm |
Capacity of FOSC | Bunchy: 4-48 (cores) |
MAIN COMPONENTS:
No. | Name of components | Quantity | Usage | Remarks |
| 1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Height x Diameter 470mm x 190mm |
| 2 | Fiber optic splice tray | Max. 4 trays (bunchy) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:4,6,8,12,24(cores) |
| 3 | Fiber holding tray | 1 piece | Holding fibers with protective coat | |
| 4 | Base | 1 set | Fixing internal and external structure | |
| 5 | Plastic hoop | 1 set | Fixing between FOSC cover and base | |
| 6 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
| 7 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| 8 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |
