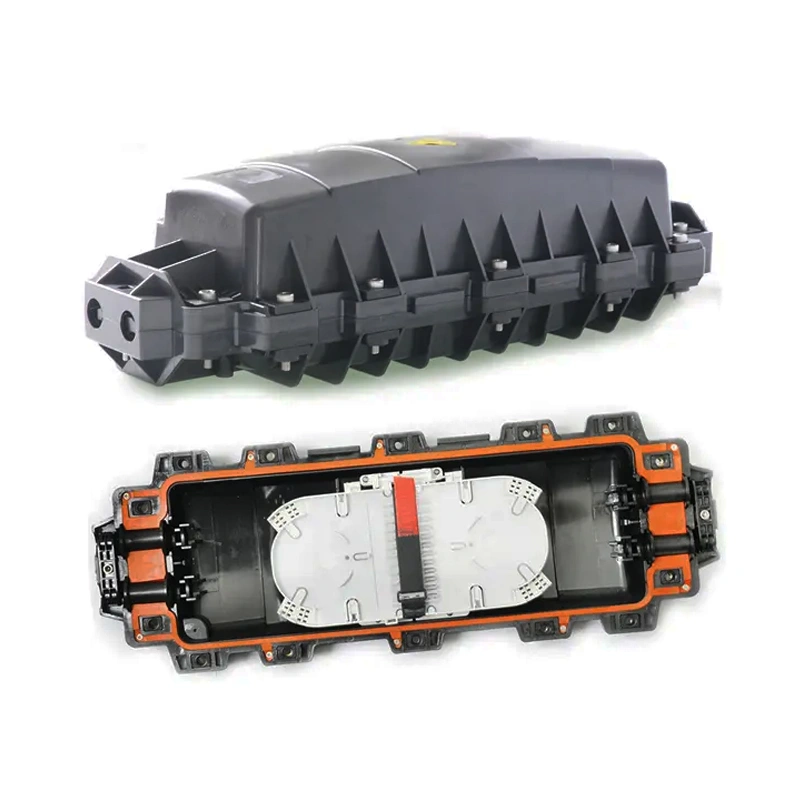

Optical Fiber Joint Horizontal Inline Closure 288 Core 5016H

FEATURES:

• Easy to assemble

• Aerial and wall-mounting.

• Suitable for Φ8mm~Φ20mm cables

• Aerial, underground, pipeline,man-holes,hand-holes assembling

• The protection grade reaches IP 68
• The closure is of small volume, big capacity and convenient maintenance.
• The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
• The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
• The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.

• Adapt to the ambient temperature from -40℃ to +65℃

TECHNICAL PARAMETERS:

• Working temperature: –40℃ to +60 ℃

• Atmospheric pressure: 70~106Kpa

• Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.

• High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.

• Tensile strength: 1000N

• Compressive strength: 2000N/10cm2 within 1 min

• Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground

• Dielectric strength: 15KV DC, 2min, without spark over and flying arc

• Working life: more than 20 years

APPLICATION:

• Suitable for bunchy & ribbon fibers.

• Aerial, underground, wall-mounting, hand hole-mounting, Pole-mounting and duct-mounting

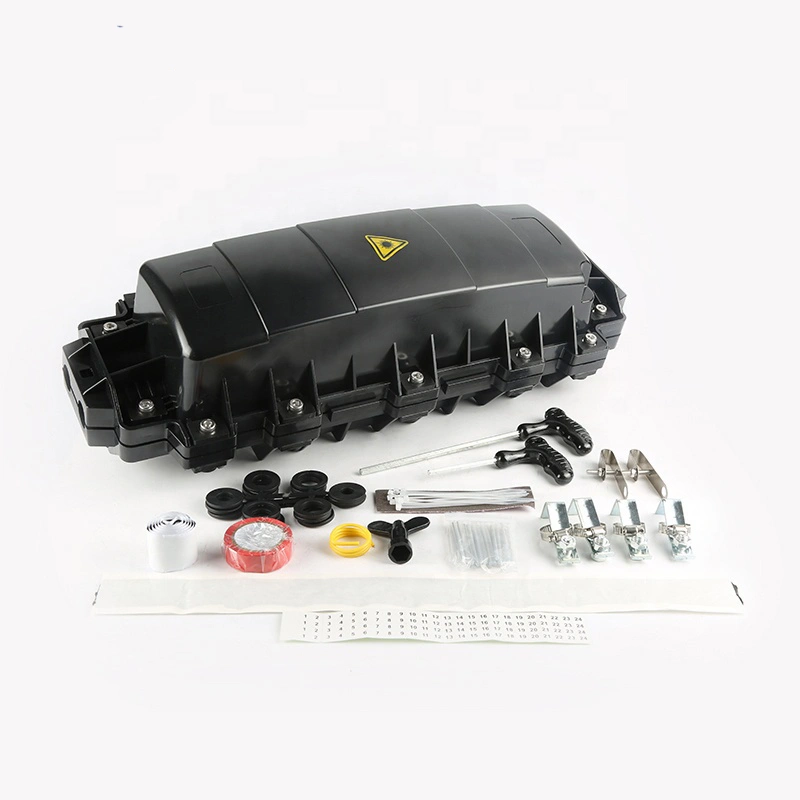

MAIN COMPONENTS:

SPECIFICATIONS:
