Waterproof Outdoor Terminal Box 4 Port /6 Port Fiber Optic Distribution Box For FTTH

Waterproof Outdoor Terminal Box 4 Port / 6Port Fiber Optic Distribution Box For FTTH

Introduction:

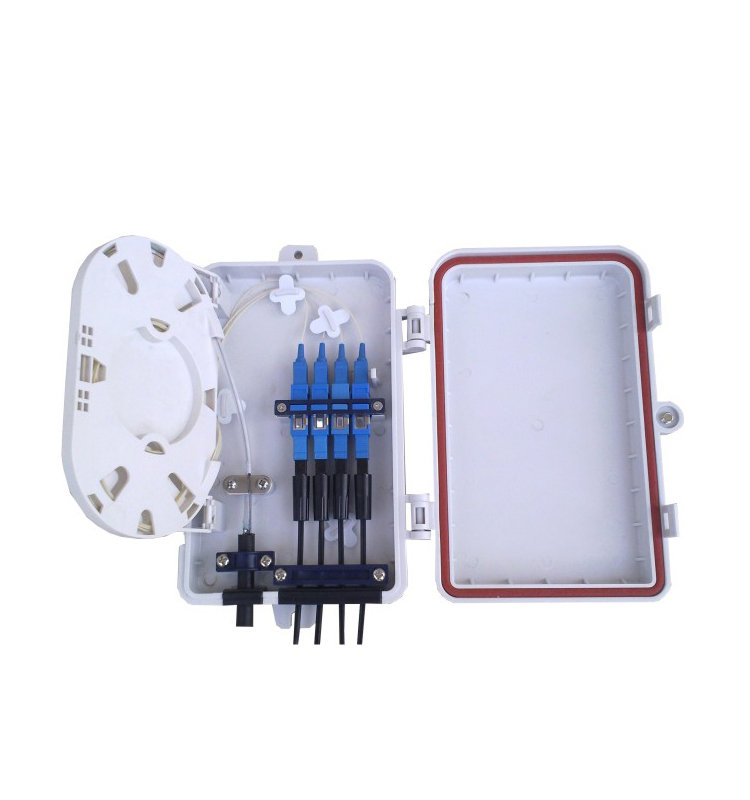

FDB-104C/106C fiber optic distribution box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH. Widely used in the end termination of residential buildings and villas, to storage and splice fibers and protect the fiber fusing; Can be installed on the wall and pole; May adapt variety of optical connection styles; Optical fiber can be managed effectively. Available for 1*2/1*4 PLC Splitter.

Features:

1.1 FTTH,LAN network and CATV system application.

1.2 Available for 1*2/1*4 PLC Splitter. Design to protect PLC splitter.

1.3 Suit for both Outdoor & Indoor. IP65 Grade.

1.4 Waterproof, Anti-UV(UL-94V0), Ultra violet resistant and rainfall resistant.

1.4 Light weight, small cubage, small installation size,realizable sealing.

1.5 Could be connected FTTH Drop cables inside. Design the splicing place for Mechanical Splice

1.6 The base and cover of the box adopts “self-clip”&”screw-clip”two times lock method, which is better to use in outdoor for high sealing and waterproof.

Adapter port :

Could be used for LC Duplex,SC,ST,FCAdapter;

Cable port:

Could be connected 1 inlet ports, 4 outlet ports.

Splice tray:

Max fiber sleeve:8pcs (2pcs per slot. total 4slots)

Fiber sleeve type: 40*3.0mm/ 60*3.0mm

Mounting type:

WALL MOUNTING POLE MOUNTING

Main Technical Indexes:

2.1 Environmental Temperature:-40℃~60℃;

2.2 Max capacity: 6 fibers;

2.3Application for outdoor, IP65 grade

2.4 Material: High impact plastic.

Dimension:

Testing

All products have passed professional tests in order to providing better quality guarentee.

Certification

After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
