FC Fiber Optic Attenuator
ATTNFCU01
Quantity:

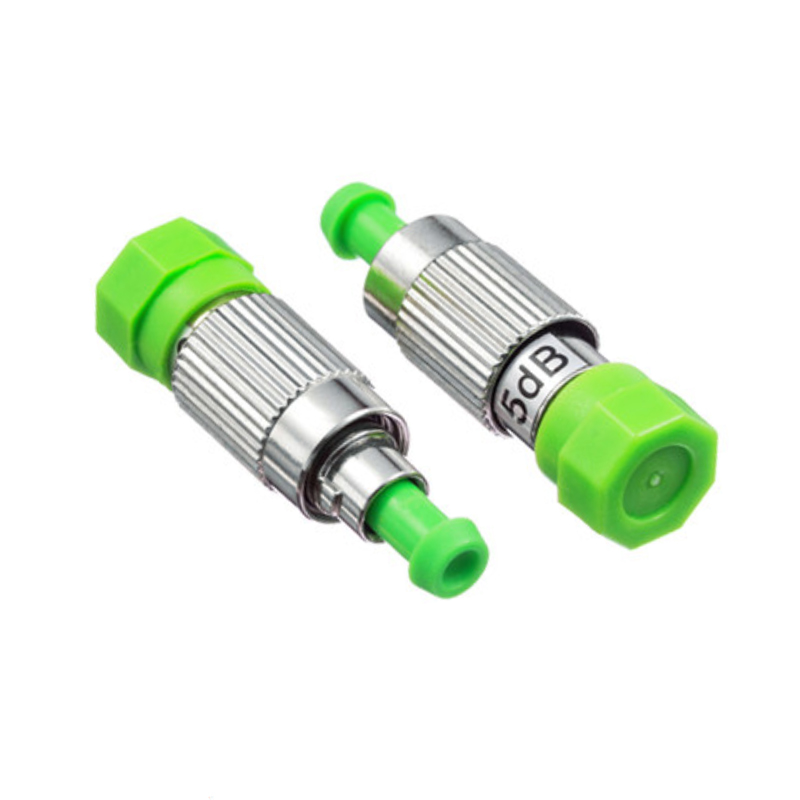

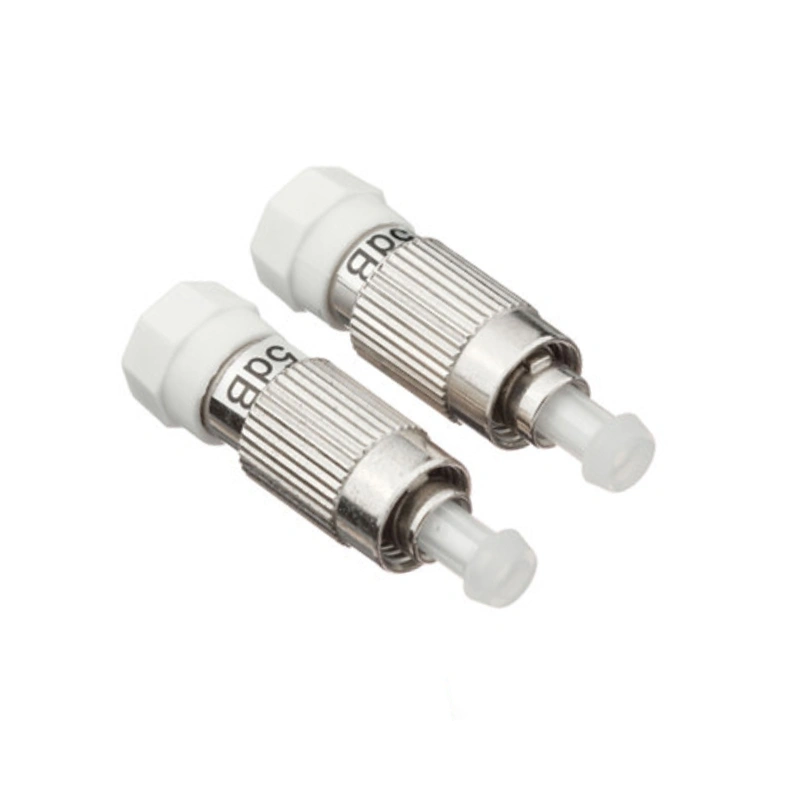

FC Fiber Optic Attenuator
The fc fiber optic attenuator are normally used in singlemode circuits, because this is where the stronger lasers are used for distance transmission, we also have multimode attenuators available (upon special order) in 50/125 and 62.5/125 fiber sizes. Since these will be custom made, minimum order quantity (50+) and extended lead time (2-4 weeks) may be required.
Applications:
Testing equipment
Fiber optical CATV
Fiber optical sensor
Fiber optical telecommunication system
Features:
Fixed Attenuator(Fixed Type FC, SC, ST, LC)
Female to male type ( FC, SC, ST, LC)
In-Line Attenuator(Fused and Fiber Jumpers Type)
High Return Loss(In-Line and High RL Type)
Exact and Stable Attenuation(Variable Type)
Parameters:
| Item | Parameter | |||
| Model | Fixed, Female&Male, In-line, Variable | |||
| Operating Wavelength | SM:1310/1550nm | SM:1310/1550nm | ||
| Attenuation Range | 1~30dB | |||
| Return Loss | APC: ≥60db | UPC: ≥55dB | PC:≥50dB | |
| Attenuation Tolerance | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) | |||
| Maximum Optical Input Power | 1000mW | |||
| Polarization Dependent Loss | ≤0.1dB | |||
| Operation Temperature | -40°C~+60°C | |||
| Storage Temperature | -45°C~+ 85°C | |||
| Humidity | 95%RH | |||
