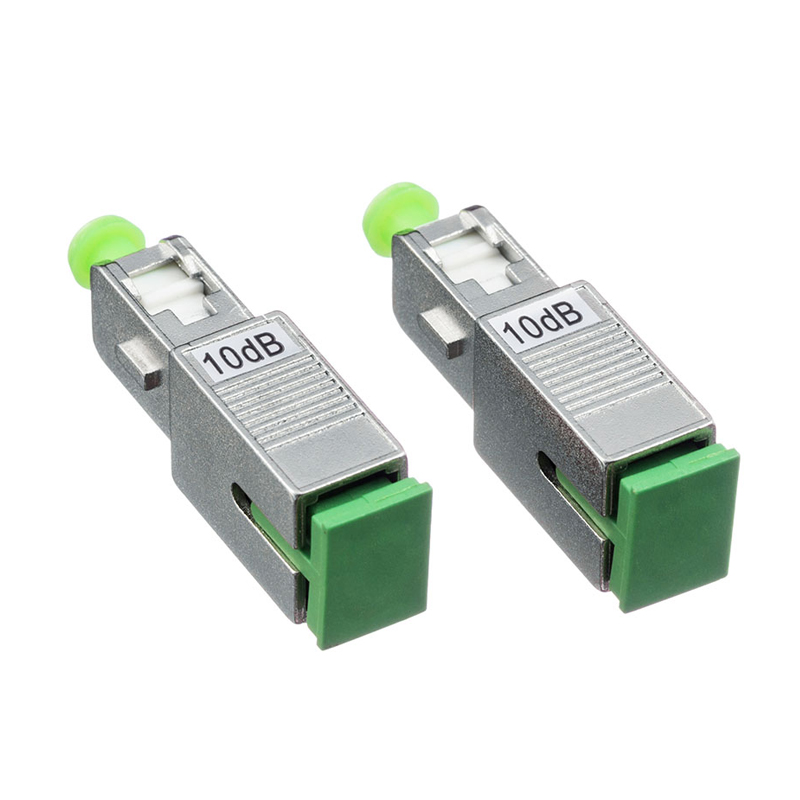

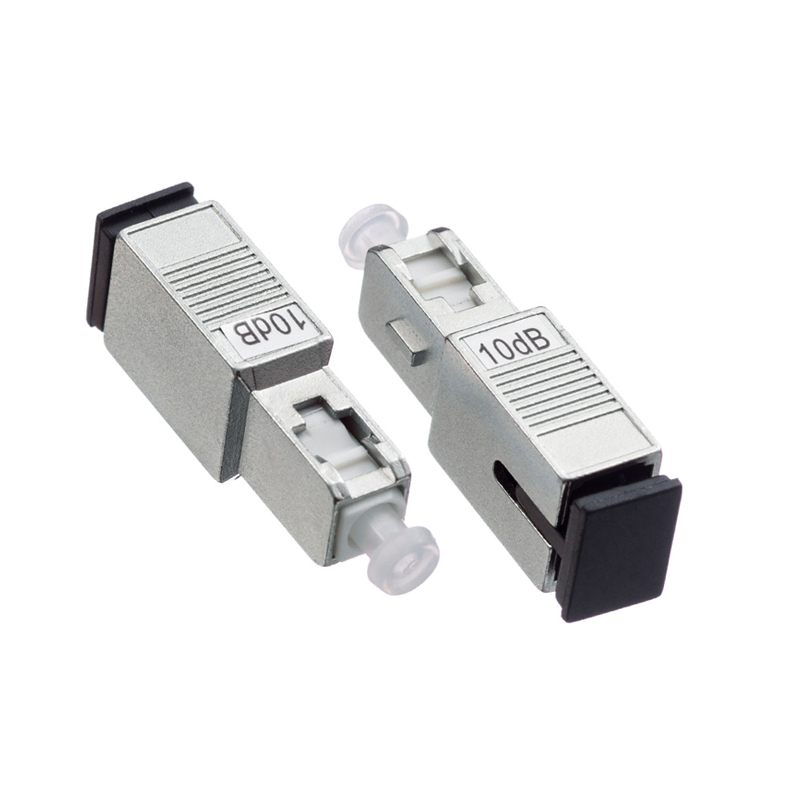

SC Fiber Optic Attenuator

SC Fiber Optic Attenuator

The sc fiber optic attenuator are usually used when the signal arriving at the receiver is too strong and the hence may overpower the receiving elements. Sometimes attenuators are also used for stress testing a network link by incrementally reducing the signal strength (increasing the dB attenuation) until the optical link fails, thus determining the signal’s existing safety margin. Maximum transmission power is typically one watt. We stock attenuators for the following fiber optic connector types: ST, SC, SC/APC, FC, FC/APC, LC, LC/APC, MU. Other connector type attenuators are available upon special order. We stock most values between 1dB and 25dB for each of these attenuator types.

Applications:

• Testing equipment

• Fiber optical CATV

• Fiber optical sensor

• Fiber optical telecommunication system

Features:

• Fixed Attenuator(Fixed Type FC, SC, ST, LC)

• Female to male type ( FC, SC, ST, LC)

• In-Line Attenuator(Fused and Fiber Jumpers Type)

• High Return Loss(In-Line and High RL Type)

• Exact and Stable Attenuation(Variable Type)

Parameters:
