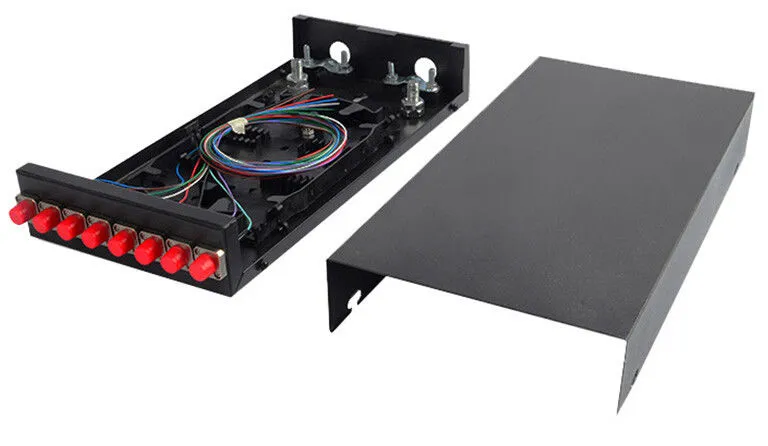

fiber optic distribution frame

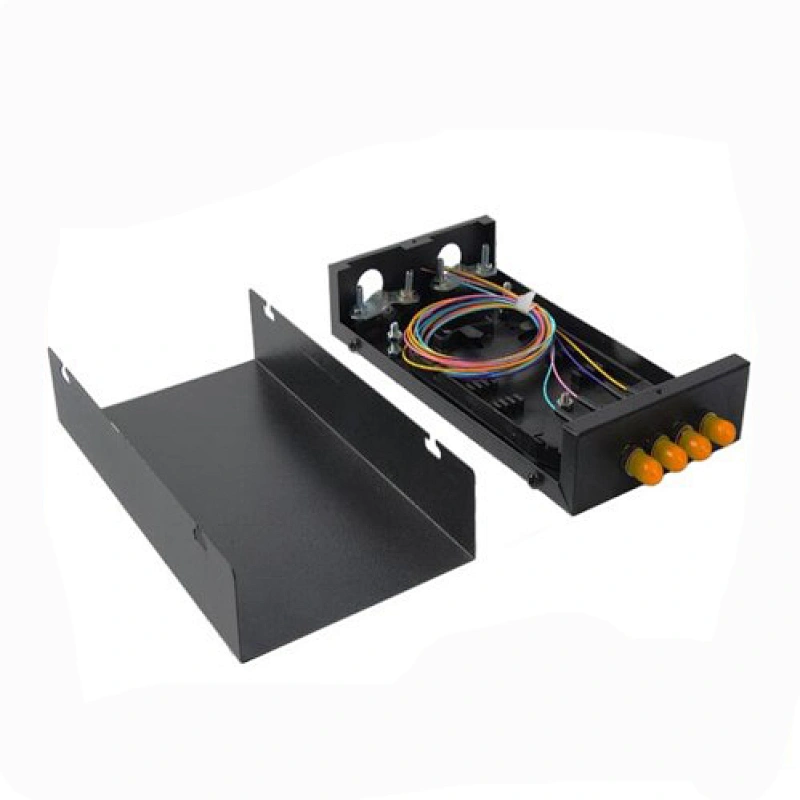

High resistance waterproof patch panel outdoor distribution frame fiber optic metal terminal box

Product Description

The fiber optic distribution frame is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH. Widely used in the end termination of residential buildings and villas, to storage and splice fibers and protect the fiber fusing. It can be installed on the wall and pole. It may adapt variety of optical connection styles.Optical fiber can be managed effectively. Available for 1*2/1*4/1*6 PLC Splitter.

  • Place of Origin:CN;GUA
  • Type:FTTx Solutions
  • Brand Name:Skylynn
  • Model Number:fiber optic metal terminal box
  • Product name:fiber optic metal terminal box
  • Cable Ports:4~8 Port
  • Color:white
  • Waterproof Grade::IP65
  • Max capacity::8Fibers
  • Components::Splitter, Adaptor&Pigtail
  • Material::Plastic
  • Application:FTTH FTTB FTTX Network
  • Certification:RoHS
  • Warranty:3 Years

Features

1.1 FTTH,LAN network and CATV system application.

1.2 Available for 1*2/1*4/1*6 PLC Splitter. Design to protect PLC splitter.

1.3 Suit for both Outdoor & Indoor. IP65 Grade.

1.4 Waterproof, Anti-UV(UL-94V0), Ultra violet resistant and rainfall resistant.

1.4 Light weight, small cubage, small installation size,realizable sealing.

1.5 Could be connected FTTH Drop cables inside. Design the splicing place for MechanicalSplice

1.6 The base and cover of the box adopts “self-clip”&”screw-clip”two times lock method, which is better to use in outdoor for high sealing and waterproof.

ModelCapacitySize(mm)Weight (kg)
4port8ports210(W)X140(H)x40(D)0.45

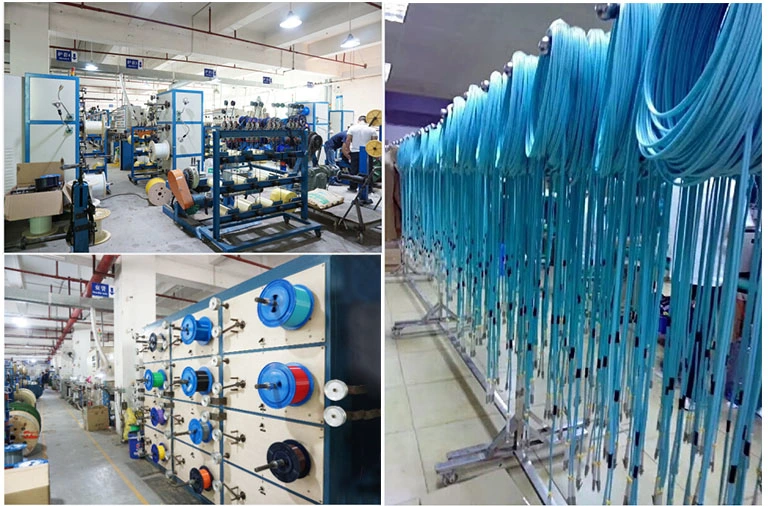

Manufacturing

We have majority of advanced equipment，ample space, high-tech public person, strict quality inspection which can provide a large number of high-quality products.

Manufacturing

Testing

All products have passed professional tests in order to providing better quality guarentee.

Testing

Certification

After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.

Certification
