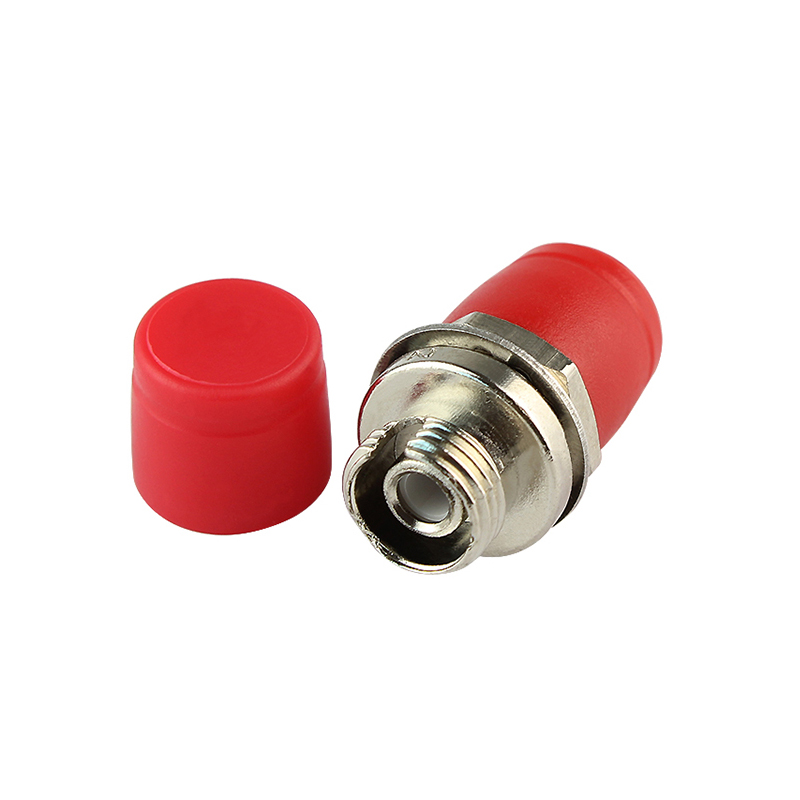

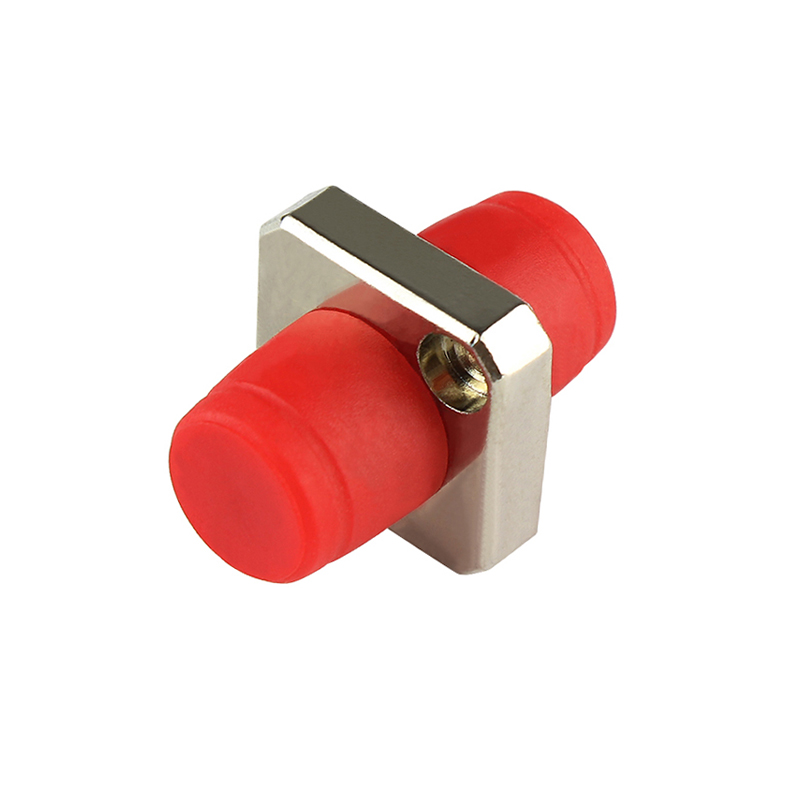

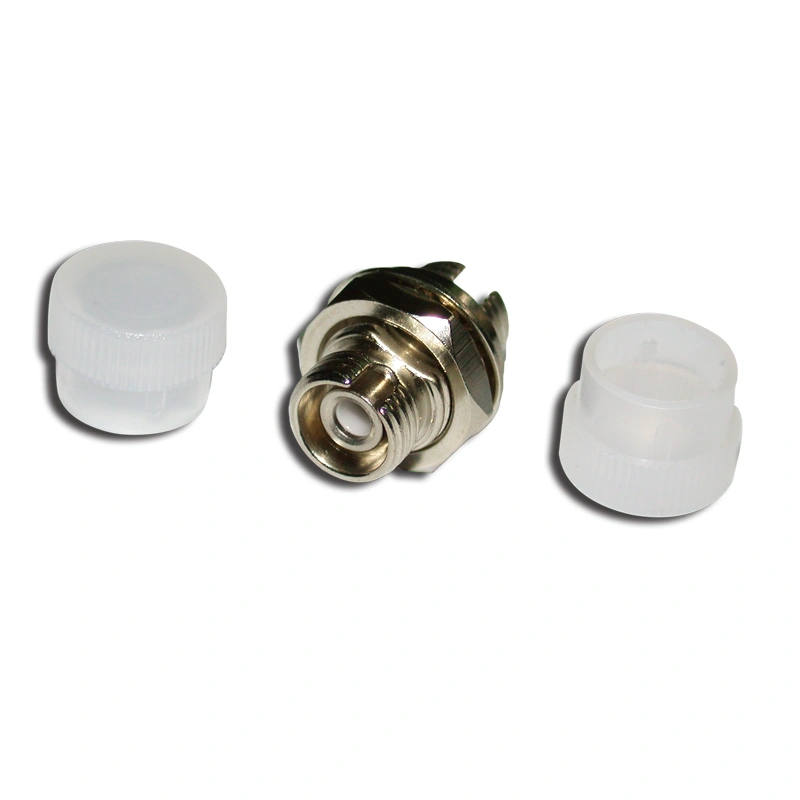

FC Series Adapter
FC Series Adapter
The adapter fc have zirconia sleeves and phosphor bronze sleeves. In the Mechanical and Military Industtial, the FC adapters can be used well. It can be applicated in Local Area Network, Fiber To The Home, CATV&CCTV System and High speed transmission systems.
Features:
• Low insertion loss and back reflection loss
• Ferrule end surface pre-domed
• Precision anti-rotation key and corrosion resistant body
• UL-rated plastic housing
• Telcordia style boots
• Free-floating ceramic ferrule
• Zirconia sleeves or Phosphor bronze sleeves
• D-shaped easily installs into panel mount
• RoHS compliant
Applications:
• Fiber Optic Telecommunications
• LAN (Local Area Network)
• FTTH (Fiber To The Home)
• CATV&CCTV System
• High speed transmission systems
• Fiber optic sensing
• Industtial, Mechanical and Military
Specification:
| Parameter | Unit | SC | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥55 | ≥30 |
| Exchange ability | dB | ≤0.2 | |||
| Repeat ability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | ℃ | -40~75 | |||
| Storage Temperature | ℃ | -45~85 | |||

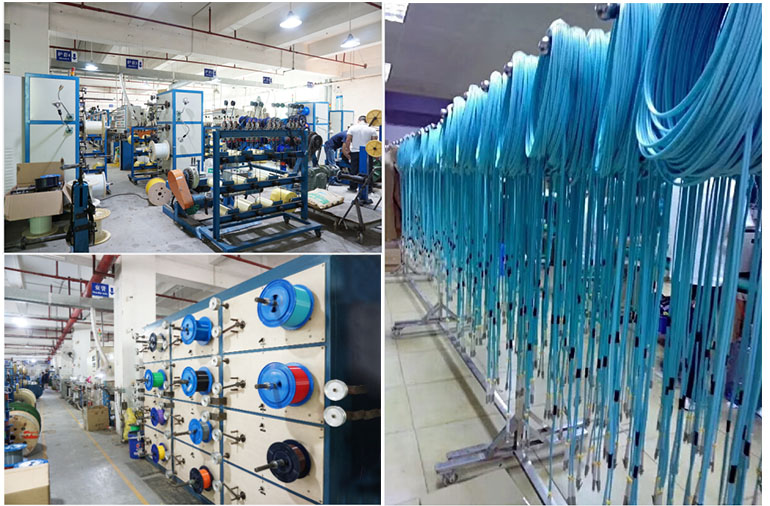

Manufacturing
We have majority of advanced equipment，ample space, high-tech public person, strict quality inspection which can provide a large number of high-quality products.

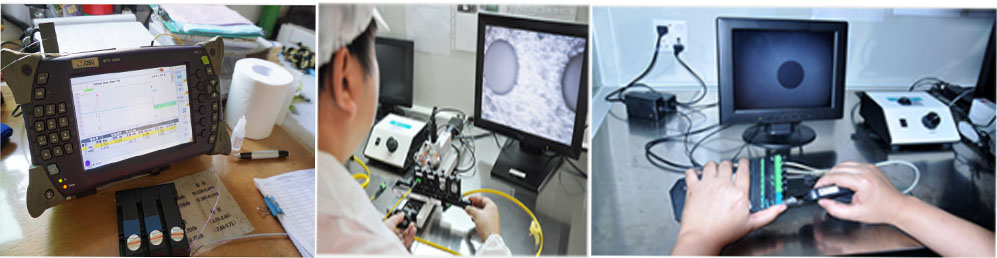

Testing
All products have passed professional tests in order to providing better quality guarentee.
