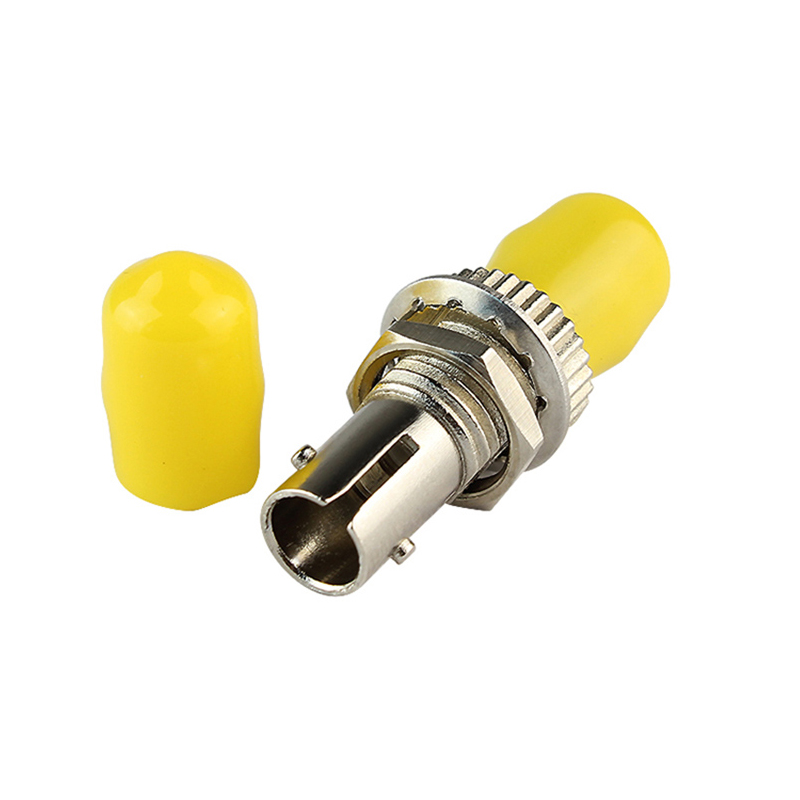

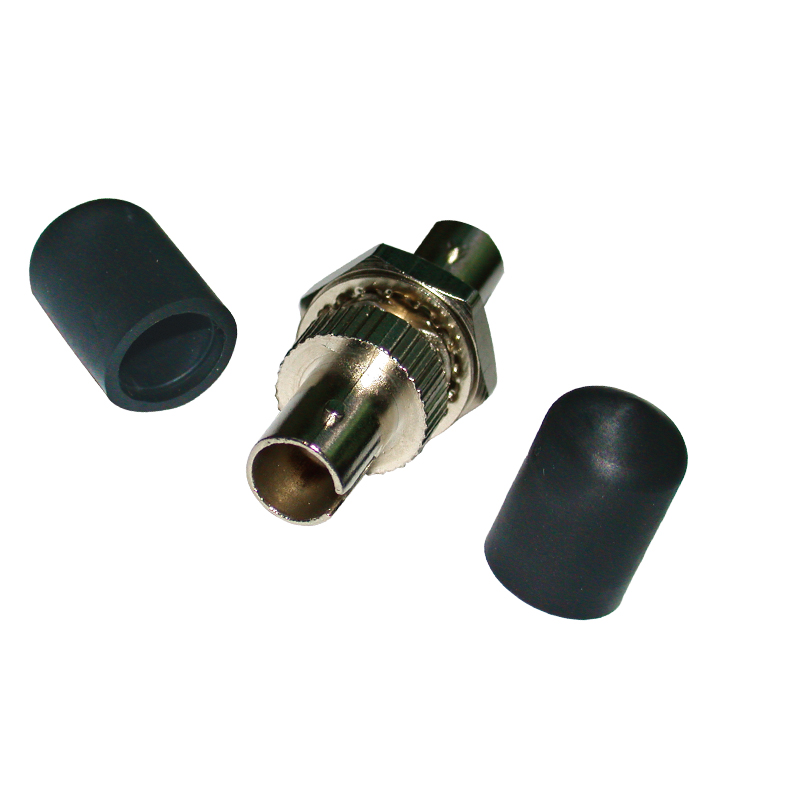

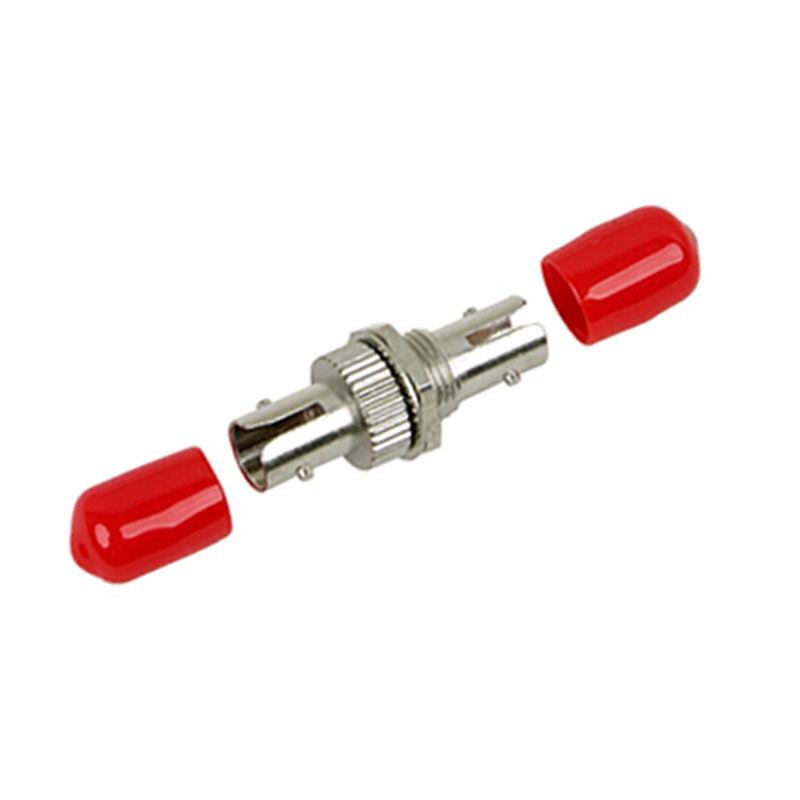

ST Series Adapter
ST Series Adapter
The adapter st has the low insertion loss and back reflection loss, and it gets the telcordia style boots and RoHS compliant. The ST adapters can fit in the high speed transmission systems and fiber optic sensing.
Features:
• Low insertion loss and back reflection loss
• Ferrule end surface pre-domed
• Precision anti-rotation key and corrosion resistant body
• UL-rated plastic housing
• Telcordia style boots
• Free-floating ceramic ferrule
• Zirconia sleeves or Phosphor bronze sleeves
• D-shaped easily installs into panel mount
• RoHS compliant
Applications:
• Fiber Optic Telecommunications
• LAN (Local Area Network)
• FTTH (Fiber To The Home)
• CATV&CCTV System
• High speed transmission systems
• Fiber optic sensing
• Industtial, Mechanical and Military
Specification:
| Parameter | Unit | SC | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥55 | ≥30 |
| Exchange ability | dB | ≤0.2 | |||
| Repeat ability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | ℃ | -40~75 | |||
| Storage Temperature | ℃ | -45~85 | |||
Certification
After years of production and research and development, our company has got lots of certificate of compliances and quality managment system certification.
