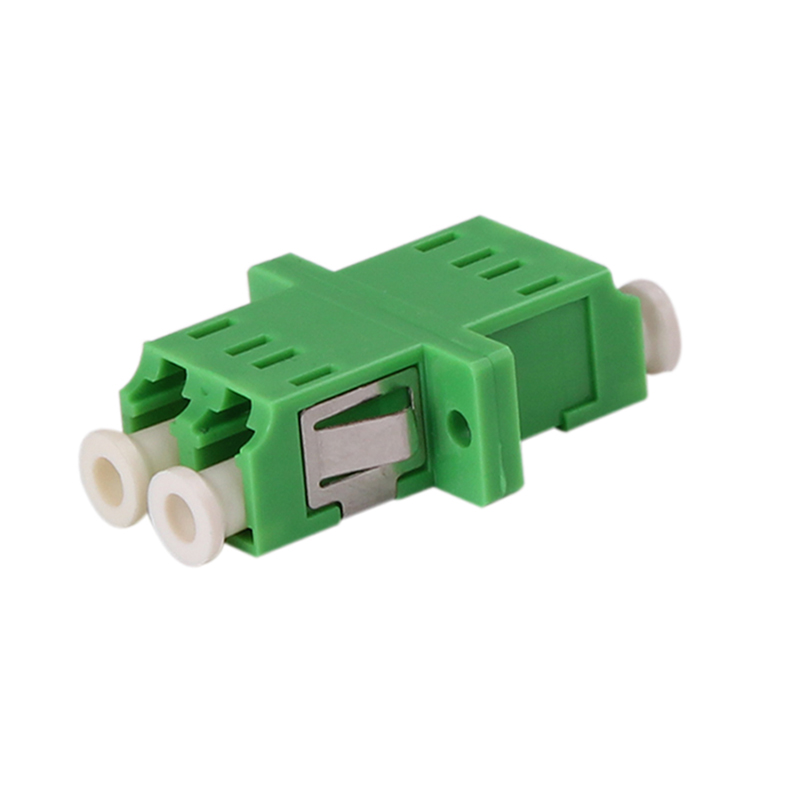

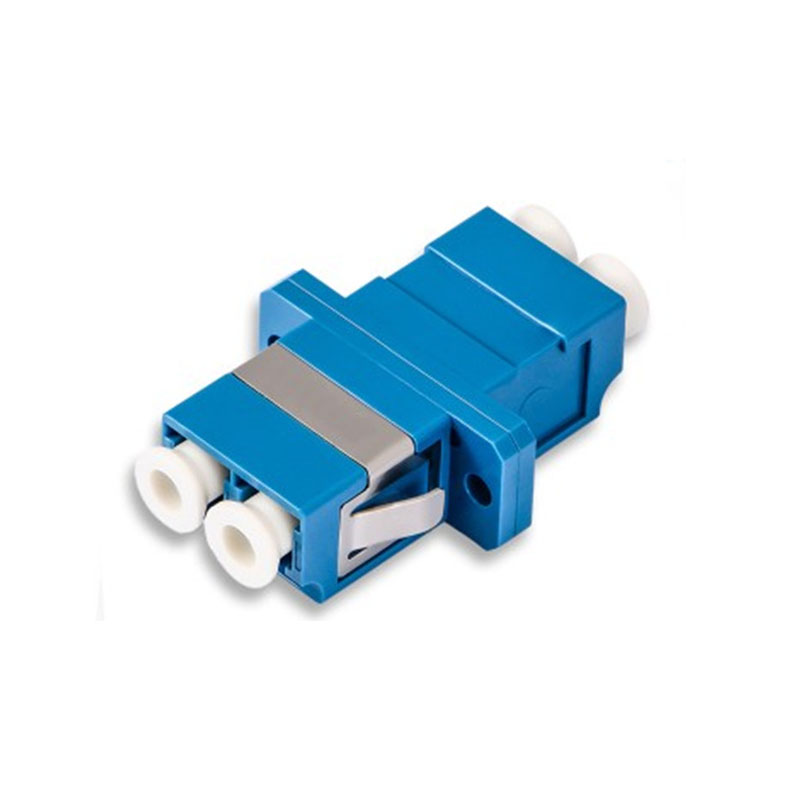

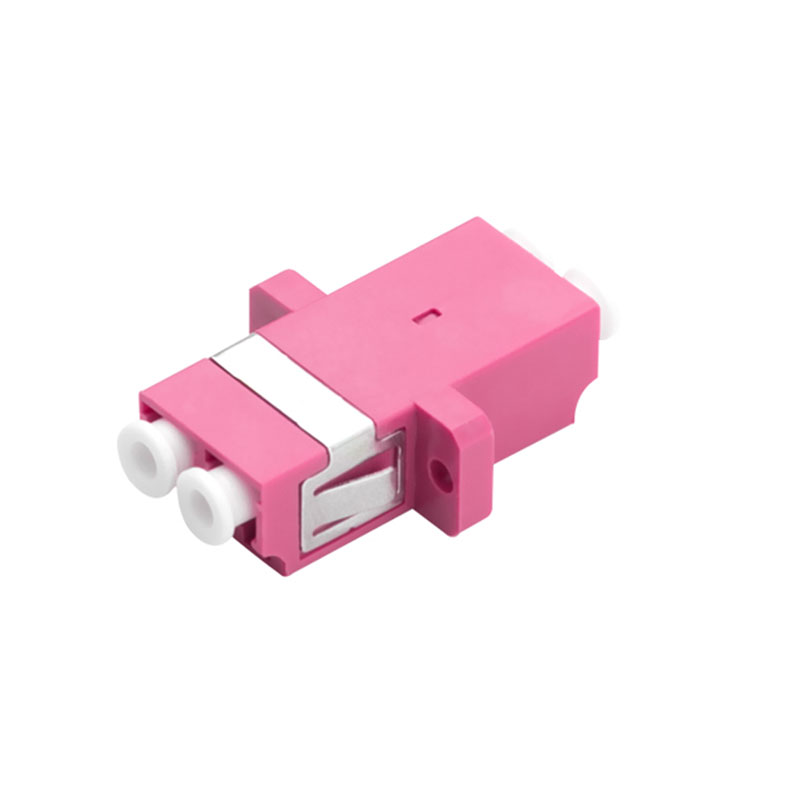

LC Series Adapter
LC Series Adapter
The adapter lc joins separated connectors. They are assembled in panels and allow connecting pigtails with patchcords. For every type of connector, there is equivalent type of adapter. The LC adapters have the D-shaped easily installs into panel mount and the RoHS complian. And the LC adapters can be well used in the High speed transmission systems.
Features:
• Low insertion loss and back reflection loss
• Ferrule end surface pre-domed
• Precision anti-rotation key and corrosion resistant body
• UL-rated plastic housing
• Telcordia style boots
• Free-floating ceramic ferrule
• Zirconia sleeves or Phosphor bronze sleeves
• D-shaped easily installs into panel mount
• RoHS compliant
Applications:
• Fiber Optic Telecommunications
• LAN (Local Area Network)
• FTTH (Fiber To The Home)
• CATV&CCTV System
• High speed transmission systems
• Fiber optic sensing
• Industtial, Mechanical and Military
Specification:
| Parameter | Unit | SC | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥55 | ≥30 |
| Exchange ability | dB | ≤0.2 | |||
| Repeat ability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | ℃ | -40~75 | |||
| Storage Temperature | ℃ | -45~85 | |||
FAQ
Q: Are you manufacturer?
A: Faso Photonics Technology Limited is a very professional manufacturer for fiber optic cable since 2007.
We can control your order from the first begining to the last.
Q: Why choose us?
A: Quality product (RoHs, CE FCC compliance): Competitive price: Custom made products:
1-20 years warranty: Fast delivery with bulk order: Intemnational shipping: ISO 9001 Certified factory.
Q: How can I get your price list?
A: Please offer us your request details and contact info. We will contact with you and pass our
quotation sheet to you.
Q: How can I get some samples?
A: We offer free samples for most of products. But you should pay the shipping cost.
Q: What about delivery time?
A: The delivery of most product is 3-7days, some few product is 7- 10 days.
