FC Series Fiber Patch cords
FC Series Fiber Patch cords

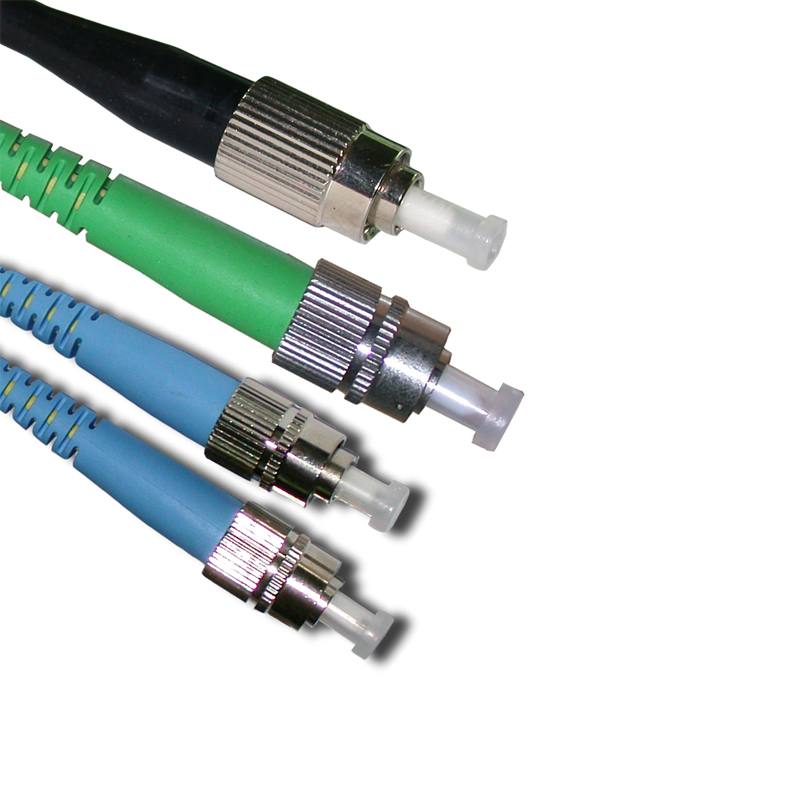

The cylindrical non-slip surface of the fc cord connector allows for fast and easy installation. And the keyed threaded metallic coupling provides durable and reliable connections. A spring loaded, pull-proof zirconia ferrule optimizes performance and prevents rotational damage during mating and disconnections. Standard boot colors are green (angled single-mode),blue (single-mode), and white (multimode).
Compliance: IEC-61754-4/TIA 604-3/Telcordia GR-326-core
APPLICATION:
ODF of optical transmission system
Connection of optical transmission equipments
Telecommunication network
Computer network
CATV
High quality graphic transmission network
High speed data transmission network
FEATURES:
Quick, highly repetable, low-loss connections
Simplex and duplex
Singlemode and multimode
PC and APC polishing
Various boot(cable) sizeds available
Various connectors available
Interferential parameters
Hybrid patch-cords are available upon request
SPECIFICATION:
Connector type |
| FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc. | ||
Cable Length | m | 1, 2, 3, 5, 10 (±10mm) | ||
Cable diameter | mm | 3.0, 2.0, 0.9 | ||
Operating wavelength | nm | 1310, 1490,1550 | ||
Core Type |
| G.652, G655, G657, OM1, OM2, OM3, OM4 | ||
Ferrule End-face |
| PC | UPC | APC |
Insertion Loss | dB | ≤0,2 | ||
Max. Insertion Loss | dB | ≤0,3 | ||
Return Loss | dB | ≥45 | ≥50 | ≥55 |
Operation Temperature | C | -40 ~ +80 | ||
Core Diameter | um | 9/125, 62.5/125, 50/125 | ||
Durability |
| ≤0.1dB change, 500 Cycles | ||
Sheath Color |
| SM: Yellow, OM1/OM2: Orange, OM3: Aqua, OM4: Purple, OM5: Green, customized | ||
Package |
| Each patchcord is packaged individually and individually test certification. | ||

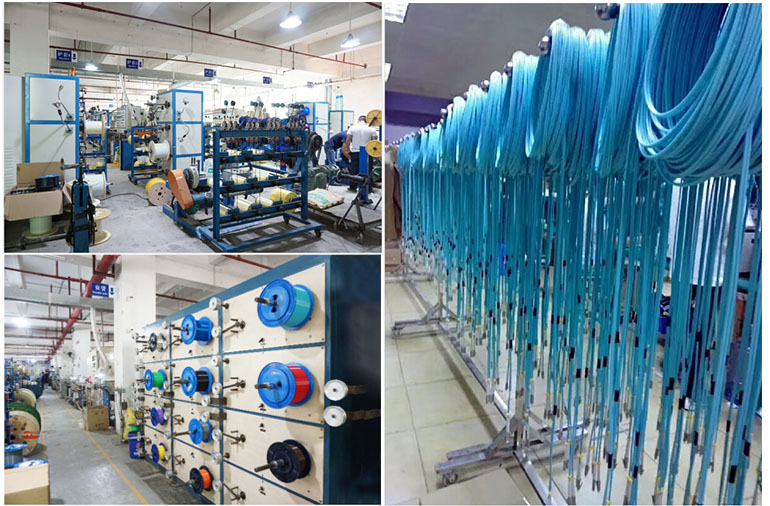

Manufacturing
We have majority of advanced equipment，ample space, high-tech public person, strict quality inspection which can provide a large number of high-quality products.
Testing
All products have passed professional tests in order to providing better quality guarentee.
