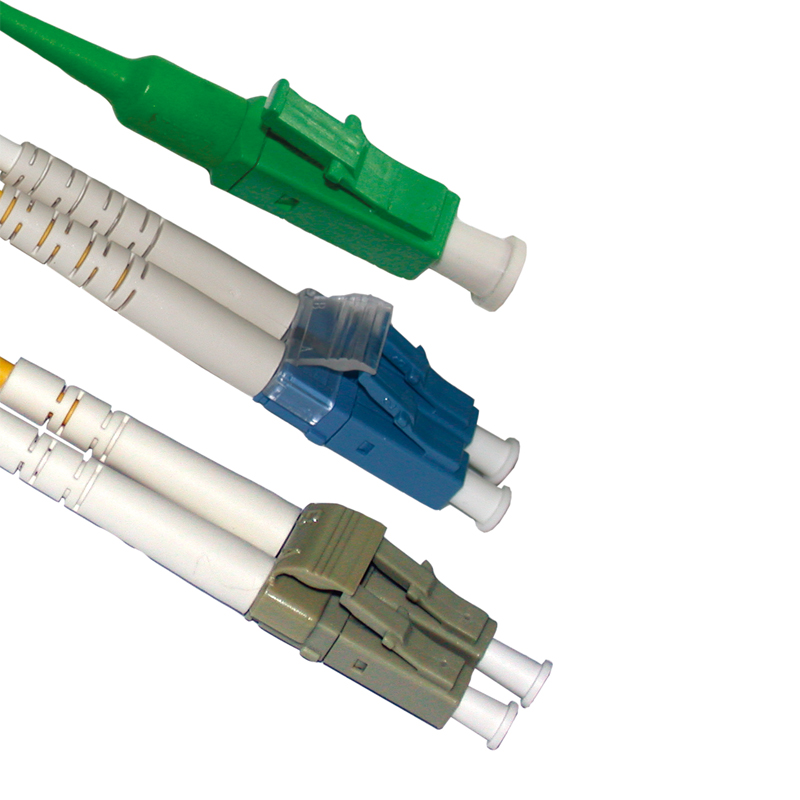

LC Series Fiber Patch cords
LC Series Fiber Patch cords
These three areas all contribute to the performance of lc cord, but above all the manufacturing process defines the performance of the assembly. The LC connector was the first small form factor connector on the market. The use of a high performance 1.25mm ferrule gives the connector extremely high performance. LC connector comprises of a polymer body and a ceramic ferrule/sring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for 900um and 2mm cables.
Compliance: IEC-61754-4/TIA 604-3/Telcordia GR-326-core
APPLICATION:
ODF of optical transmission system
Connection of optical transmission equipments
Telecommunication network
Computer network
CATV
High quality graphic transmission network
High speed data transmission network
FEATURES:
Quick, highly repetable, low-loss connections
Simplex and duplex
Singlemode and multimode
PC and APC polishing
Various boot(cable) sizeds available
Various connectors available
Interferential parameters
Hybrid patch-cords are available upon request
SPECIFICATION:
Connector type |
| FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc. | ||
Cable Length | m | 1, 2, 3, 5, 10 (±10mm) | ||
Cable diameter | mm | 3.0, 2.0, 0.9 | ||
Operating wavelength | nm | 1310, 1490,1550 | ||
Core Type |
| G.652, G655, G657, OM1, OM2, OM3, OM4 | ||
Ferrule End-face |
| PC | UPC | APC |
Insertion Loss | dB | ≤0,2 | ||
Max. Insertion Loss | dB | ≤0,3 | ||
Return Loss | dB | ≥45 | ≥50 | ≥55 |
Operation Temperature | C | -40 ~ +80 | ||
Core Diameter | um | 9/125, 62.5/125, 50/125 | ||
Durability |
| ≤0.1dB change, 500 Cycles | ||
Sheath Color |
| SM: Yellow, OM1/OM2: Orange, OM3: Aqua, OM4: Purple, OM5: Green, customized | ||
Package |
| Each patchcord is packaged individually and individually test certification. | ||
FAQ
Q: Are you manufacturer?
A: Faso Photonics Technology Limited is a very professional manufacturer for fiber optic cable since 2007.
We can control your order from the first begining to the last.
Q: Why choose us?
A: Quality product (RoHs, CE FCC compliance): Competitive price: Custom made products:
1-20 years warranty: Fast delivery with bulk order: Intemnational shipping: ISO 9001 Certified factory.
Q: How can I get your price list?
A: Please offer us your request details and contact info. We will contact with you and pass our
quotation sheet to you.
Q: How can I get some samples?
A: We offer free samples for most of products. But you should pay the shipping cost.
Q: What about delivery time?
A: The delivery of most product is 3-7days, some few product is 7- 10 days.
